UNLOCK PRECISION & EFFICIENCY

WITH 5 AXIS CNC ROUTERS

What Is A 5 Axis CNC Routers ?

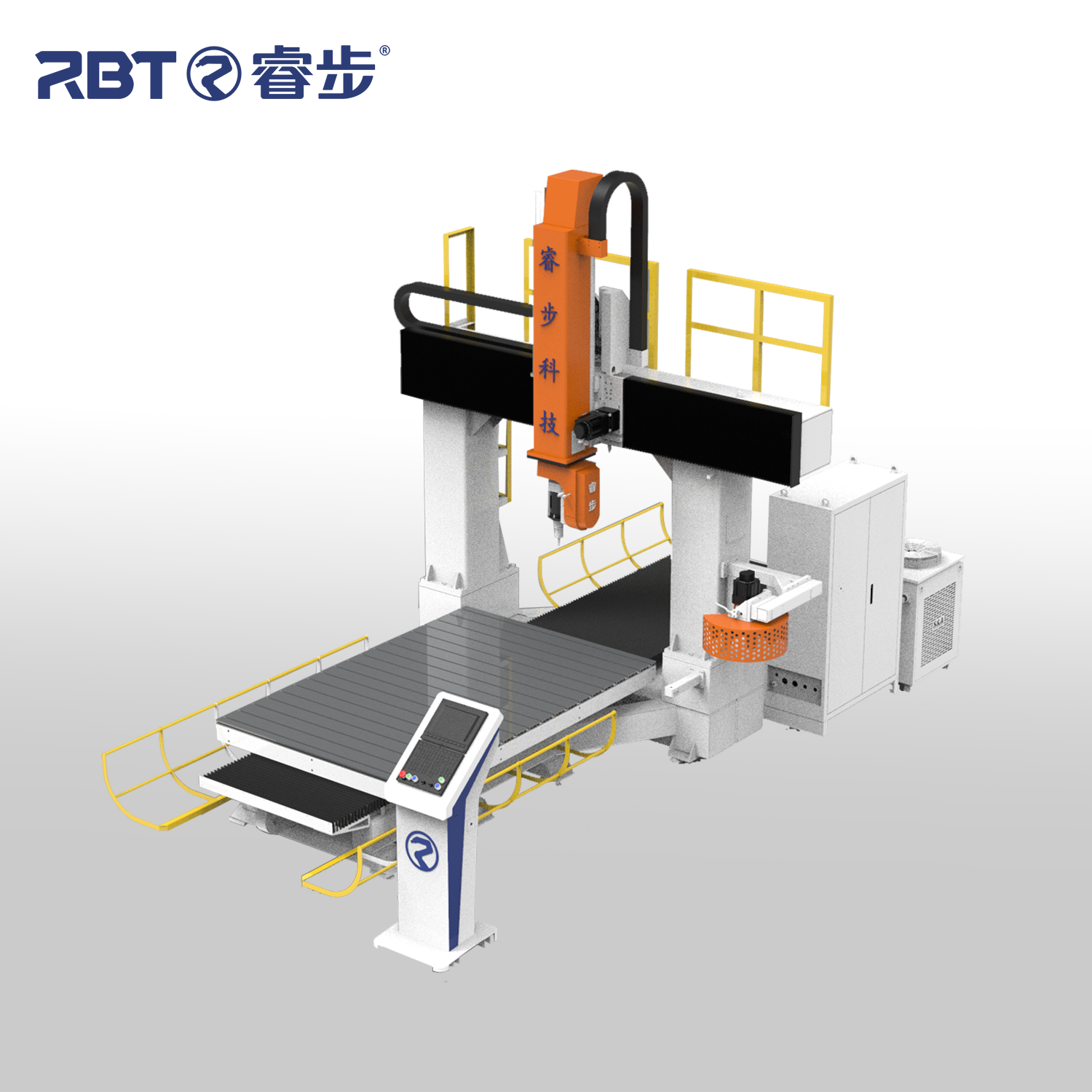

Introduction To Our 5-Axis CNC Router

Our 5-Axis CNC Router is a cutting-edge manufacturing solution designed to revolutionize the precision and efficiency of plastic or composite material structural parts production processes. This advanced machine is capable of maneuvering a cutting tool in five distinct axes simultaneously, offering unparalleled flexibility and accuracy in machining operations.

Why Choose Our 5-Axis CNC Router?

Precision Engineering: Our machine is designed to deliver the highest level of precision, ensuring that every part is machined to exact specifications.

Increased Productivity: By reducing setup times and eliminating the need for multiple machining operations, our 5-Axis CNC Router maximizes productivity and minimizes downtime.
Versatility: With the ability to process a wide range of materials and handle complex geometries, our machine is a versatile solution for various industries.
Cost-Effective: The combination of increased efficiency and reduced labor costs makes our 5-Axis CNC Router a cost-effective investment for your manufacturing needs.

Advantages Of 5 Axis CNC Routers In Manufacturing

How It Works

The 5-Axis CNC Router operates by driving the cutting tool to move around the workpiece in five coordinated axes. This allows for complex three-dimensional movements, enabling the machine to handle intricate and detailed machining tasks. The inclusion of two rotational axes (A and B or A and C) provides comprehensive access to the workpiece, reducing the need for secondary operations and ensuring that even the most complex parts can be machined with ease.

Key Features And Advantages

Multidirectional Machining Capabilities

Unlike traditional 3-axis CNC machines, our 5-Axis CNC Router can rotate on two additional axes (B and C). This allows the cutting tool to approach the workpiece from multiple directions, enabling the machining of complex geometries in a single setup. This is particularly beneficial for industries such as automotive, aerospace, and energy, where intricate and high-precision parts are required.

Enhanced Production Efficiency

With the ability to perform all cutting, trimming, and milling processes in a single clamping, our 5-Axis CNC Router significantly reduces the need for repositioning and re-clamping of workpieces. This not only increases production accuracy and enhances product quality but also drastically shortens machining cycle times, leading to higher overall production efficiency and reduced labor costs.

Superior Precision And Flexibility

The simultaneous control of five axes provides greater precision and flexibility in machining operations. This advanced capability allows for the completion of complex machining tasks in one go, which is a significant improvement over traditional three-axis machining. The machine can achieve delicate and intricate operations, such as inclined milling and surface machining, making it ideal for manufacturing complex and precision parts.

Wide Range Of Applications

Our 5-Axis CNC Router is versatile and can be used across various industries, including automotive (both interior and exterior parts), aerospace, railway, energy, building, marine, medical, packaging, molds, and sanitary ware. It is capable of processing a wide range of materials, such as composite materials (carbon fiber, glass fiber), thermoformed plastics (ABS, PVC, PC, PP, PS, PE, PET, HDPE, PETG, Acrylic), and soft metals (aluminum, copper, zinc).

High-Quality Surface Finishes

The advanced five-axis linkage movement of our machine ensures high-quality surface finishes. This is crucial for industries where aesthetic and functional surface quality are paramount, such as automotive interiors and exteriors, aerospace components, and medical devices.

Applications Of 5 Axis CNC Routers

Aerospace Industry

In the aerospace industry, the 5-Axis CNC Router plays a crucial role in manufacturing complex and high-precision structural parts. It is used to create intricate parts such as aircraft engine components, wing structures, and fuselage sections. The ability to achieve high accuracy and surface quality is essential for ensuring the reliability and safety of aerospace parts. The 5-Axis CNC Router can handle materials like titanium alloys, aluminum, carbon fiber, glass fiber, GFRP, CFRP and composite materials, which are commonly used in this industry due to their strength-to-weight ratios and durability.
Railway Industry

For the railway industry, particularly in the manufacturing of high-speed trains and locomotives, the 5-Axis CNC Router is vital for producing precision-engineered parts. It is used to create components such as train bogies, structural frames, and interior fittings. The machine’s ability to handle large and complex geometries ensures that parts fit perfectly, enhancing the overall performance and safety of railway vehicles. The 5-Axis CNC Router also helps in reducing production time and improving the efficiency of manufacturing processes, which is critical for meeting the high demands of the railway industry.
Automotive Industry

In the automotive sector such as EVs, cars ,buses, the 5-Axis CNC Router is extensively used for both interior and exterior parts. For exterior components, it can produce intricate body panels, bumpers, and other decorative elements with high precision and surface finish. For interior parts, it can create complex dashboard components, seat frames, and other detailed elements that require high accuracy and aesthetic appeal. The machine’s ability to handle a variety of materials, including plastics, composites, and metals, makes it a versatile tool for automotive manufacturing. It also helps in reducing production costs and improving the overall quality of automotive parts.
Mold Making Industry

The mold-making industry relies heavily on the 5-Axis CNC Router for creating high-precision molds and dies. These molds are used in various manufacturing processes, including injection molding, die casting, and stamping. The 5-Axis CNC Router’s ability to achieve complex geometries and high surface finishes is crucial for producing molds that can withstand high pressures and temperatures. The machine ensures that molds are manufactured with high accuracy, which translates to better quality and consistency in the final products. This is essential for industries that require precision and repeatability, such as automotive, aerospace, and consumer electronics.

Choosing The Right 5 Axis CNC Routers

5 axis Gantry Machining Center for Light Alloy

5 Axis Gantry Mill for CNC Machining

5 Axis CNC Machine

5 Axis Cnc Machining for Plastic, Composite, Wood Or Aluminum Parts

8 station CNC Grinding, Peeling, Carving and Milling Machine for Faucet production

5 axis CNC router for Aluminum mold machining

Rbt 5 Axis CNC Router for Thermoforming Plastic Vacuum Formed Parts CE approved

Carbon Fiber Padel Racket CNC Drilling Machine

About RBT Machine - Leading 5 Axis CNC Routers Manufacturer

Summary of 5-Axis CNC Router Services and Advantages by Fujian RBT Intelligent Equipment Co., Ltd.

Fujian RBT Intelligent Equipment Co., Ltd. specializes in providing advanced 5-Axis CNC Routers, designed for high-precision machining across various industries.

Core Services

5-Axis CNC Routers
High-Precision Machining: Ideal for complex geometries in industries such as aerospace, automotive, railway, and mold-making.
Versatile Applications: Suitable for a wide range of materials, including thermoformed plastics, composite parts, aluminum, and soft metals.

Custom Solutions
Tailored to meet specific customer needs, ensuring optimized performance for unique requirements.

Comprehensive Support
R&D and Design: Advanced R&D capabilities to stay at the forefront of technological innovation.
Production: High-quality manufacturing processes for reliable and durable machines.
After-Sales Service: Installation, training, and maintenance support to ensure long-term machine performance.

Advantages

Core Values
Integrity And Quality: Commitment to honesty, transparency, and high-quality products.
Customer Focus: Prioritizing customer needs and ensuring satisfaction through reliable products and services.

Innovation And Flexibility
Continuous innovation to develop advanced solutions that meet diverse industry demands.
Versatile machines capable of handling multiple materials and applications, providing flexibility for various manufacturing needs.

Industry Leadership
Promoting the universal application of 5-Axis CNC machining centers to enhance productivity and efficiency across industries.

In summary, RBT's 5-Axis CNC Routers offer precision, versatility, and comprehensive support, making them ideal for complex machining tasks in multiple industries.

PRODUCT INQUIRY >

Frequently Asked Questions

These FAQs are designed to address common concerns and provide valuable insights into the capabilities and

benefits of RBT's 5-Axis CNC Routers.

What is a 5-Axis CNC Router and how does it differ from a 3-Axis CNC Router?

A5-Axis CNC Router is a machine that can move a cutting tool in five distinct axes simultaneously (X, Y, Z, A, and B or C). This allows for multidirectional machining and the ability to handle complex geometries in a single setup. Unlike a 3-Axis CNC Router, which is limited to linear movements along the X, Y, and Z axes, a 5-Axis CNC Router can rotate the tool or workpiece, enabling more intricate and precise machining. This reduces the need for repositioning and re-clamping, thereby increasing efficiency and accuracy.
What are the main advantages of using a 5-Axis CNC Router?

The main advantages of a 5-Axis CNC Router include:
Increased Precision: Achieves higher accuracy and surface quality.
Enhanced Flexibility: Can handle complex and intricate parts with ease.
Reduced Cycle Time: Completes machining tasks in fewer setups, reducing overall production time.
Cost Savings: Minimizes labor costs and eliminates the need for secondary operations.
Versatility: Suitable for a wide range of materials and applications.
What materials can a 5-Axis CNC Router process?

A5-Axis CNC Router can process a variety of materials, including:
Composite Materials: Carbon fiber, glass fiber, SMC, LFT, aramid fiber honeycomb, etc.
Thermoformed Plastics: ABS, PVC, PC, PP, PS, PE, PET, HDPE, PETG, Acrylic, etc.
Soft Metals: Aluminum, copper, zinc, and aluminum alloys.
Other Materials: Wood, MDF, plaster, resin, and more.
In which industries is a 5-Axis CNC Router most commonly used?

A5-Axis CNC Router is widely used in several industries, including:
Aerospace: For manufacturing complex aircraft components.
Automotive: For producing intricate interior and exterior parts.
Railway: For creating structural parts and interior fittings for high-speed trains.
Mold Making: For producing high-precision molds and dies.
Energy and Building: For machining components used in renewable energy and construction.
How does a 5-Axis CNC Router improve production efficiency?

A5-Axis CNC Router improves production efficiency by:
Reducing Setup Time: Completing complex machining tasks in a single setup.
Minimizing Human Error: Automated processes ensure consistent quality.
Enhancing Machine Utilization: The ability to handle multiple operations reduces downtime.
Lowering Labor Costs: Requires fewer operators and less manual intervention.
What kind of after-sales support does RBT provide for its 5-Axis CNC Routers?

RBT offers comprehensive after-sales support for its 5-Axis CNC Routers, including:
Installation and Commissioning: Professional installation and setup services.
Training: Detailed training sessions for operators and maintenance personnel.
Technical Support: Ongoing technical assistance and troubleshooting.
Maintenance Services: Regular maintenance and repair services to ensure machine longevity.
Spares and Consumables: Supply of genuine spare parts and consumables.

Get In Touch For 5-Axis CNC Router Solutions
