High Speed 5 Axis CNC Router for Composite and Plastic Machining

Achieve precise machining on non-metal materials with our 5-axis CNC router. Ideal for composite, plastic, and carbon fiber materials. Boost productivity and accuracy with dual head functionality. Unlock limitless design possibilities.
Availability:
Quantity:
  • RB-F10-4057-Z09

  • RBT

RB-F10-4057-Z09


Product Description


Designed for high-efficiency precision machining of non-metallic materials, its dual-head synchronization technology doubles productivity for symmetrical components. Equipped with advanced positioning, automatic tool change, and multi-functional configurations, it streamlines complex workpiece processing. Customizable workflows and modular design adapt to diverse industrial demands, including aerospace applications. Robust temperature control and stable performance ensure reliability in challenging production environments.

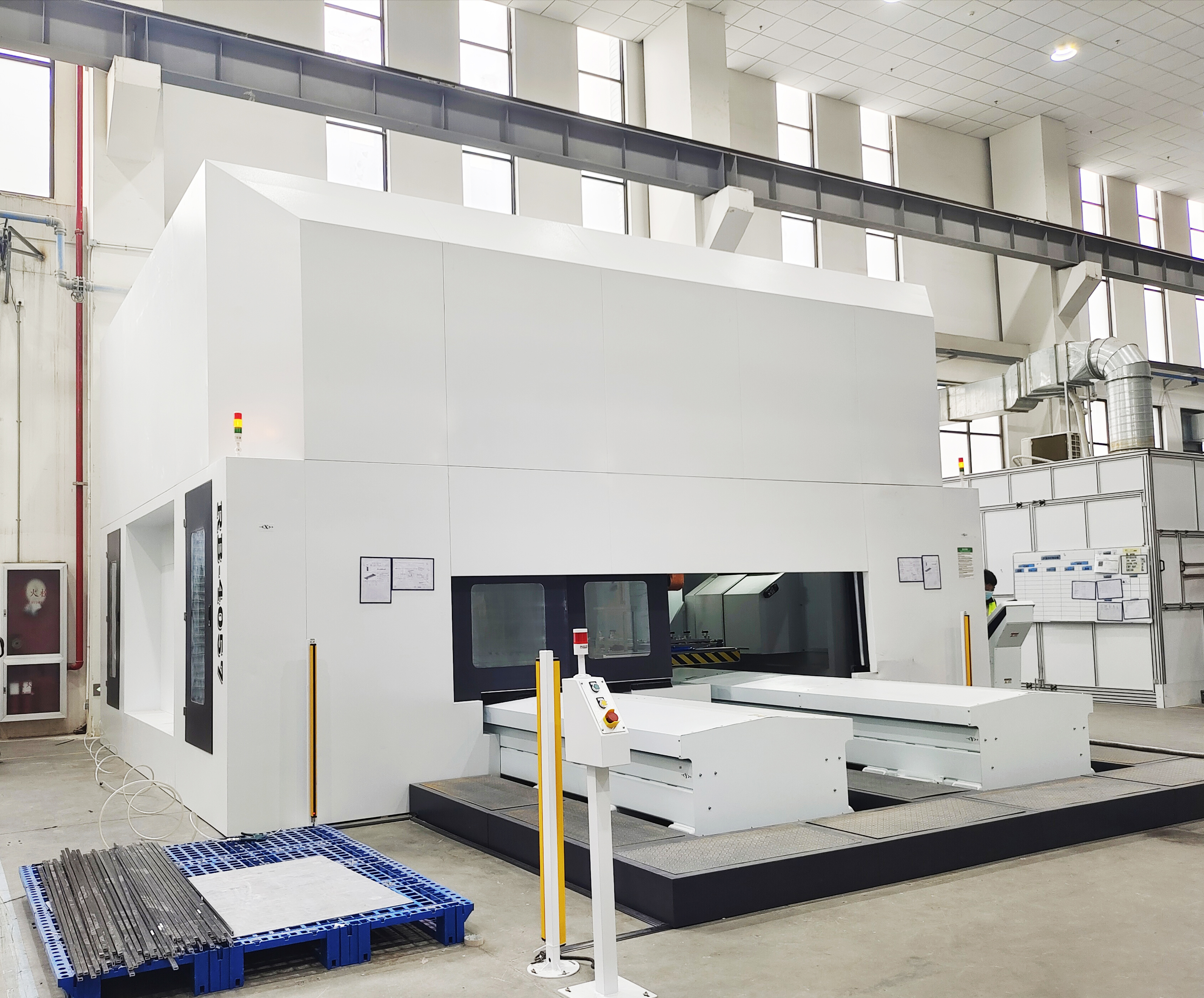

微信图片_20240202101117

Machine Video

Product Features

  1. The system adopts the Syntec five-axis linkage CNC system, which can complete the production and processing ofthe entire complex surface of the workpiece in one process;

  2. The work is easy to clamp and no special fixture is needed;

  3. C, B-axis rotary processing can reduce the processing dead angle of complex workpieces;

  4. High processing precision, efficient and accurate positioning;

  5. The equipment combines power, speed and precision, and can be equipped with multiple functions such as dust collection, automatic tool change and RTCP.

  6. Two worktables can be combined into a group and two machining heads interlck forlarge parts processing.Two machining heads can do the processing at thesametime which can areatly imorove the processing efliciencyofsymmetical pars.ltcan also independently process diferentwotkpieces with a single worktableand a sinale machining head, and the switch of the worktable can cary out uninterrupted step processing of two diferent products, which is equivalent to havingtwo five axis machining centers at the same time.

  7. The actualconfguration ofthe eoviomentis subiectto the technicaldata, The machine travelican be customized according to the needs ofcustomers.

Product Parameters

Content Parameter Content Parameter
  Name
Two-head 5 axis CNC Machine
 Brand
RBT
 Model RB-F10-4057-Z09 Voltage 3-380V
X/Y/Z  Axis Travel 4000*5700*900mm  Machine rated power 19.15KW~31KW
C/B Axis Travel ±540°/±130°  Weight 15000KG
 Spindle power 8.5~20KW  Dimension L9000*W6800*H4250mm
 Control system
Taiwan*SYNTEC
Machine Origin
Guangdong / Fujian



Detailed Photos


What is The Best CNC Router for My Business?

Application

Mould manufacturing plays a key role in many industries, including but not limited to aerospace, rail transportation, automotive interior and exterior, sports equipment, medical and cosmetic equipment, home appliances (especially white goods), craft gifts and sanitary ware.

Why Choose RBT CNC Router?


Machine Picture Show

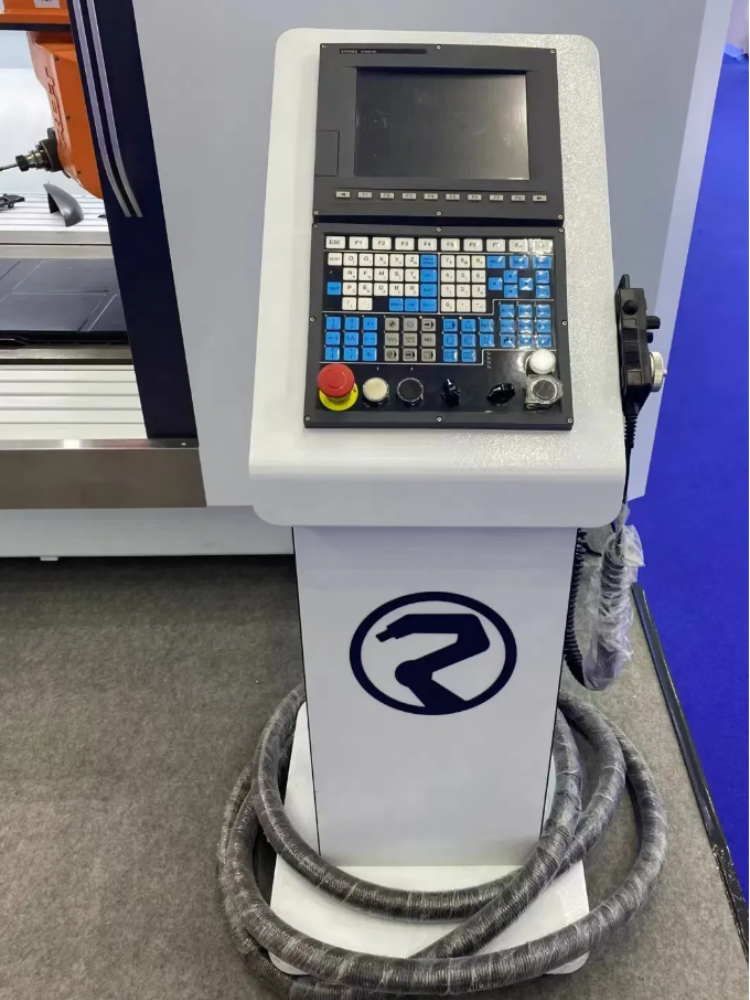

微信图片_20250521125003

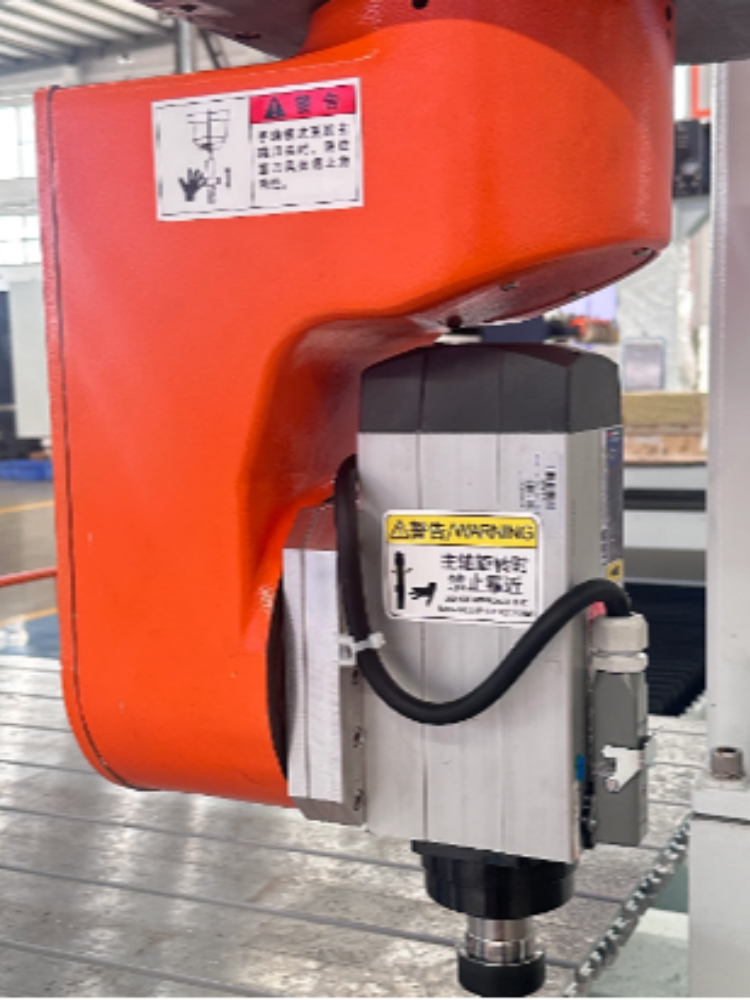

微信图片_20250521153419

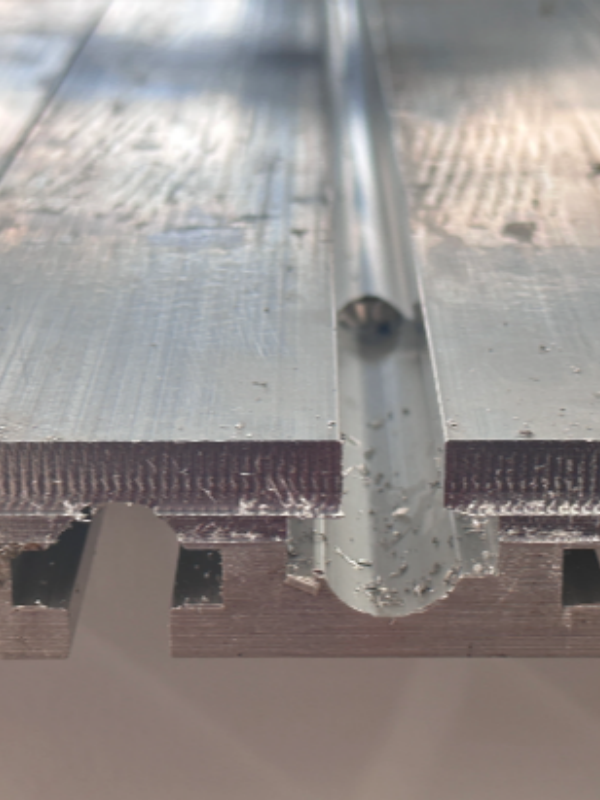

微信图片_20250521153521

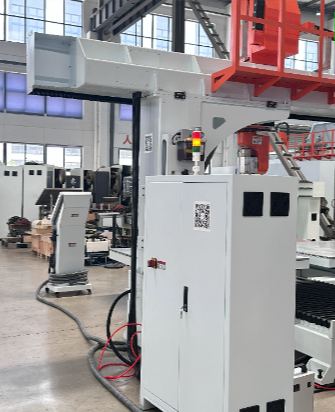

微信图片_20250521153451

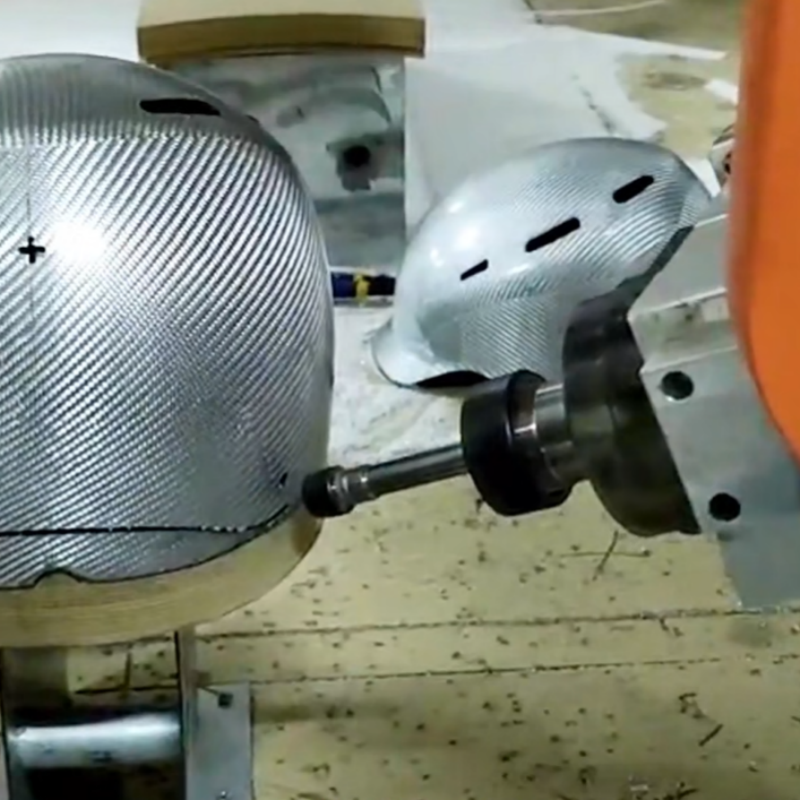

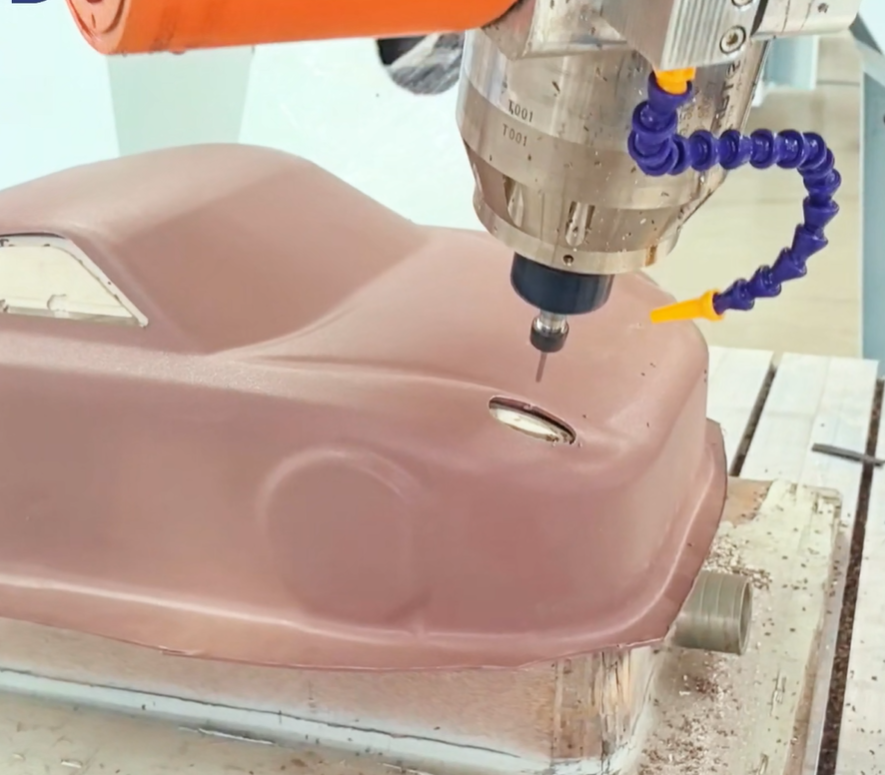

Working Projects Show

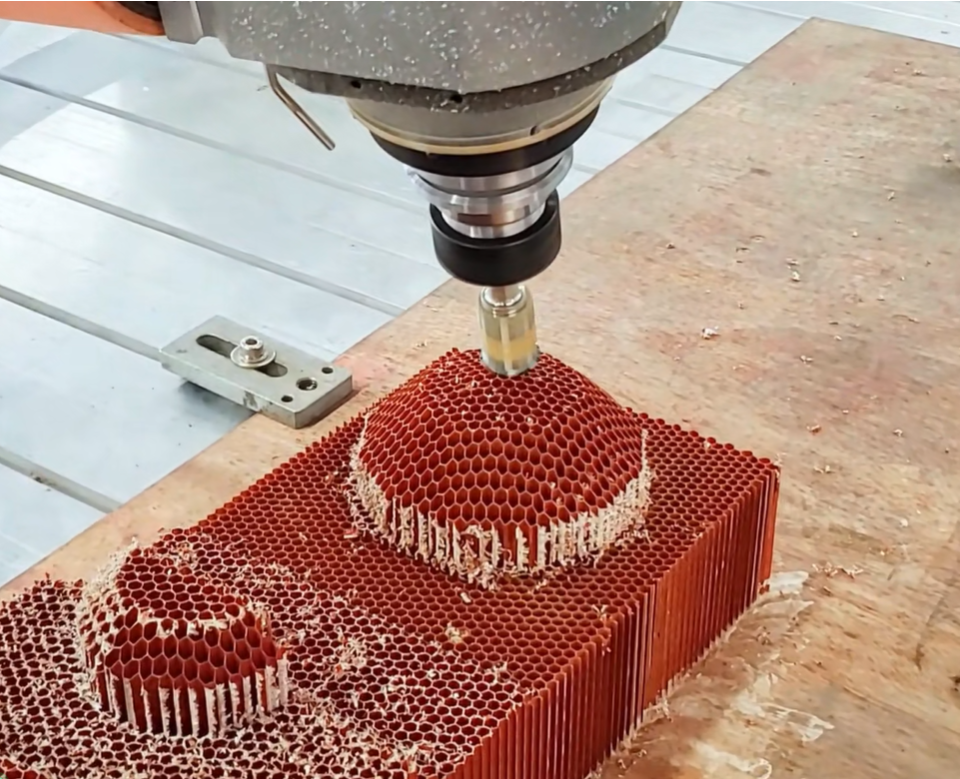

微信图片_20250521160428


微信图片_20250521160902

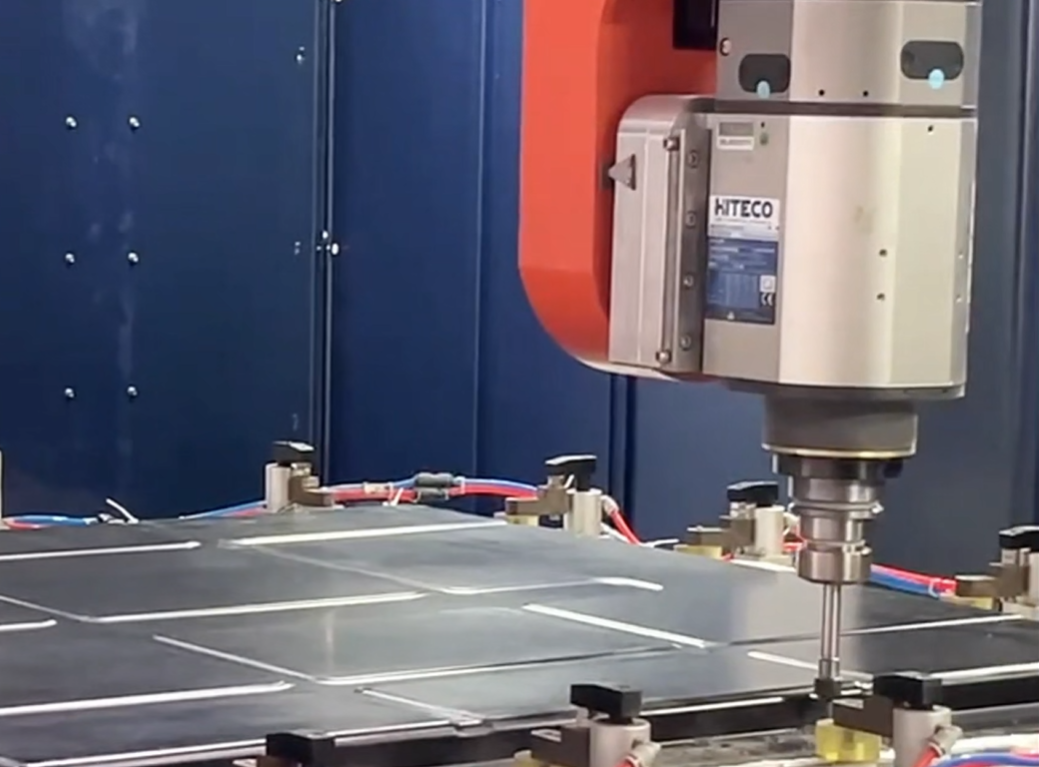

微信图片_20250521160646


微信图片_20250521161026

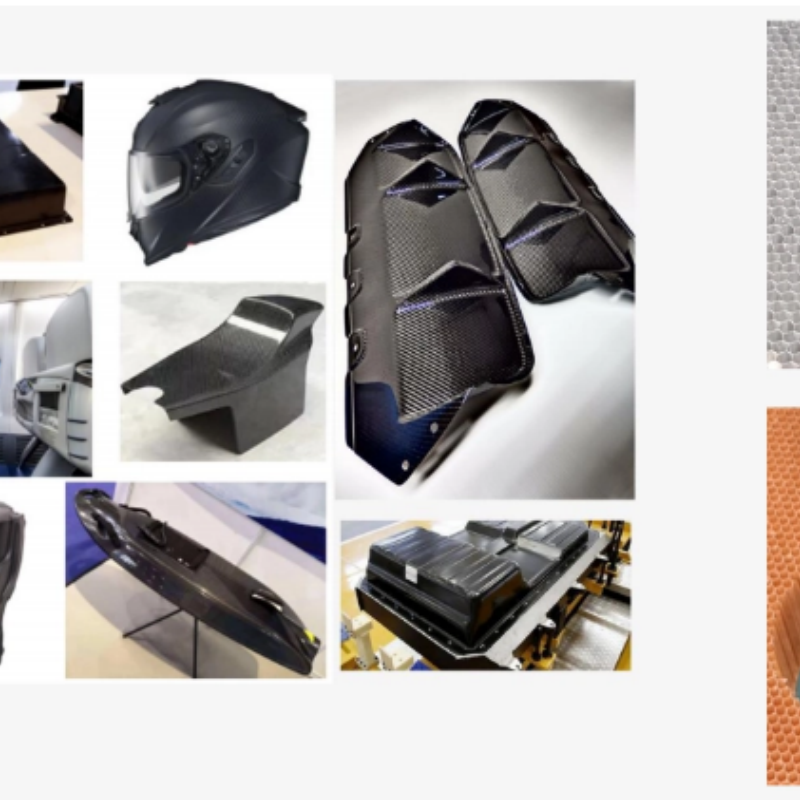

Widely used in


Material composite technology covers a variety of materials, including carbon fiber composites (such as PCM, RTM, SMC, LFT, etc.), glass fiber, carbon-carbon composites, glass fiber reinforced plastics, aramid fiber honeycomb structures, aluminum honeycombs, honeycomb sandwich panels, polystyrene foam, EPS (expandable polystyrene), wood, medium-density fiberboard (MDF), gypsum and various resin materials.

Thermoplastic plastic molding includes ABS, PVC, polycarbonate (PC), polypropylene (PP), polystyrene (PS), polyethylene (PE), polyethylene terephthalate (PET), high-density polyethylene (HDPE), polyethylene glycol-modified polyethylene terephthalate (PETG) and acrylic.

In terms of soft metal processing, the materials involved include aluminum, copper, zinc and aluminum molds.

微信图片_12


微信图片_18


微信图片_58
