Unlocking New Possibilities with Non-Metal Truss Type 5-Axis CNC Machines

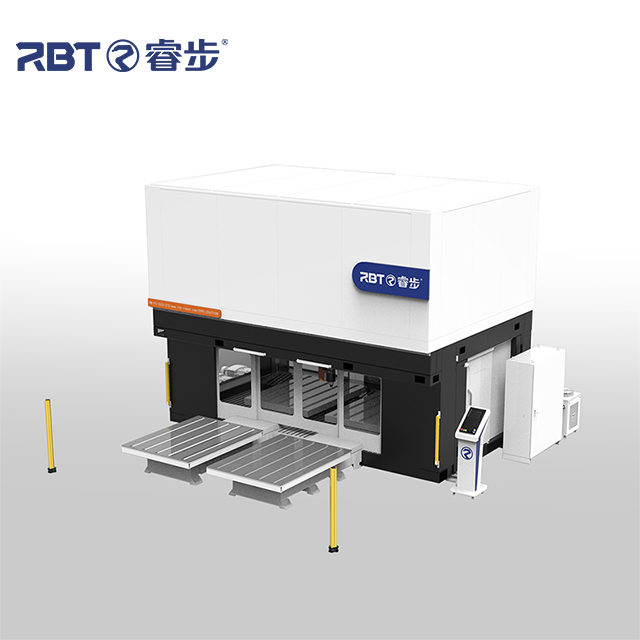

The Rotary Twin Table 5-Axis CNC Machine represents a cutting-edge manufacturing solution that combines dual rotating worktables with advanced 5-axis machining capabilities. This innovative design is aimed at maximizing efficiency and expanding the range of applications in various production processes.
This high-performance CNC machine features two separate, independently rotating worktables, which enable simultaneous part setup and machining operations. This unique configuration allows for continuous production flow, as one worktable can be used for machining while the other is being loaded or unloaded, thereby significantly reducing downtime and boosting overall productivity. Additionally, the 5-axis machining capability offers unparalleled flexibility, enabling the precise machining of complex geometries that would be challenging or unattainable with conventional 3-axis machines.

Availability:

Quantity:



Inquire Add to Basket

Model:
RB-H5-3626-z12
Brand:
RBT
Code:
8465990000

Product Description

Advantages of 5-Axis CNC Router

Rotary Twin Table

Dual rotating tables enable continuous workflow, allowing one table to be machined while the other is loaded/unloaded, maximizing efficiency.

5-Axis Capability

Achieves complex machining with precise movements along X, Y, and Z axes, plus rotation around B and C axes for versatile operations.

High Precision

Tailored for industries requiring intricate, detailed work with tight tolerances, ensuring high-quality results.

Electric Spindl

Equipped with special ceramic bearings and proprietary grease, preventing oil leaks and ensuring high-speed, reliable machining. Liquid cooling system supports non-stop 24-hour operation. Options include RBT’s own spindles or premium imported ones (e.g., HSM, Hiteco, HSD).

Automated Tool Change (ATC）

8–24 clamp tool magazine for rapid tool changes, reducing downtime and boosting productivity.

User-Friendly CNC System

Taiwan Syntec CNC system with intuitive programming and operation, featuring RTCP function for enhanced control.

Dust Collection

Truss-type double table and protective enclosure ensure safety and debris prevention. Fully closed design integrates seamlessly with high-performance dust collectors for efficient debris management.

Versatility

Compatible with a wide range of materials, including metal, wood, composites, plastic, resin, plaster, paper, and aluminum honeycomb.

Ideal for Key Industrie

Perfect for aerospace, automotive, medical, and high-end woodworking sectors, where precision, detail, and efficiency are essential.

4714DF45-D17C-446e-AB2C-9AF403248C30

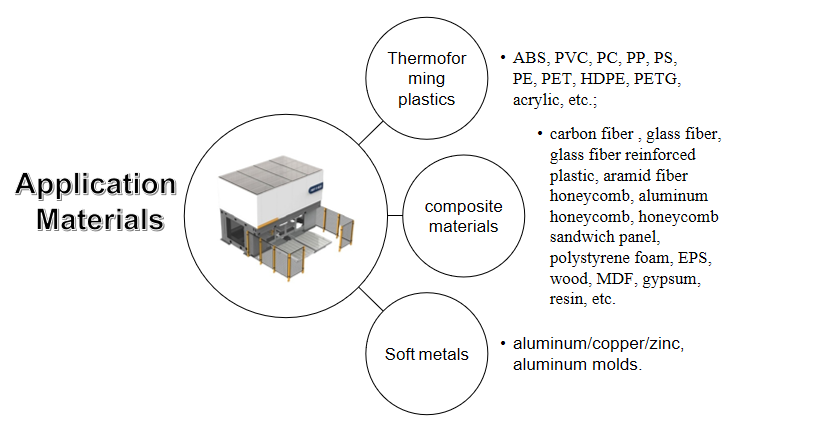

Applicable industries and materials

应用领域 Industries： The machine is widely used in mold manufacturing, composite material processing, and thick sheet thermoforming. It serves various sectors such as aerospace, rail transit, automotive (both interior and exterior), energy and building, marine, packaging, medical, patterns and molds, and sanitary ware.

9CC11D51-7552-49e7-81EC-A8FB2A7F650B

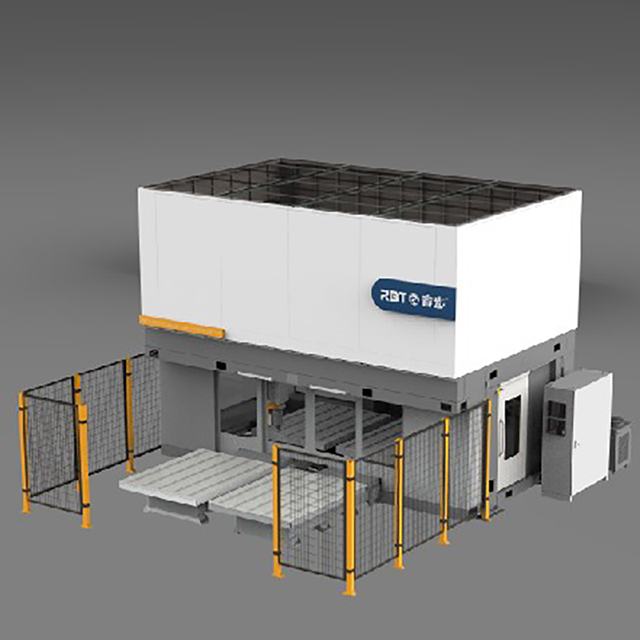

This advanced CNC machine features dual independent rotating worktables, enabling simultaneous part setup and machining. This setup dramatically cuts production time and boosts output. As one table processes, the other can load/unload, ensuring continuous workflow. The 5-axis capability allows for machining complex geometries that are challenging or unachievable with conventional 3-axis machines.
