Factory Machinery Truss Type 5 Axis Cnc Router With RTCP For Composite Material Parts

5-axis cnc machine, semi-closed protection design, truss double Y, Z, C, B six axes composed of double swing head 5-axis machining body, to meet the 5-hedral and arbitrary curved surface processing.

Rated Power:	16.3-30.8KW
Weight:	7000KG
X/Y/Z axis travel:	21001500800MM
Spindle Power:	5.5-20KW
Size:	L4380W3000H3400mm
Voltage:	3-380V
C/B Axis Travel:	±540°/±120°
Availability:

Quantity:



Inquire Add to Basket

Model:
RB-H5-2115--Z08
Brand:
RBT
Code:
8465990000

Product Description

RBT MACHINERY

Truss Type 5 Axis CNC Router for Carbon Fiber Billboard

Product Picture and Feature

1. The truss-type structure with protection room, fixed worktable, and semi-enclosed protection design meet the safety protection and debris prevention during production and processing. The integral floor drain dust collection device cooperates with high-performance dust collectors to process debris collect;

2.The truss double Y, X, Z, C, B six axes form a double swing head type five-axis machining body;

3. During processing, the work table does not move, and the five coordinate axes drive the tool to move around the workpiece. It can realize five-axis linkage three- dimensional movement, which can meet the processing of pentahedron and arbitrary curved surface;

4.The equipment combines power, speed and precision, and can be equipped with multiple functions such as dust collection, automatic tool change with tool magazine and RTCP;

5. The actual configuration of the equipment is subject to the technical data, The machine travel can be customized according to the needs of customers.

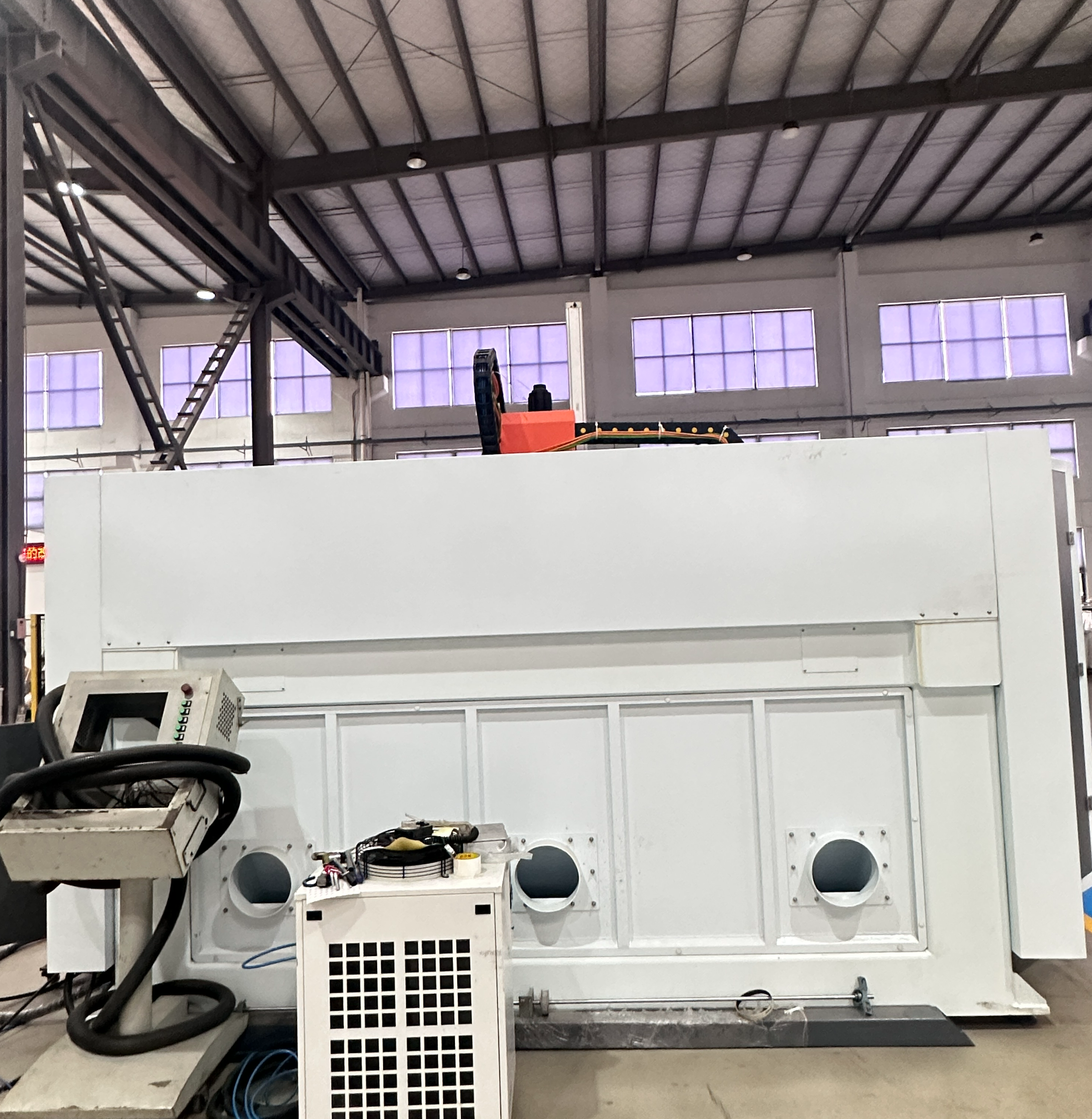

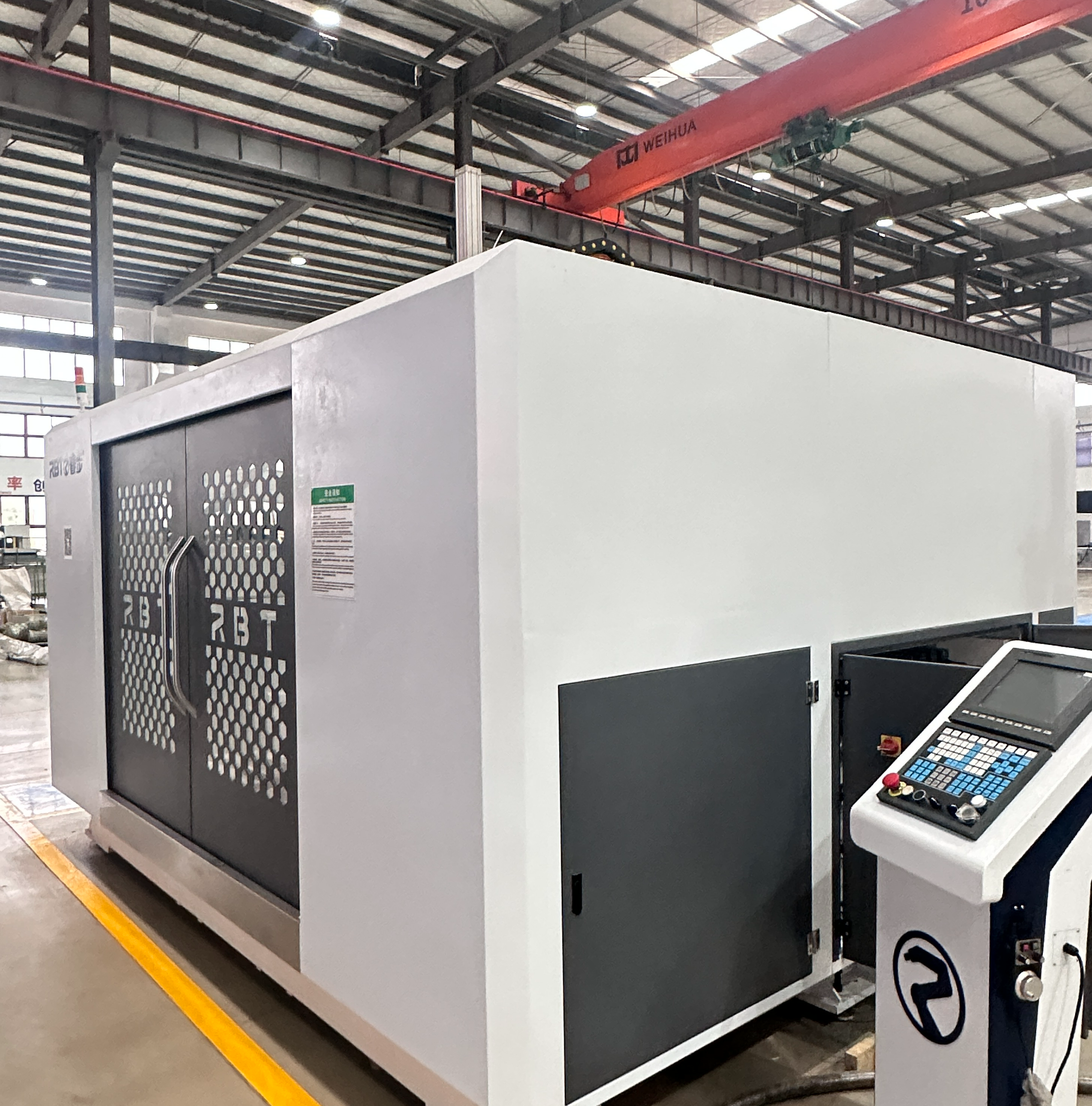

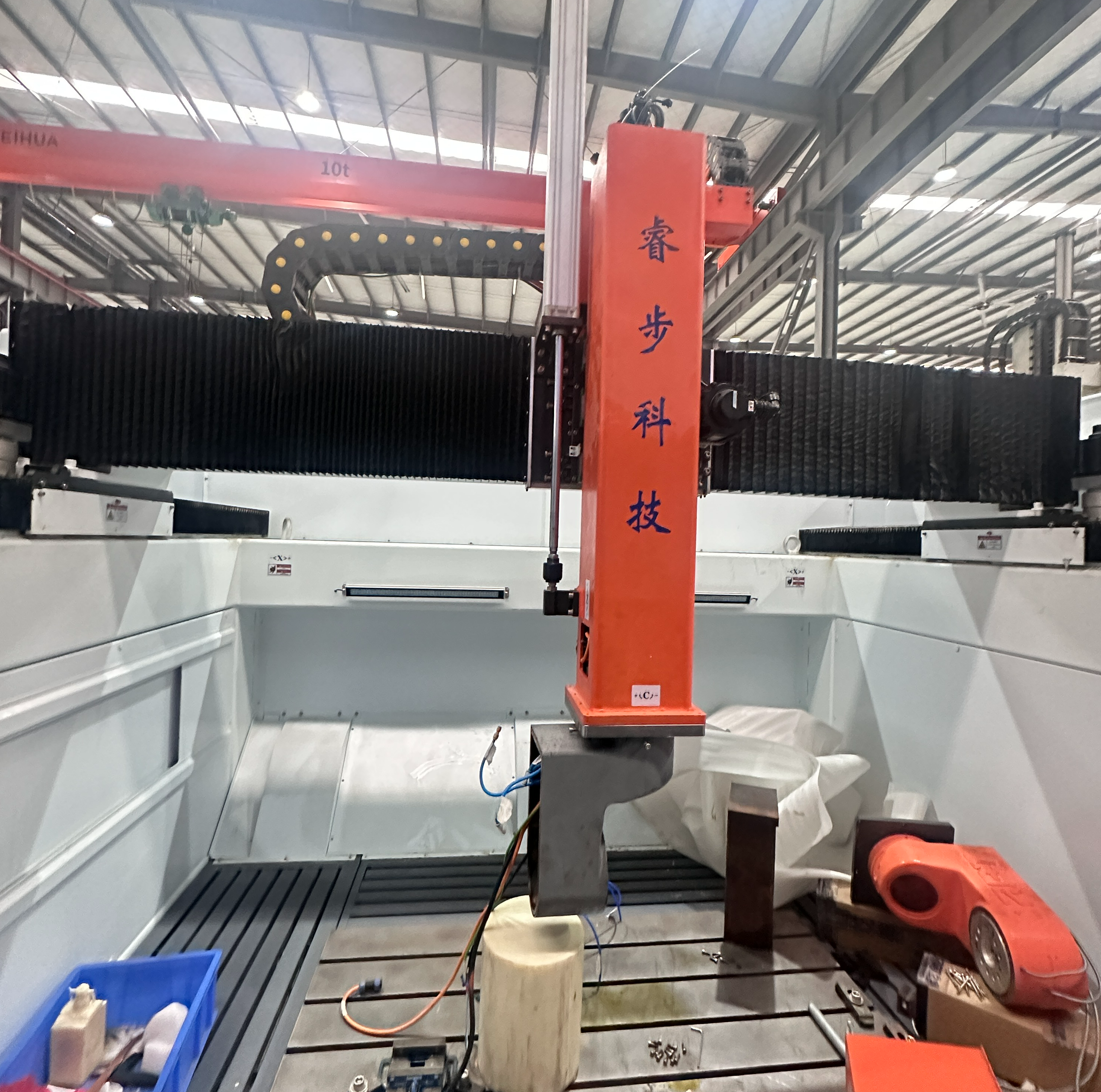

Product show

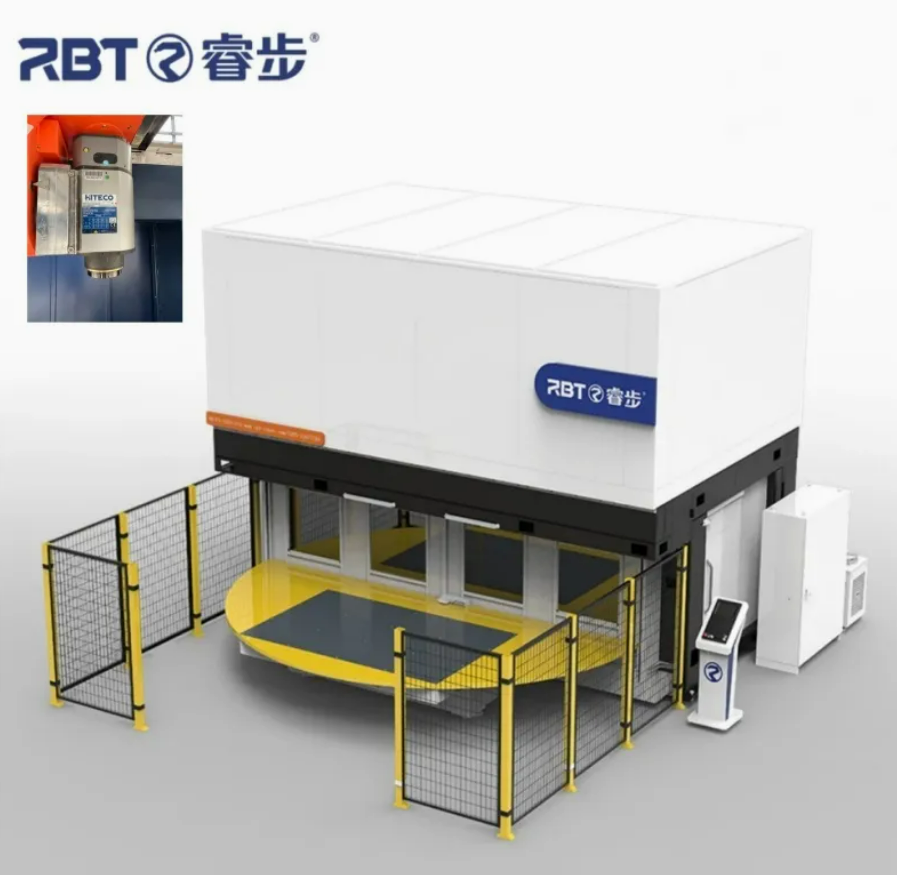

Product Style

Product parameter

Product name	Non-mental truss type 5 axis cnc machine
Screw	Taiwan TBI
Linear Guide	Taiwan CSK
Rack	Liangchi
Servo	Inovance
Control System	Taiwan SYNTEC
Electrical components	France* Schneider
Spindle	RBT
Spindle power	5.5KW/24000rpm/water cooling
Frequency converter	Sinovo
Pneumatic Components	Taiwan AirTAC
X axis reducer	Japan* SHIMPO
B-axis rotation angle	±1200
C-axis rotation angle	±540°
Machine tool repeatability (within 300mm)	±0.05mm
Total power	14.5KW(Subject to the actual equipment)
Frequency	L4380W3000H3400mm
Weight	7000KG

Product Certificates

Company Team Appearance

COMPANY PROFILE

Fujian RBT Intelligent Co., Ltd. is an integrated intelligent equipment solution provider integrating R & D, manufacturing, sales and technical services, specializing in the customization of five-axis machining center manufacturers, engaged in this industry for more than 15 years. The main products are gantry type, truss type, fully enclosed 5/6 axis machining center, double head 5 axis, 6 axis machining center and all kinds of non-standard automatic intelligent production lines.

FAQ

1. Why choose us?
As a manufacturer, RBT industrial is committed to offer not only products with high quality and performance and
competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.

2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.

3. What payment terms can you accept?
Normally 50% deposit is required in advance, 50% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.

4. What Certificates do you have?
All products meet with the ISO9001 Quality System and have acquired CE,ISO certificate.

5. How about your delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.

6. Can you provide OEM service?
RBT industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

7: How about your after sales service?
A:We will arrange our technical staffs to your factory to install machine and teach you how to operate it. During the current special period, we will offer all support online via video 24h per day. Before shipment, we will test machine from and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together.
