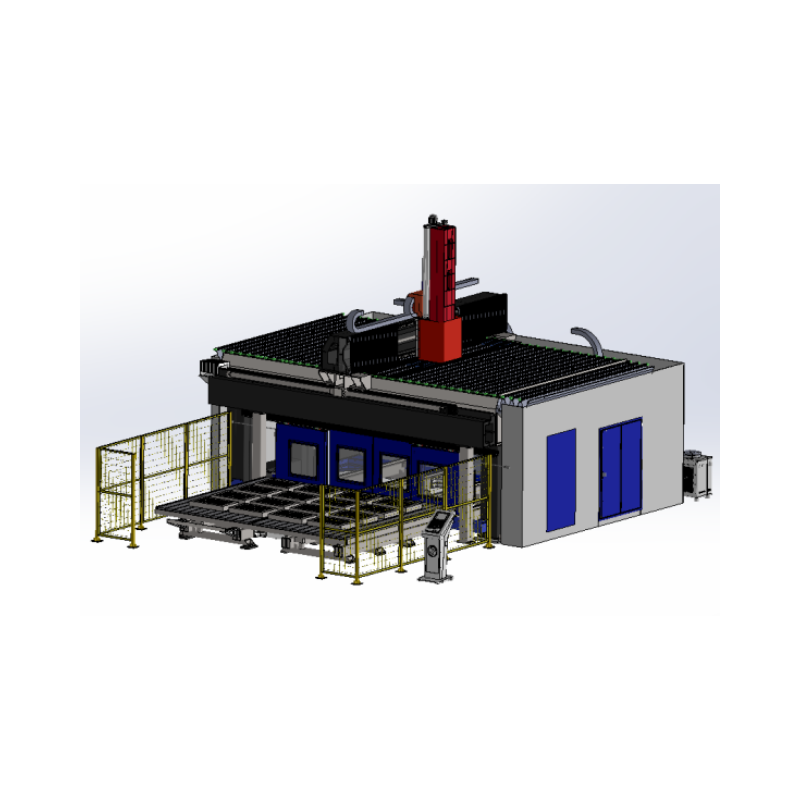

5 Axis CNC Milling Machine for Honeycomb Sandwich Panels & Core, Composites Parts

The RBT 5 Axis CNC Milling Machine is a precision machining solution developed for manufacturers working with lightweight structural materials, composite components, and honeycomb sandwich structures. It is suitable for milling, trimming, drilling, edge finishing, and complex contour machining of various composite and honeycomb products.

With its 5-axis CNC machining capability, the machine can process complex geometries and multi-angle surfaces with fewer setups, helping improve machining efficiency and dimensional consistency.

Key Features and Advantages

1. 5-Axis CNC Machining for Complex Geometries

The 5-axis machining system enables flexible tool orientation and multi-angle machining, making it suitable for complex contours, curved surfaces, angled edges, and intricate component geometries. It helps reduce repeated workpiece positioning and supports more efficient machining processes.

2. Precision Machining for Honeycomb Sandwich Panels and Cores

Designed for lightweight structural materials, the machine can perform milling, trimming, and contour machining on honeycomb sandwich panels, honeycomb cores, and related components. Appropriate cutting tools, fixtures, and machining parameters can be selected according to the material structure and processing requirements.

3. Versatile Composite Material Processing

The RBT CNC milling machine is suitable for machining a range of composite materials, including FRP, CFRP, GFRP, and other fiber-reinforced composite components. It supports precision edge trimming, profile milling, hole machining, and finishing for parts with complex shapes.

4. Improved Production Efficiency

By combining multiple machining angles in one setup, 5-axis CNC technology can reduce manual repositioning and help streamline production workflows. The machine can be configured according to workpiece dimensions, machining complexity, and production volume.

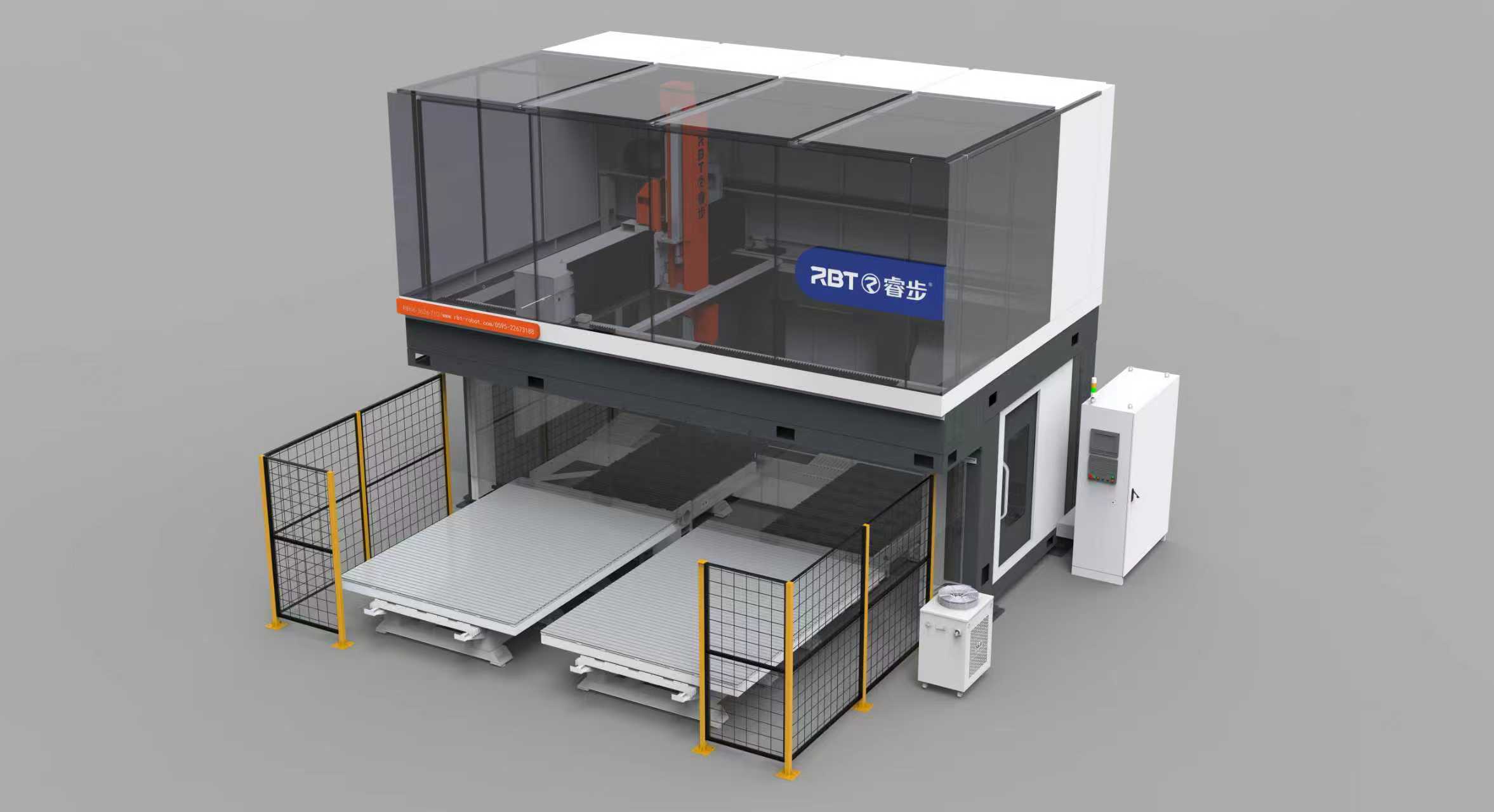

5. Twin-Table Design for Higher Productivity

The twin-table configuration allows one workstation to perform CNC machining while the operator loads and unloads workpieces at the other workstation. This reduces non-cutting time and improves overall production efficiency. The alternating workstations help maintain a continuous machining workflow, particularly in batch production.

6. Fully Enclosed Design for Safer and Cleaner Operation

The fully enclosed machining area helps prevent machining chips and dust from spreading into the surrounding workshop, creating a cleaner and safer working environment. The machine can be connected to an external dust collection system to extract dust and debris generated during machining, helping improve workshop cleanliness and dust management..

   Technical Parameter

Typical Applications

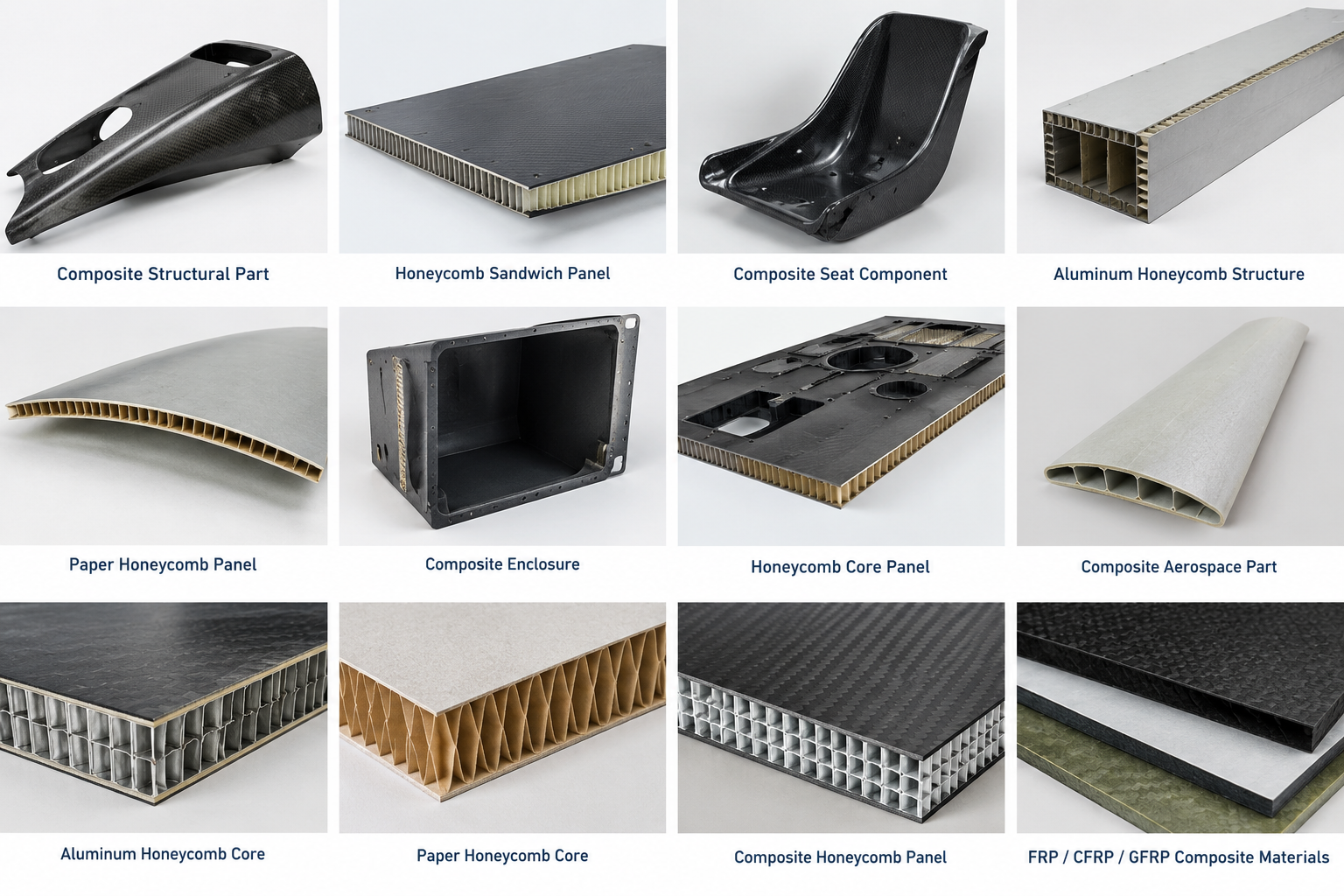

The RBT 5 Axis CNC Milling Machine is suitable for machining:

• Honeycomb sandwich panels

• Paper honeycomb cores

• Aluminum honeycomb panels and cores

• CFRP and GFRP composite parts

• FRP structural components

• Lightweight panels and complex-shaped composite products

• Aerospace, automotive, rail transit, and industrial composite components
