Advanced 5-Axis CNC Machining for Composite Materials
The RBT 5 Axis CNC Machining Center is engineered for high-precision machining of complex composite parts. With simultaneous or 5-axis machining capabilities, depending on the machine configuration, it allows flexible tool movement across multiple angles to process intricate geometries, curved surfaces, and complex contours.

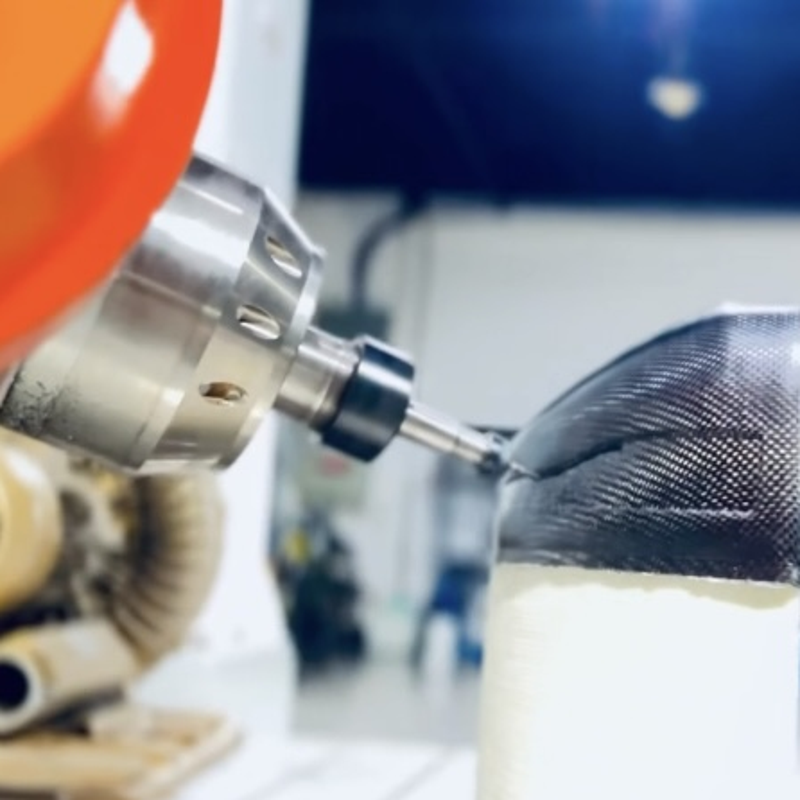

Designed to meet the needs of modern composite manufacturing, this machining center supports operations such as trimming, milling, drilling, edge finishing, and contour cutting. It is suitable for composite components used in aerospace, automotive, rail transportation, wind energy, and other industrial sectors, depending on material requirements and machine configuration.
Key Features and Advantages
1. Advanced 5-Axis Machining Capability
Enables multi-angle machining of complex parts, helping reduce repeated setups and improve machining flexibility.
2. High-Precision Composite Processing
Designed for accurate cutting, drilling, trimming, and contour machining of composite components with complex shapes.
3. Improved Production Efficiency
Multiple machining operations can be completed in a single setup, helping reduce handling time and streamline production workflows.
4. Flexible Material Compatibility

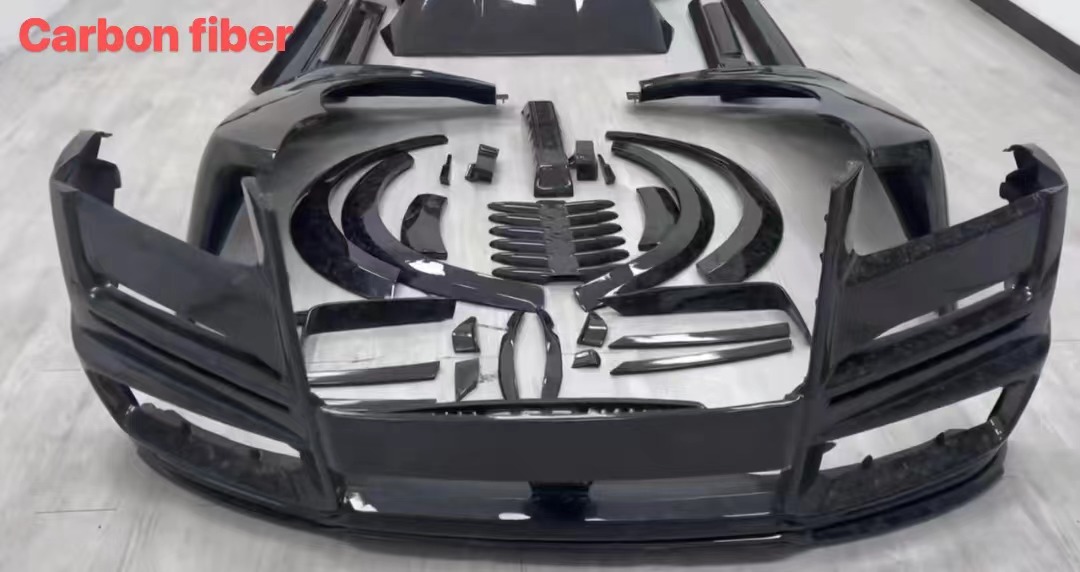

Suitable for machining composite materials such as carbon fiber reinforced polymer (CFRP), glass fiber reinforced polymer (GFRP), and other fiber-reinforced materials, subject to the selected tooling and machine configuration.
5. Customizable Machining Solutions
Machine specifications, working area, spindle configuration, tooling, dust extraction, and automation options can be selected according to workpiece dimensions and production requirements.
Technical Parameters of 5 axis cnc machining center
No. | Items | Parameter | No. | Items | Parameter |
1 | product name | FIVE-AXIS CNC MACHINING CENTER | 9 | Z axis maximum speed | 20m/min |
2 | model | RB-F5-2232-Z08 | 10 | Repeat accuracy (within 300mm) | ±0.05mm |
3 | X axis effective stroke | 2200mm | 11 | voltage | 380V |
4 | Y axis effective stroke | 3200mm | 12 | total power | 14.5KW -33KW |
5 | Z axis effective stroke | 800mm | 13 | spindle power | 5.5KW to 22.3 KW (customizable） |
6 | B-axis rotation angle | ±130° | 14 | Frequency | 50HZ |
7 | C-axis rotation angle | ±540° | 15 | weight | 3.5T |
8 | X/Y axis maximum speed | 35m/min | 16 | size | L5100*W2610*H3982mm |
Application
The RBT 5 Axis CNC Machining Center can be used for machining composite components in a variety of industries:
Aerospace composite structures and components
Automotive composite panels and structural parts
Wind energy composite components
Rail transit interior and structural components
Industrial composite products and customized parts
Mold, model, and prototype manufacturing involving composite materials
Case Study: 5 Axis CNC Machining for Glass Fiber and SMC EV Battery Enclosures
RBT 5 axis CNC machining centers have been supplied to manufacturers in the electric vehicle battery supply chain, including manufacturers associated with battery tray and enclosure production.These applications include:
Glass fiber reinforced composite battery enclosures
SMC battery housings and covers
Composite battery tray components
CNC trimming and contour machining of composite parts
Composite battery components can feature complex shapes, curved surfaces and multiple trimming edges. A suitable 5 axis CNC machining solution can provide flexible tool access for machining different contours and features.Depending on the component design and machine configuration, the machining process can support trimming, cutting, drilling and other required operations. RBT works with manufacturers to select suitable CNC machine configurations based on part dimensions, material characteristics, machining operations and production requirements.
