RB-F5-1930-Z08
RBT
This best-selling 5 axis CNC machining center with a 5 axis head, adopts a heavy-duty bridge structure, high precision and strong stability. In addition, it is equipped with a variety of high-quality, high-performance parts to ensure stable and precise processing. It is used to process many different kinds of materials, such as carbon fiber, fiberglass, wood, medium-density fiberboard, polyurethane, foam, stone, plastic, etc.The advanced design of its structures, and the sophisticated technological solutions adopted provide rigidity, precision over time, speed and flexibility, to guarantee an exceptional level of finishing and an incomparable accuracy. Every detail of these machines is designed to guarantee performances without compromise.
Features

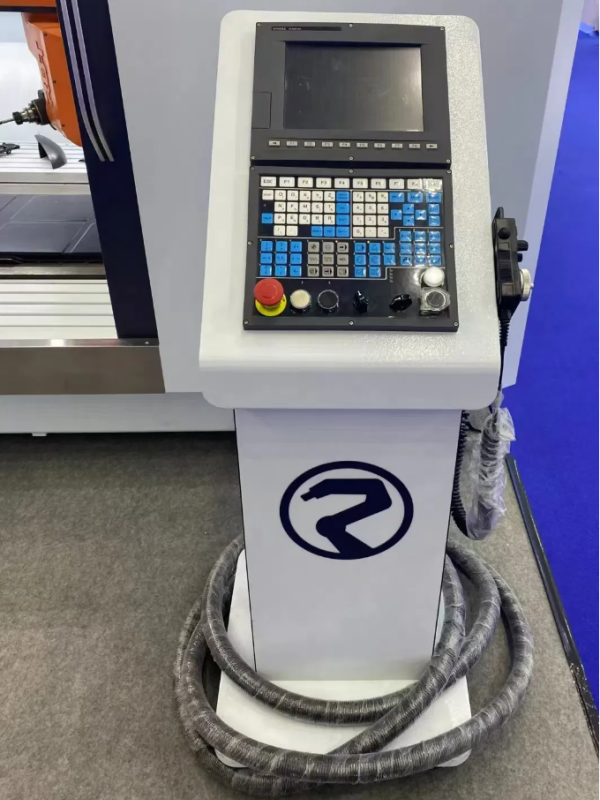

1.The system adopts the SYNTEC five-axis linkage CNC system, which can complete the production and procesing ofthe entire complex surface of the workpiece in one process;
2.The work is easy to clamp and no special fixture is needed;
3.C, B-axis rotary processing can reduce the processing dead angle of complex workpieces;
4.High processing precision, efficient and accurate positioning;
5The equipment combines power, speed and precision, and can be equipped with multiple functions such as dust collection, automatic tool change and RTCP.
6. The actual confiquration ofthe equipment is subiecto the technical data, the machine travel can be customized according to the needs of customers.
| Product name | Non-mental 5 axis machining center |
| Screw | Taiwan TBI |
| Linear Guide | Taiwan CSK |
| Rack | Liangchi |
| Servo | Inovance |
| Control System | Taiwan SYNTEC |
| Electrical components | France* Sch.neider |
| Spindle | RBT |

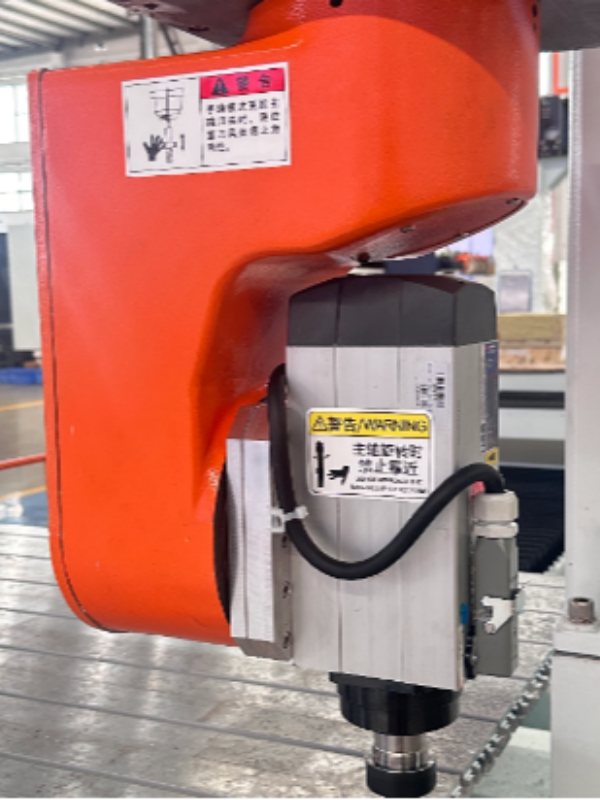

| Spindle power | 5.5KW/24000rpm/water cooling |
| Frequency converter | Sinovo |
| Pneumatic Components | Taiwan AirTAC |
| X axis reducer | Japan* SHIMPO |
| B-axis rotation angle | ±130° |
| C-axis rotation angle | ±540° |
| Machine tool repeatability (within 300mm) | ±0.05mm |
| Total powe | 14.5KW(Subject to the actual equipment) |
| Frequency | L5100*W2610*H3982mm |
| Weight | 3500GK |

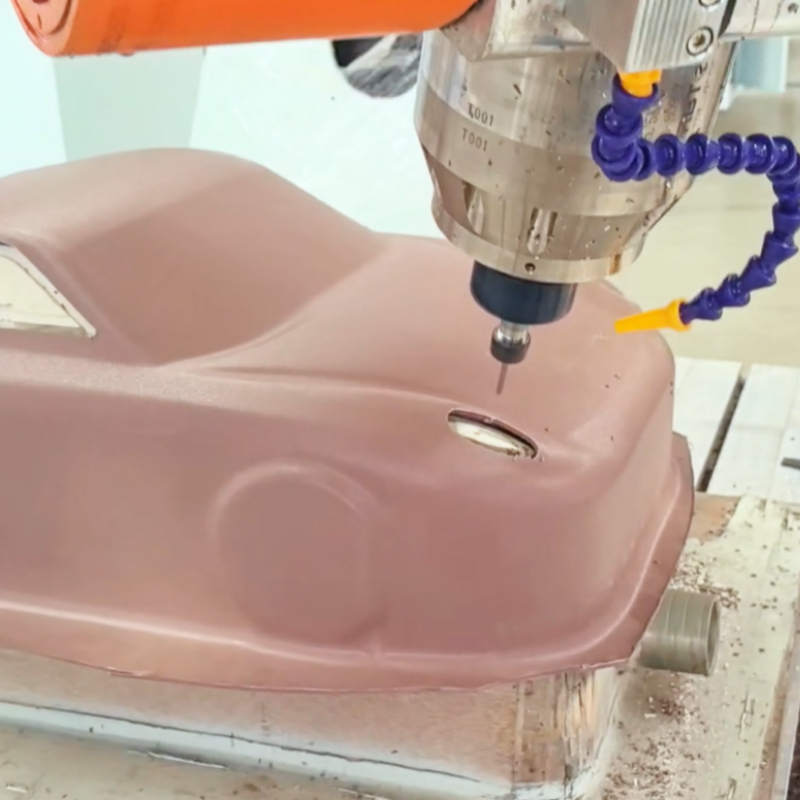

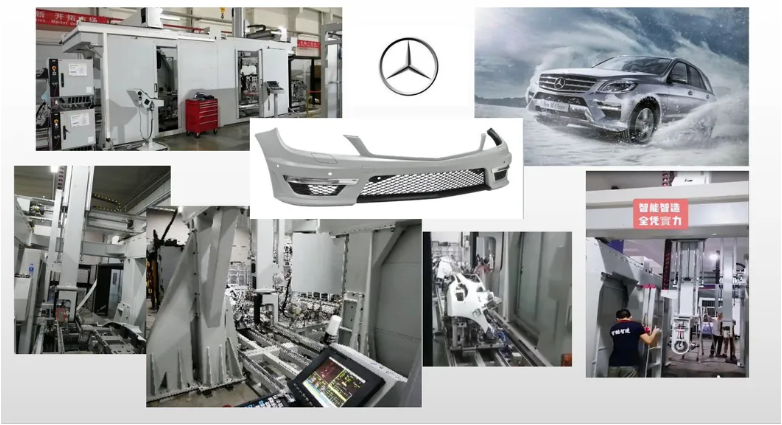

Industrial Prototyping: Automotive, yacht, and high-speed train model processing.

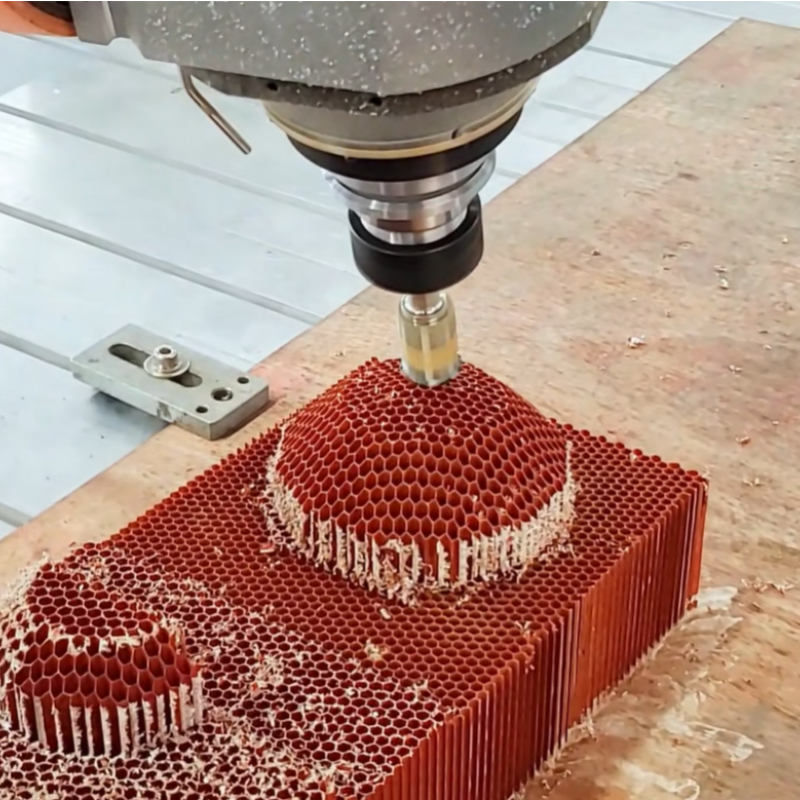

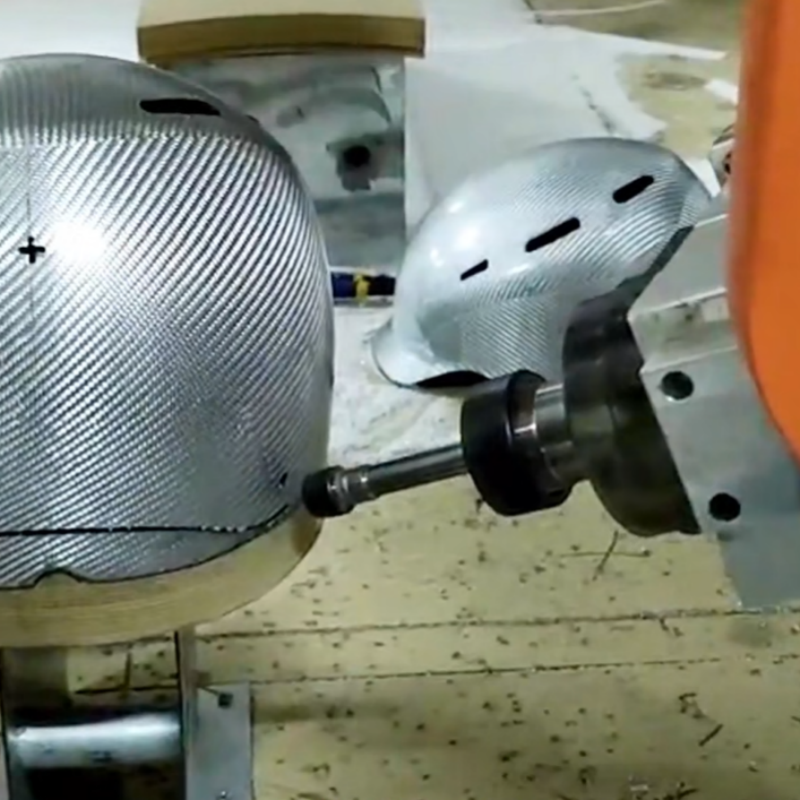

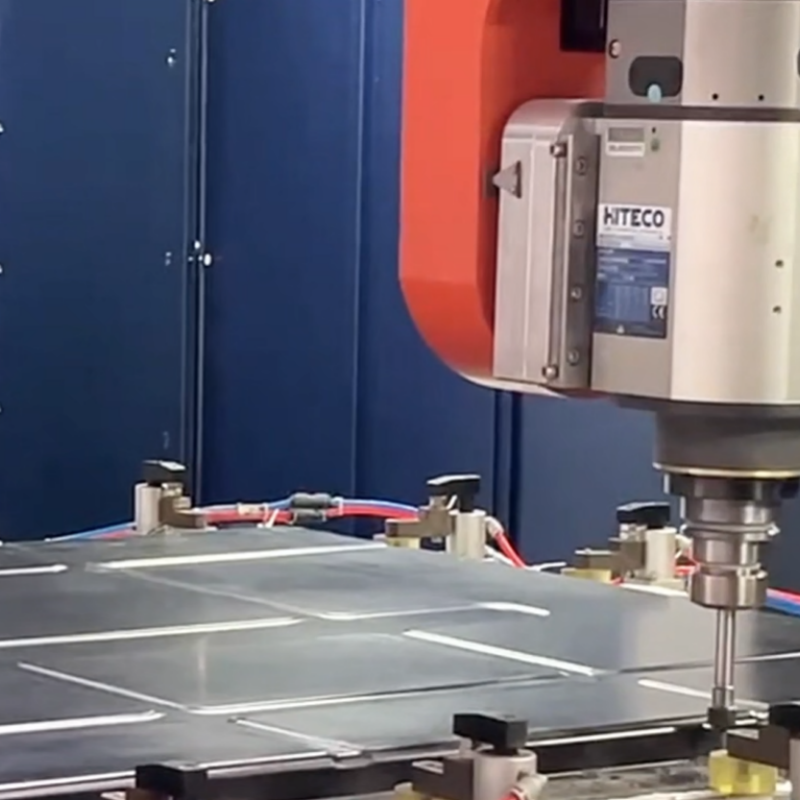

Composite Materials: Cutting and trimming of FRP, carbon fiber, ABS, wind covers, and rail interiors.
Mold Making: Processing FRP, foam, resin, and wooden molds.
Sanitary Ware: Plaster molds and gypsum product machining.
Furniture: Carving solid wood furniture, stair parts, chair backs, etc.
Widely used in aerospace, rail transit, automotive, composites, mold making, sporting goods, healthcare, home appliances, crafts, and sanitary ware.

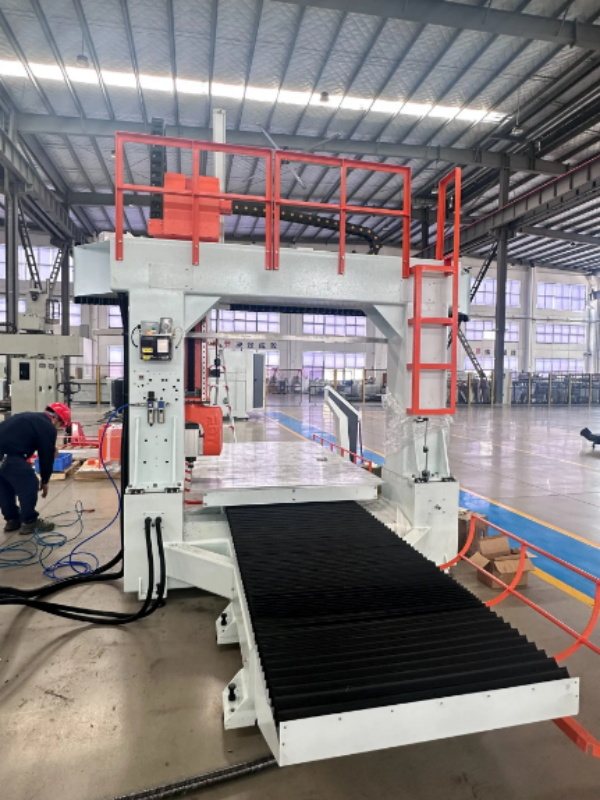

Machine Picture Show

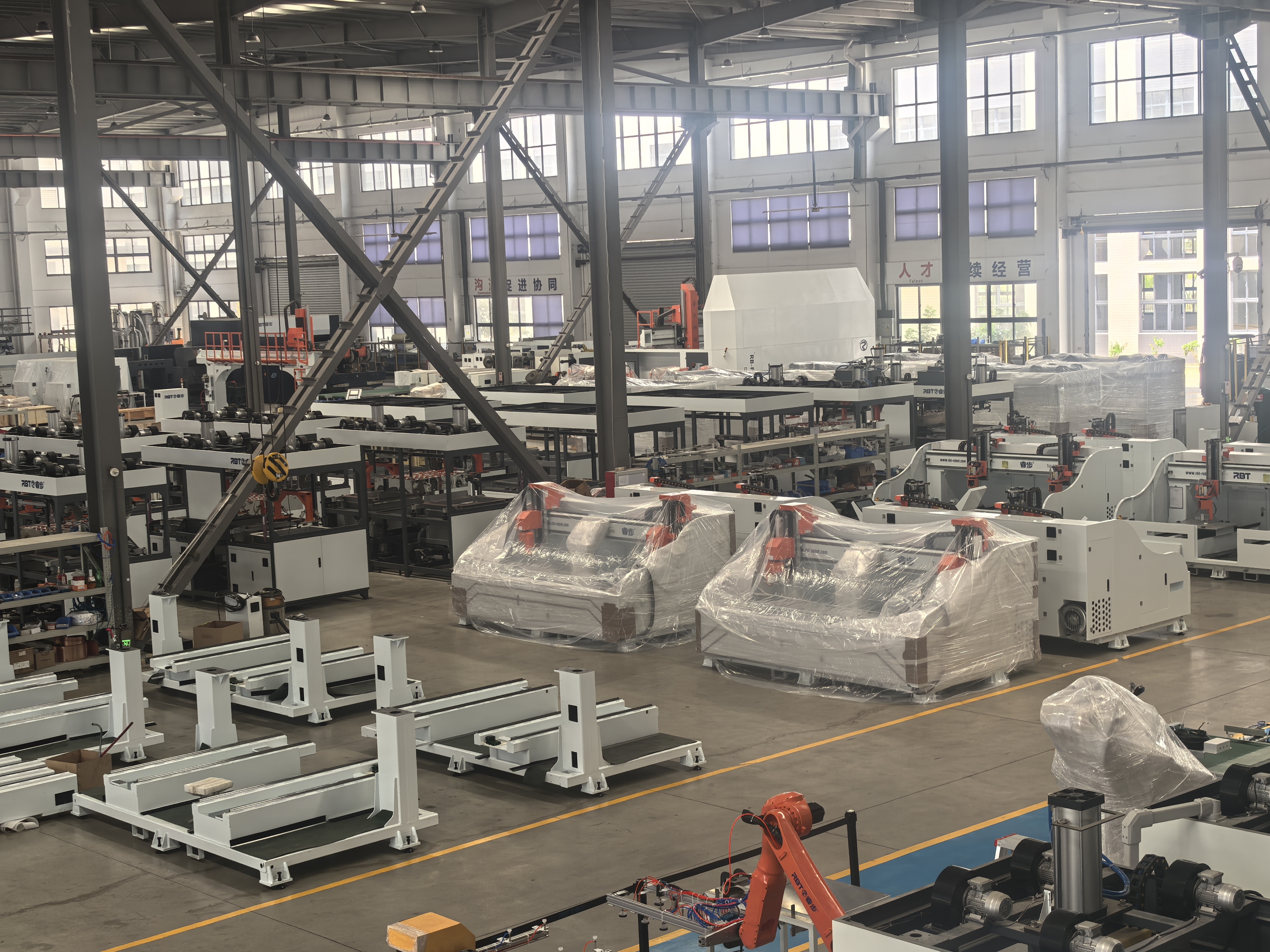

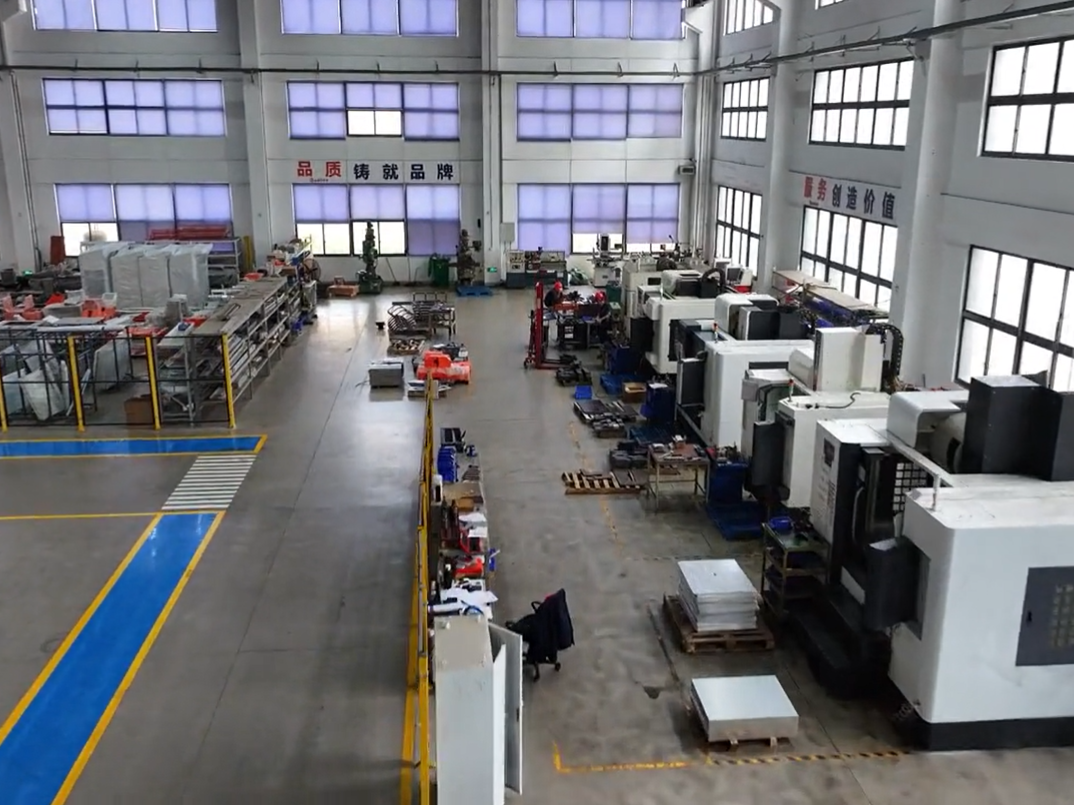

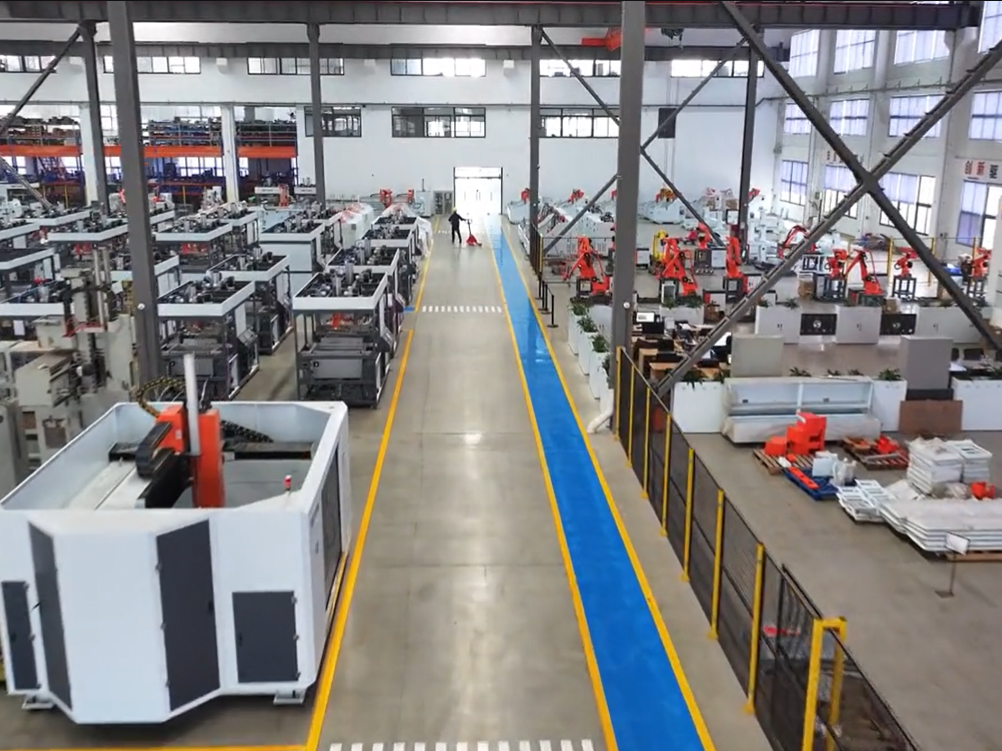

Professional CNC Router factory with more than 10 years experience in CNC Router design, manufacture, machining, inspection, etc.
All the spare parts are a world-famous brand like Siemens controller from Germany, Yaskawa servo motors from Japan/Taiwan Syntec, Taiyo cable from Germany and so on.
All the machine bodies are through whole welding, heat treating, sandblasting and three times painting to make sure the machine body will be never out of frame or painting problem. It will make your machine always work in high precision, fast speed like the new machine.
7*24 hours service after the sale with English, Russia, Spanish or Portuguese, etc.
1 years warranty for machine.
