High Performance Multiple Head 6 Axis Cnc Router With Dust Collection For Substitue Wood Parts

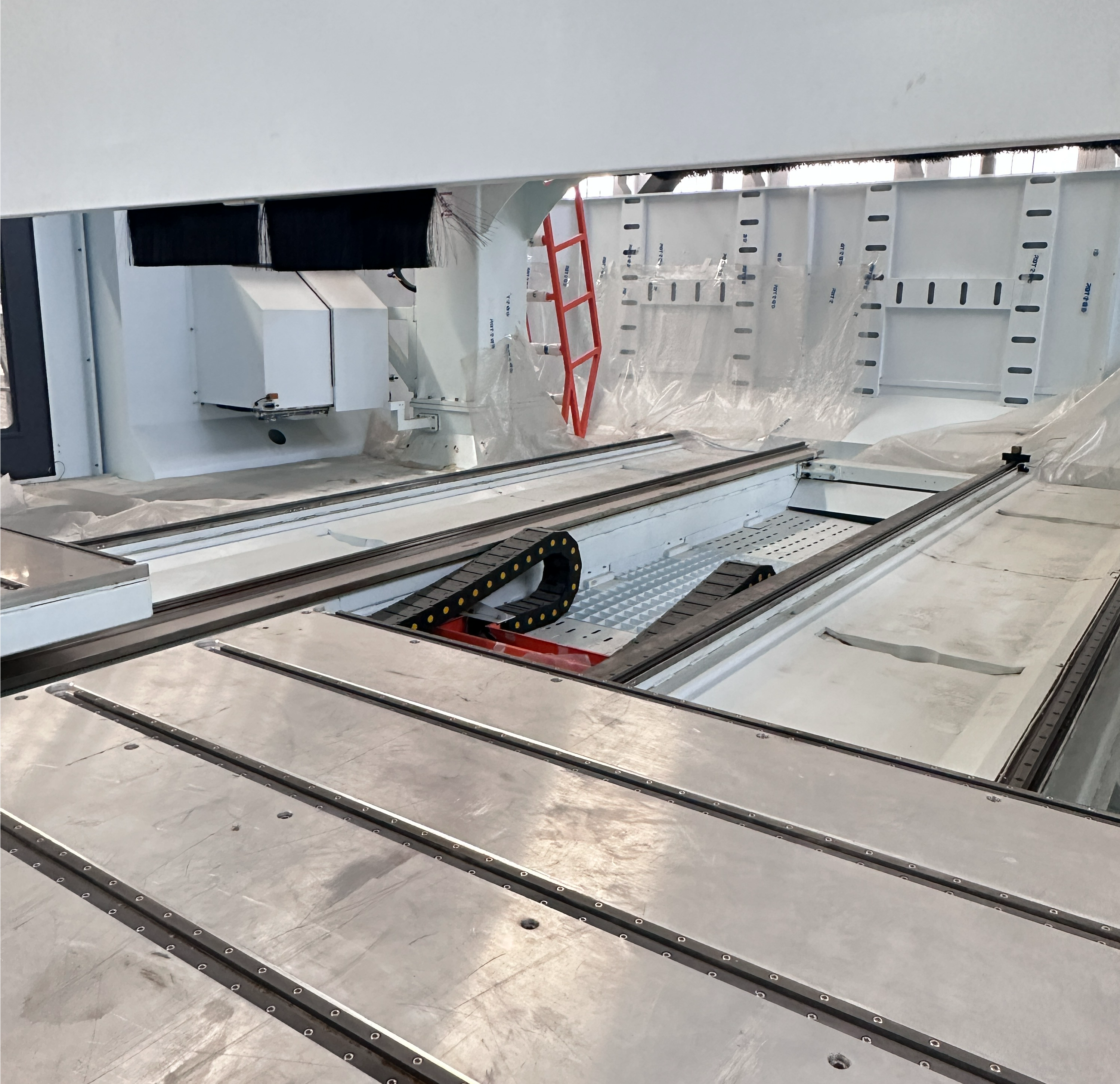

6-axis machining center, truss type of double worktable, with protection between the structure, to meet the safety protection and debris overflow in the production of equipment, movable worktable, automatic interaction between processing area and feeding area, 5 coordinate axes drive the movement of the workpiece.

Rated Power:	16.15-35.65KW
X/Y/Z axis travel:	360026001200MM
Size:	L7300W6400H4600
Spindle Power:	3-20KW
Control System:	Taiwan Synetc
Voltage:	3-380V
C/B Axis Travel:	±540°/±120°
Availability:

Quantity:



Inquire Add to Basket

Model:
RB-H6-3626--Z12
Brand:
RBT
Code:
8465990000

Product Description

RBT MACHINERY

Composite Material 5 Axis CNC Machine for Aerospace /Automotive/Medical Parts

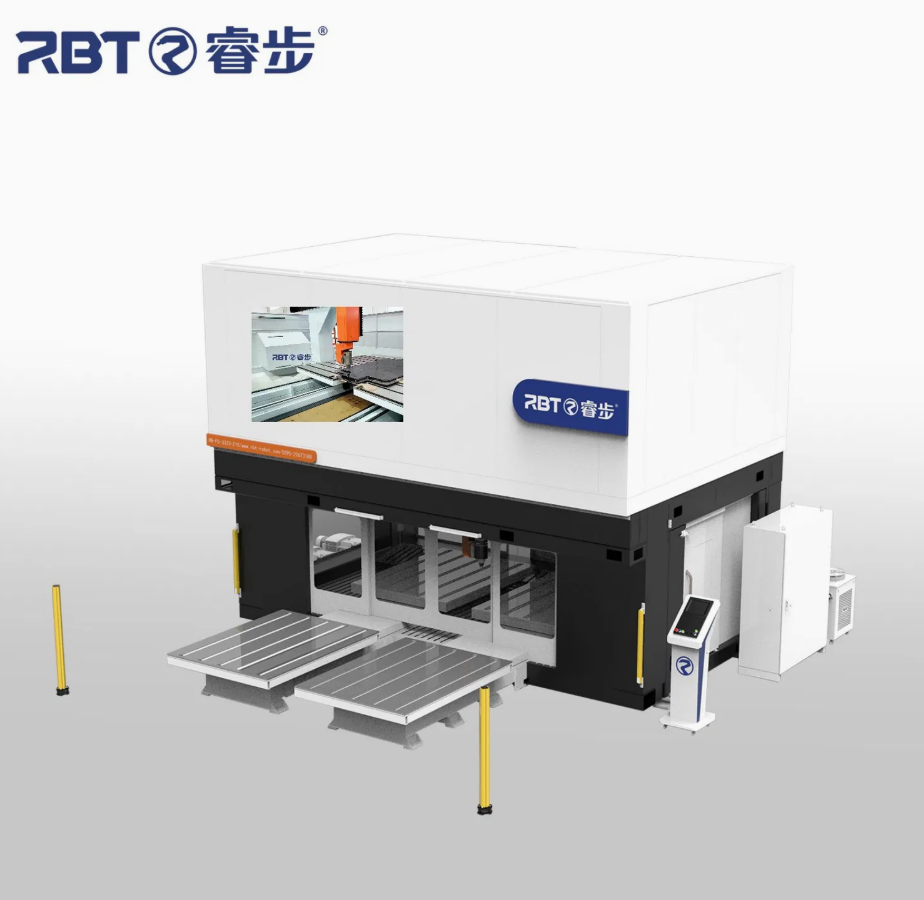

Product Picture and Feature

1. Processing carbon fiber and its composite material products, the finished material for three-dimensional or multidimensional special-shaped cutting, drilling, etc.

2. Cutting, first of all, carbon fiber material products of high elastic modulus, very hard, not easy to process, and ruibu five-axis machining center spindle is imported spindle, fast speed, fast cutting.

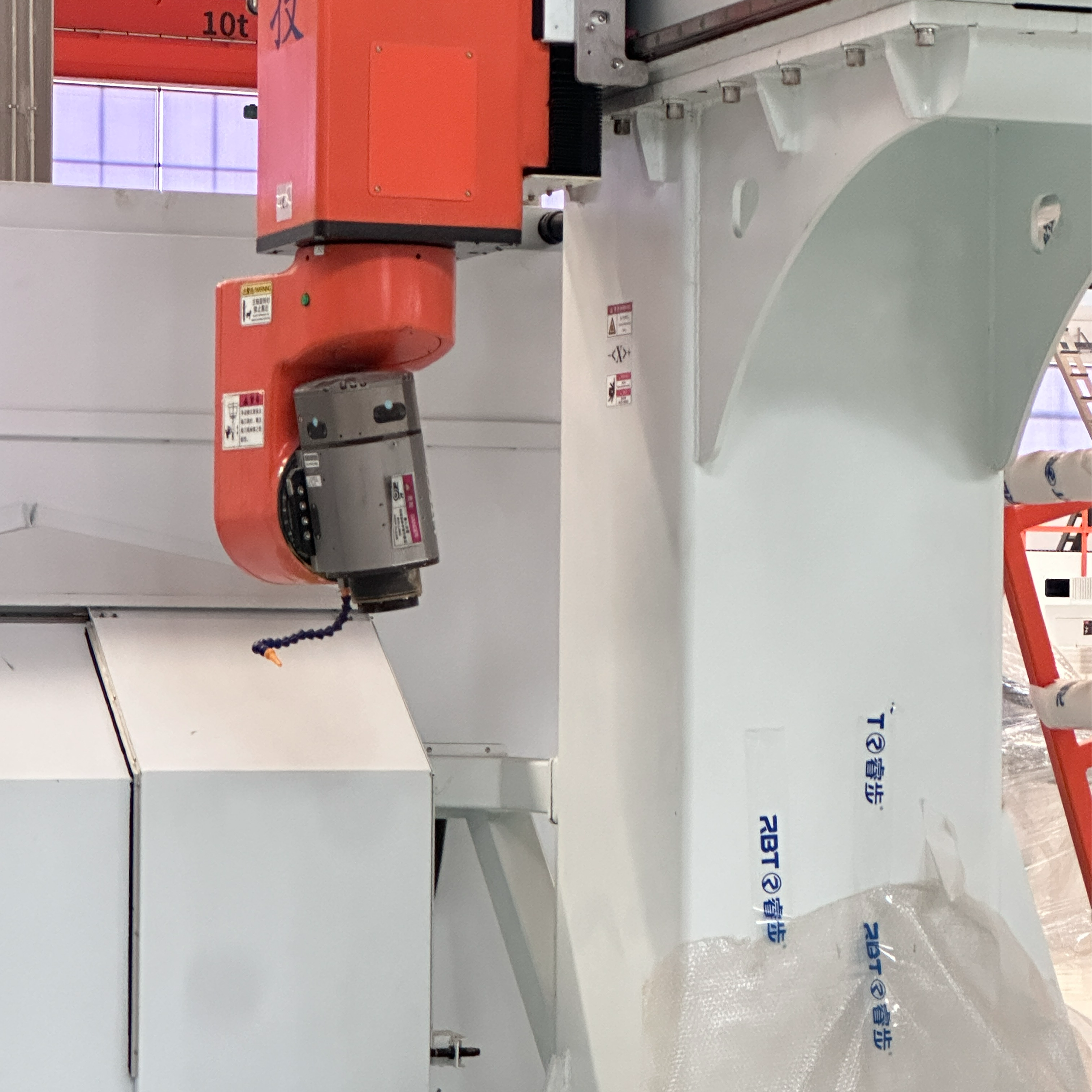

3. Drilling, especially side drilling, need spindle swing Angle, five axis machine tool is imported double swing head spindle, can achieve 360° swing Angle, drilling processing.

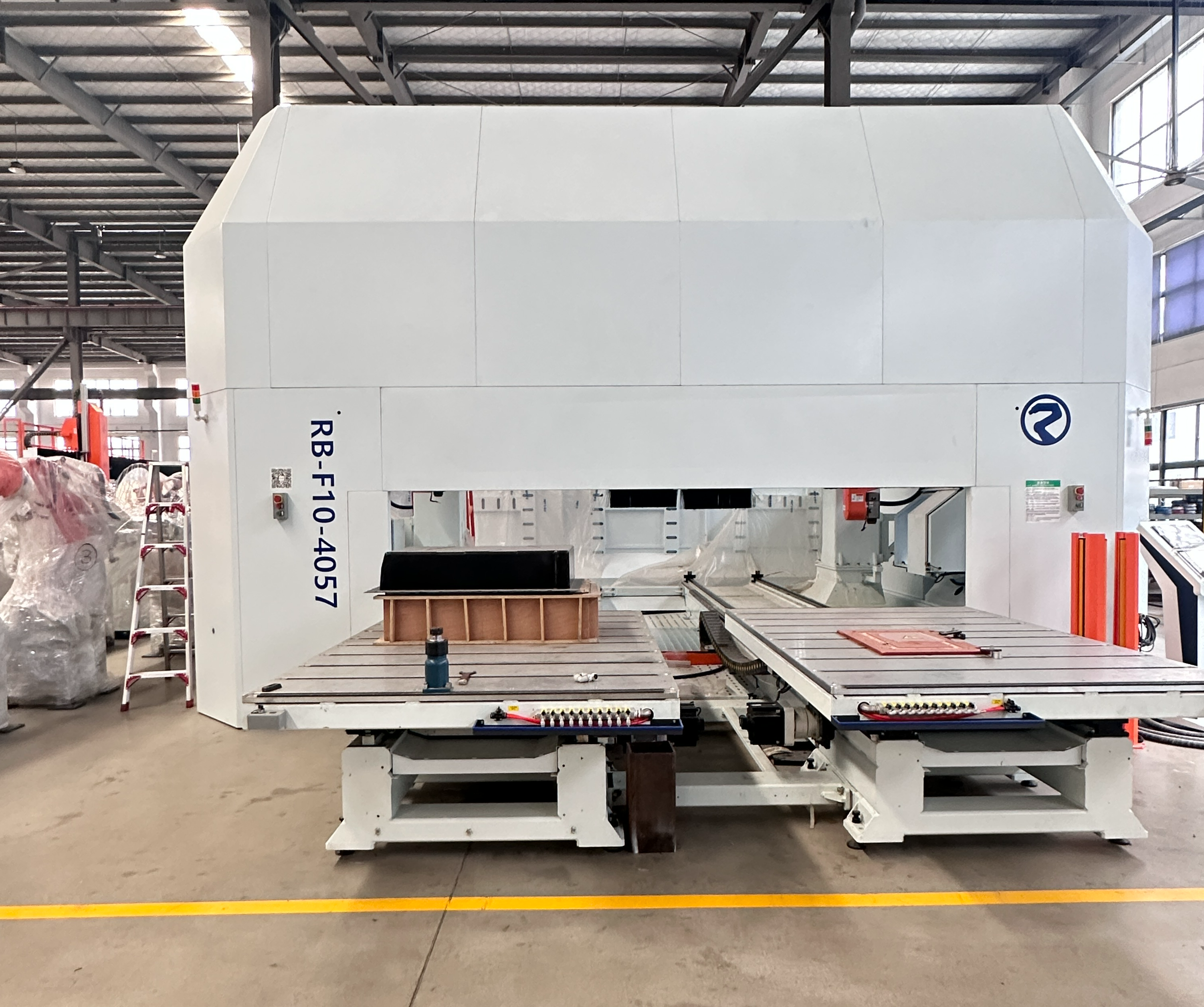

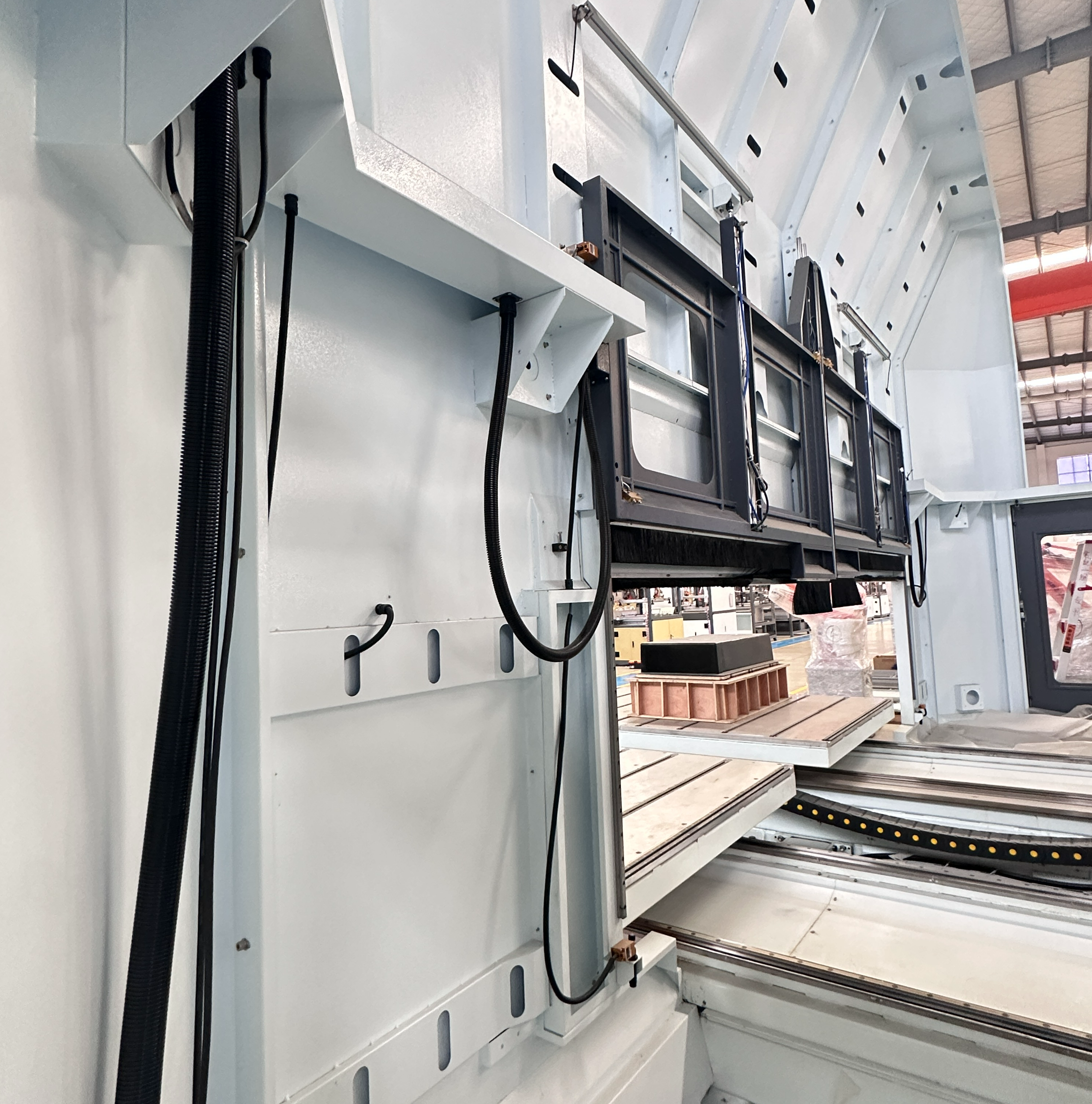

Product show

Composite Material 5 Axis CNC Machine for Aerospace /Automotive/Medical Parts

Product Style

Product parameter

Product name	Non-mental truss type 6 axis machining center
Screw	Taiwan TBI
Linear Guide	Taiwan CSK
Rack	Liangchi
Servo	Inovance

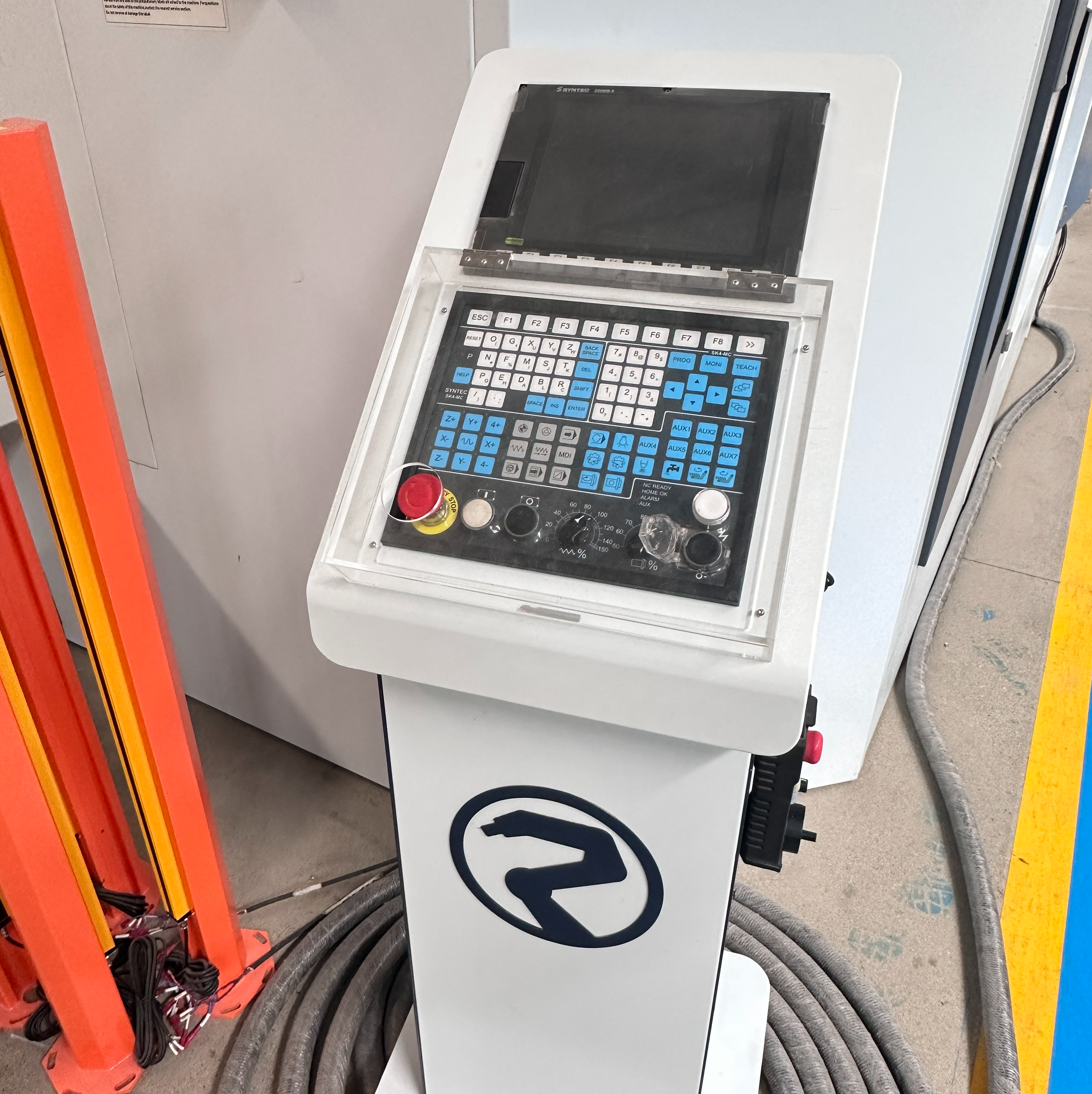

Control System	Taiwan SYNTEC
Electrical components	France* Schneider
Spindle	RBT
Spindle power	5.5KW/24000rpm/water cooling
Frequency converter	Sinovo
Pneumatic Components	Taiwan AirTAC
X axis reducer	Japan* SHIMPO
B-axis rotation angle	±1300
C-axis rotation angle	±540°
Machine tool repeatability (within 300mm)	±0.05mm
Total power	14.5KW(Subject to the actual equipment)
Frequency	L7300W6400H4600mm
Weight	13000KG

Product certificates

Company Team Appearance

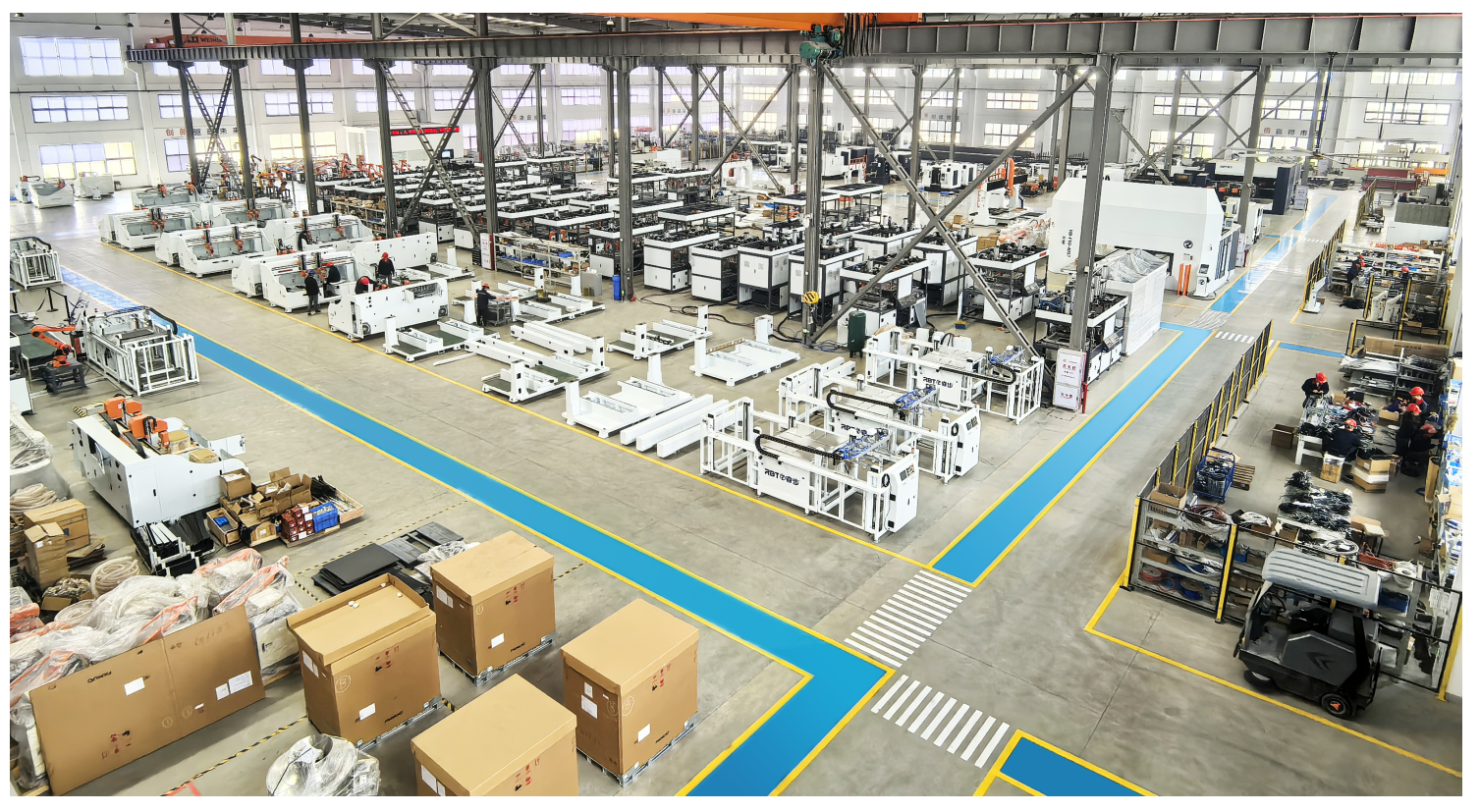

COMPANY PROFILE

Fujian RBT Intelligent Co., Ltd. is an integrated intelligent equipment solution provider integrating R & D, manufacturing, sales and technical services, specializing in the customization of five-axis machining center manufacturers, engaged in this industry for more than 15 years. The main products are gantry type, truss type, fully enclosed 5/6 axis machining center, double head 5 axis, 6 axis machining center and all kinds of non-standard automatic intelligent production lines.

Cooperation customer representative

FAQ

1. Why choose us?
As a manufacturer, RBT industrial is committed to offer not only products with high quality and performance and
competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.

2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.

3. What payment terms can you accept?
Normally 50% deposit is required in advance, 50% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.

4. What Certificates do you have?
All products meet with the ISO9001 Quality System and have acquired CE,ISO certificate.

5. How about your delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.

6. Can you provide OEM service?
RBT industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

7: How about your after sales service?
A:We will arrange our technical staffs to your factory to install machine and teach you how to operate it. During the current special period, we will offer all support online via video 24h per day. Before shipment, we will test machine from and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together.
