RB-F10-4057-Z09
RBT
8465990000
(RB-F10-4057-Z09)
1.The sy
stem adopts the SYNTEC five-axis linkage CNC system, which can complete the production and processing of the entire complex surface of the workpiece in one process;
2. The work is easy to clamp and no special fixture is needed;
3.C, B-axis rotary processing can reduce the processing dead angle of complex workpieces;
4.High processing precision, efficient and accurate positioning;
5.The equipment combines power, speed and precision, and can be equipped with multiple functions such as dust collection, automatic tool change and RTCP
6.Two worktables can be combined into a group and two machining heads interlock for large parts processing. Two machining heads can do the processing at the same time which can greatly improve the processing efficiency of symmetrical parts. It can also independently process different workpieces with a single worktable and a single machining head, and the switch of the worktable can carry out uninterrupted step processing of two different products, which is equivalent to having two five-axis machining centers at the same time,
7.The actual configuration of the equipment is subject to the technical data , The machine travel can be customized according to the needs of customers.
| Product name | Non-mental two head 5 axis machining center |
| Screw | Taiwan TBI |
| Linear Guide | Taiwan CSK |
| Spindle power | 8.5KW/24000rpm/water cooling |
| Frequency converter | Sinovo |
| Pneumatic Components | Taiwan AirTAC |
| X axis reducer | Japan* SHIMPO |
| B-axis rotation angle | ±120° |
| C-axis rotation angle | ±540° |
| Machine tool repeatability (within 300mm) | ±0.05mm |
| Total power | 19.5-31KW(Subject to the actual equipment) |
| Frequency | L9000*W6800*H4250mm |
| Weight | 15000KG |

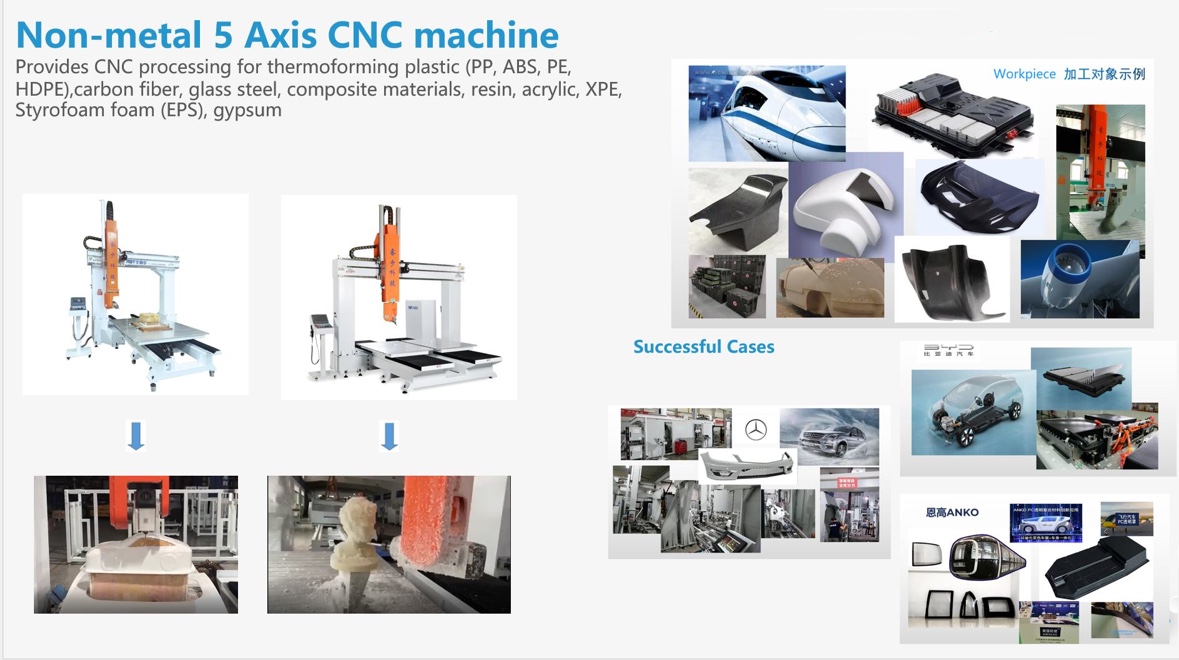

Suitable application
 | FAQ |
Q1. Where is your factory located ? How can I visit it ? A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up. Q2. Are you produce the machine according to the customer requirement or samples? A: Yes,we have a strong and professional R& D team, the machine can be customized based on your products, samples or technical drawings. Q3. What is your sample service? A: We can supply the sample testing based on your technical drawing and samples to test the machine performance. Q4. What is your MOQ of your machine? A: Normally our MOQ is 1 set. Q5. Do you test all your machine before delivery? A: Yes, we have 100% test before delivery. |
