RB-H6-3626-Z12
RBT
Product Description

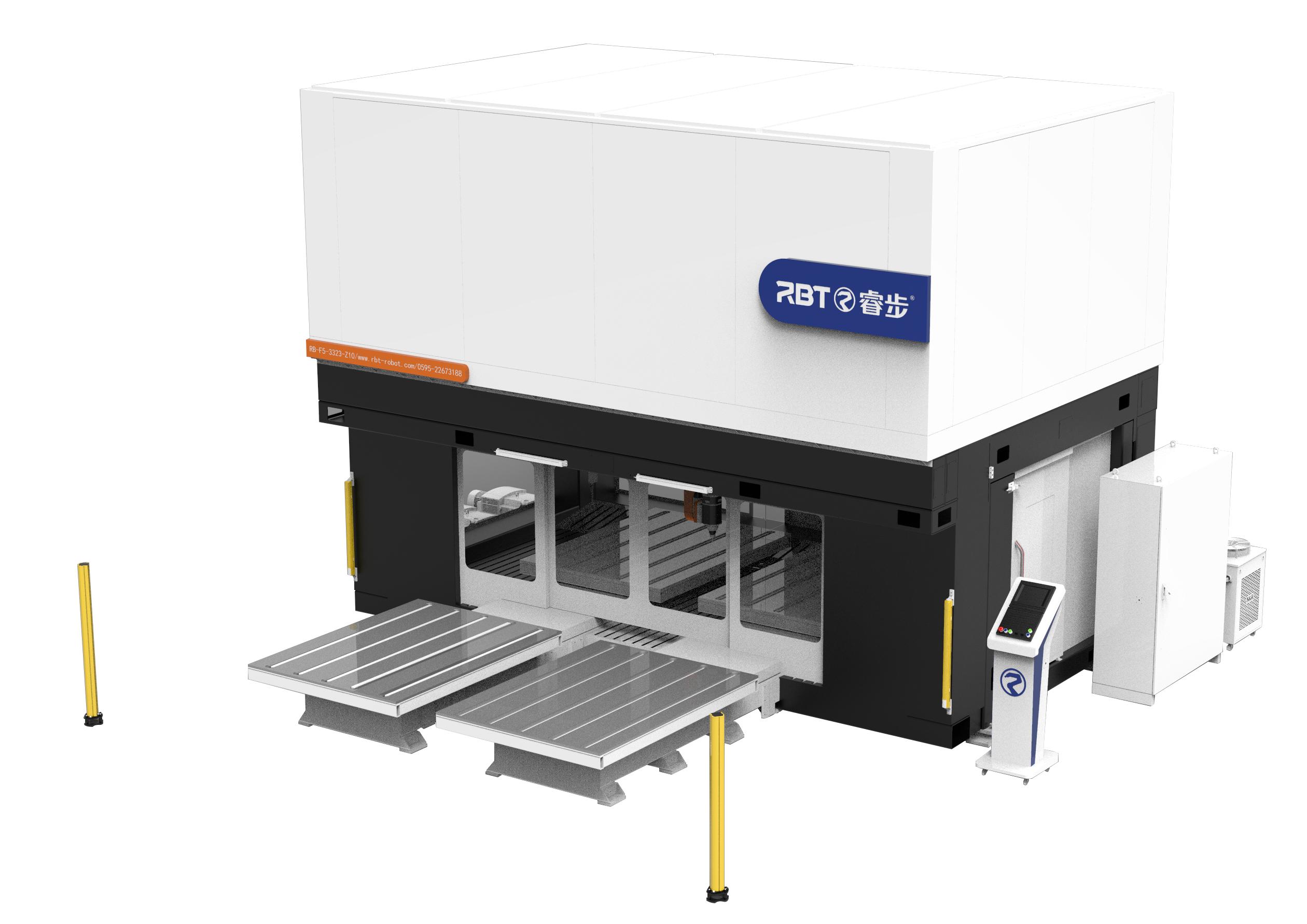

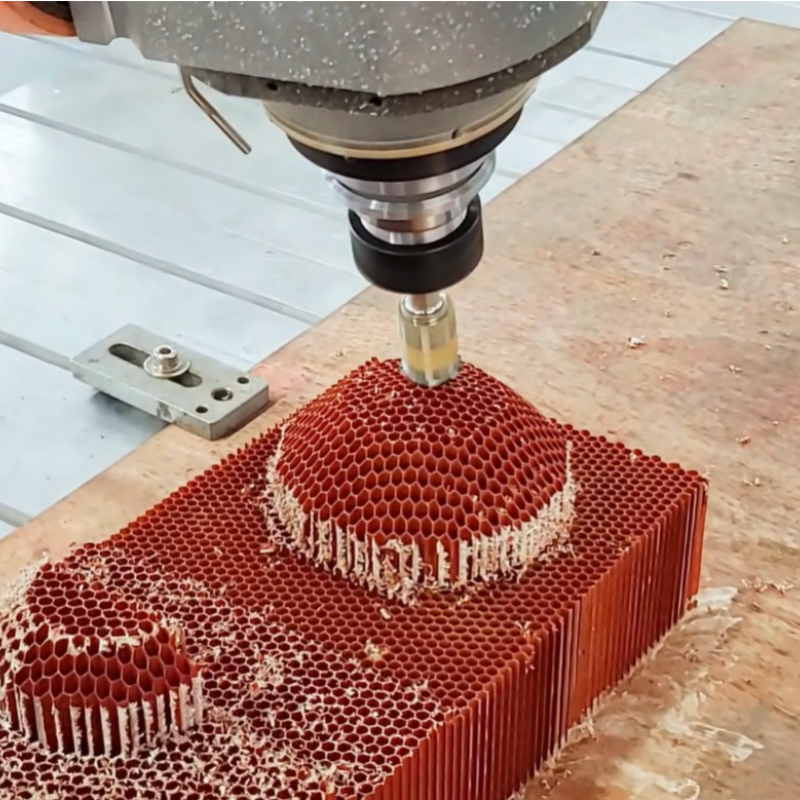

This fully enclosed 6-axis CNC machine excels in precision machining of non-metallic materials with its robust truss-type structure.
Designed for complex aerospace and industrial applications, it ensures high stability and accuracy across demanding workflows.
Its automated features and temperature-resistant performance deliver reliable efficiency for advanced manufacturing needs.

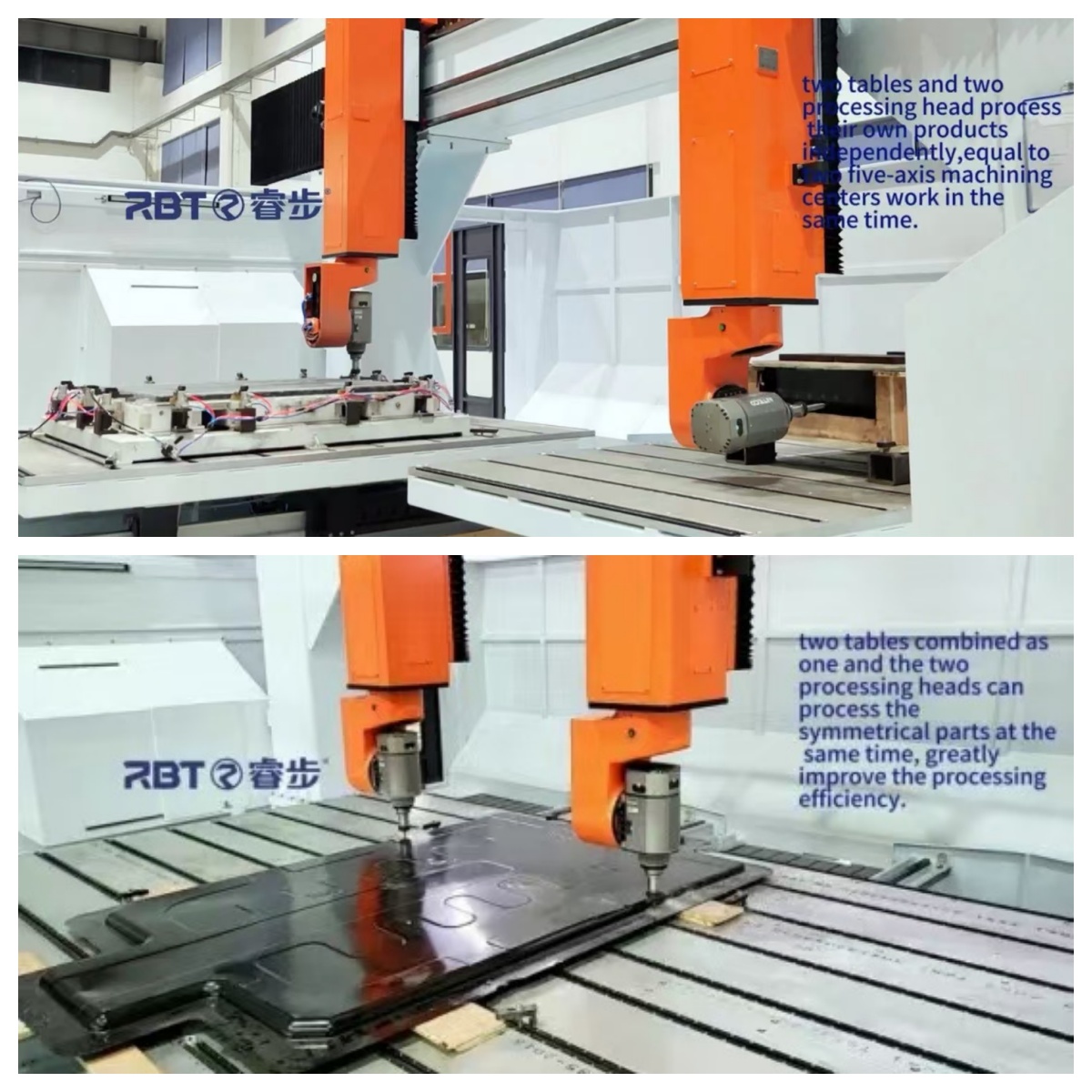

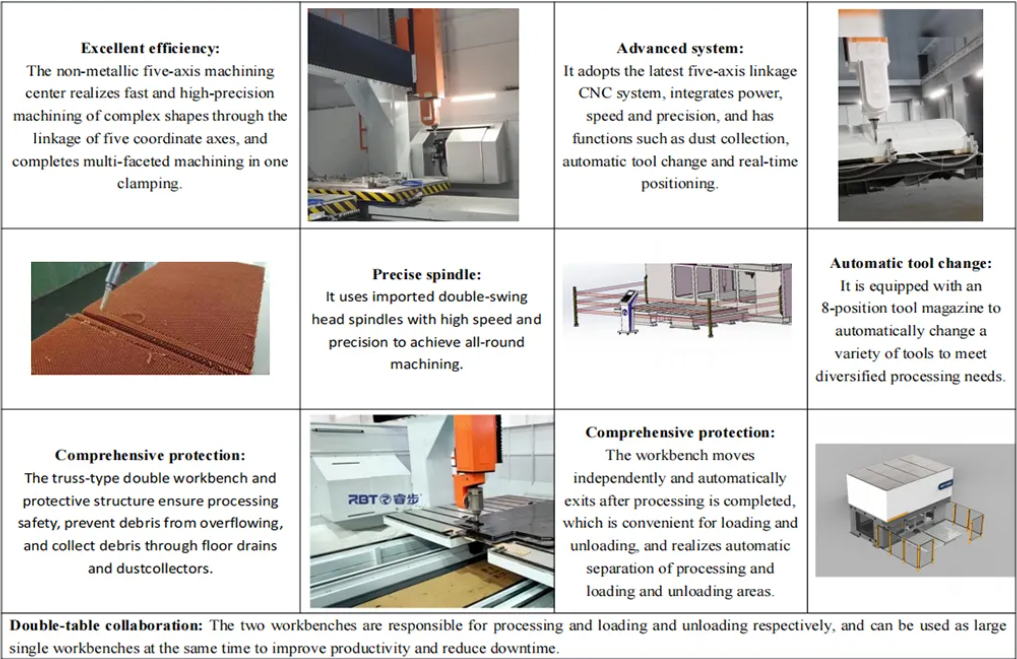

1.The trus-type double worktable and the protective room structure meet the safety protection and debris prevention during production, the floor drain dust collection device cooperates with the high-performance dust collector to collect external processing debris;
2.During processing,the work table does not move, and the five cordinate axes drive the tool to move and process around the workpiece, which can realize five-axis linkage three-dimensional movement. Satisfy the processing of pentahedron and arbitrary curved surface;
3. Movable worktable (does not participate in the five-axis linkage processing movement, and automaticaly exits the machine processing position afterthe productis procesed), making loading and unloading safer and more convenient, and reaizing automatic interaction between the processing area and the loading andunloading area;
4.The equipment combines power,speed and precision,and can be equipped with multiple functions such as dust collection, automatic tool change and RTCP,
5.The actual confiquration of the equipment is subject to the technical data. The machine travel can be customized accordina to the needs of customers.
| Content | Parameter | Content | Parameter |
| name | non-metal truss type 5-axis double head cnc machine | brand | RBT |
| model | RB-H6-3626-Z12 | voltage | 3-380v |
| x\y\z axis travel | 3600*2600*1200mm | machine rated power | 16.15kw-35.65kw |
| c\b axis travel | ±540°/±120° | weight | 13000kg |
| spindle power | 5.5kw~20kw | dimension | L7300*W6400*H4600mm |
| control system | Taiwan Syntec | machine origin | Guangdong/Fujian |

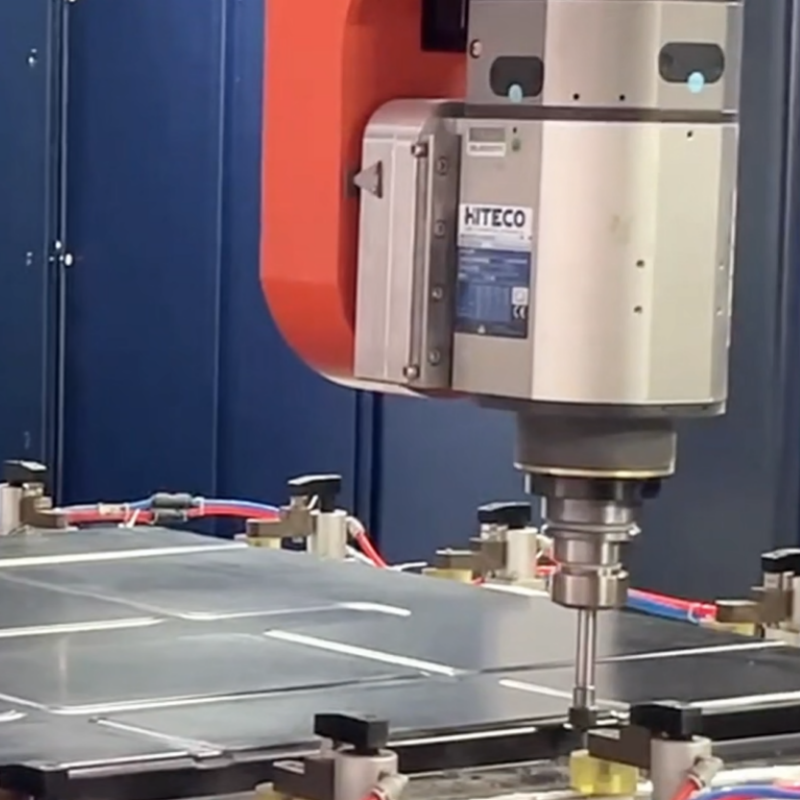

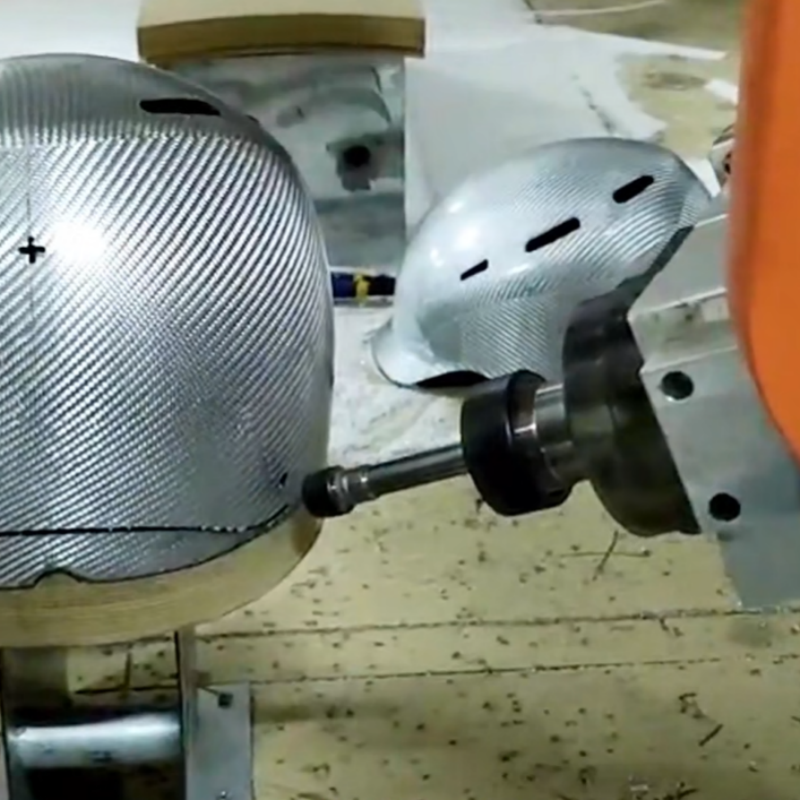

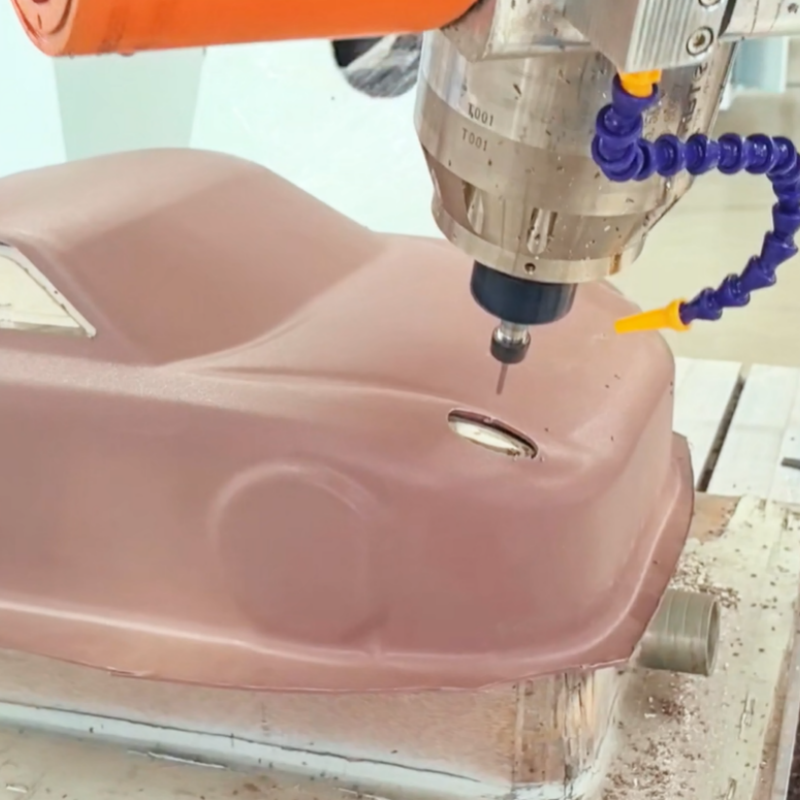

Machine Videos

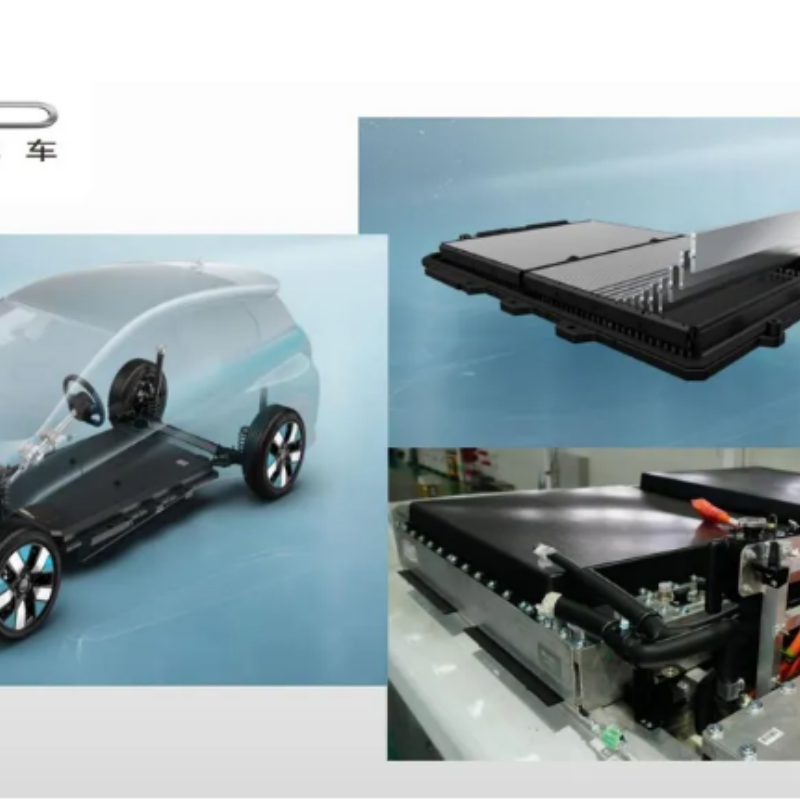

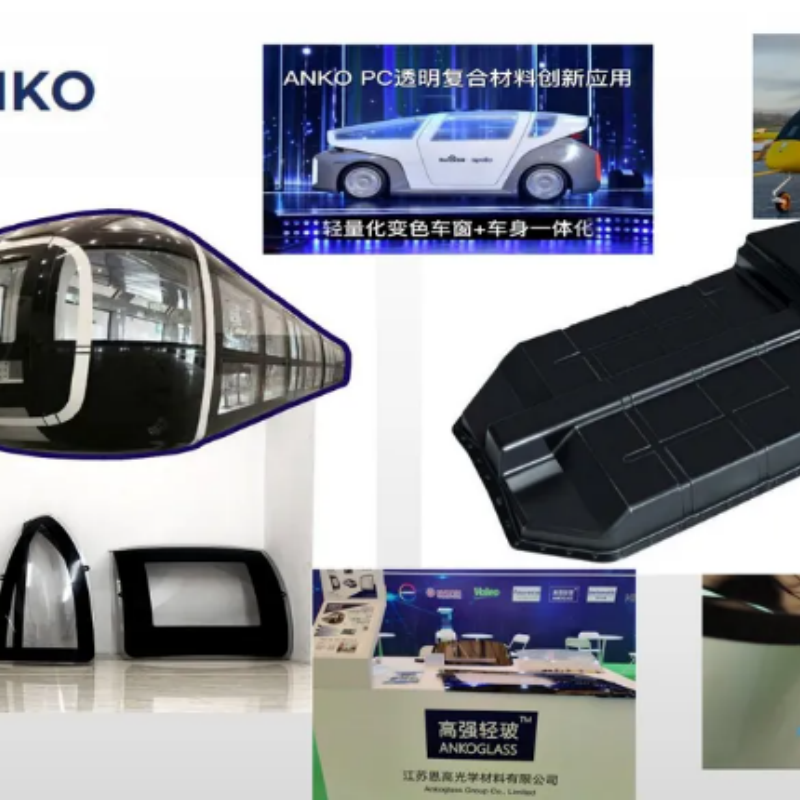

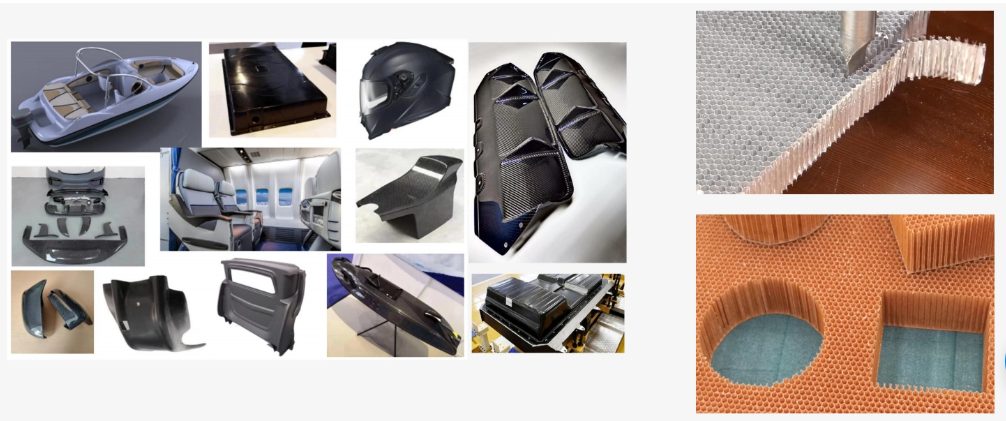

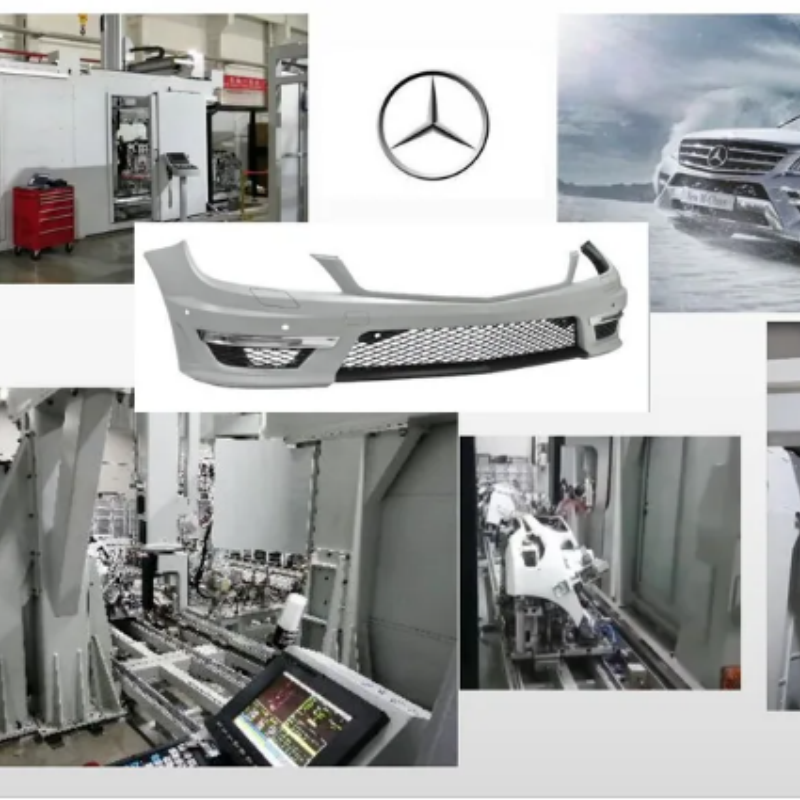

Product Application
