RB-H5-3323-Z10
RBT
1. The trus-type rotary worktable and the protective room structure meet the safety protection and debris prevention during production; the flor drain dustcollection device cooperates with the high-performance dust collector to collect external processing debris.
2. During processing, the work table does not move, and the five coordinate axes drive the toolto move and nrocess around the wotkpiece, which can reaize fiveaxis linkage three-dimensional movement, Satisfy the processing of pentahedron and arbitrary curved surface.
Content | Parameter | Content | Parameter |
| Name | Non-metal Truss Type 5 axis CNC Machine | Brand | RBT |
| Model | RB-F5-3323-Z10 | Voltage | 380V |
| X/Y/Z Travel | 3300*2300*1000mm | Power | 25.35 KW |
| C/B Axis Travel | +/- 540° / +/- 120° | Spindle power | 17KW |
| Control system | Taiwan SYNTEC | Weight | 19500KG |
| Origin | Guangdong/Fujian | Warranty | 1 Year |
Multi-Axis Simultaneous Control: The simultaneous control of five axes allows for the machining of complex curves and contours found in many automotive and aerospace parts.
High-Speed Machining: The ability to perform high-speed machining reduces production times and increases efficiency.
Dual Table Functionality: The innovative twin table design allows for continuous operation, with one table dedicated to machining while the other is prepared for the next cycle, significantly enhancing workflow efficiency. making loading and unloading safer and more convenient, and realizing automatic interaction between the processing area and the loading and unloading area.
Large Working Area: The twin table system allows for larger workpieces typical in automotive and aerospace applications.

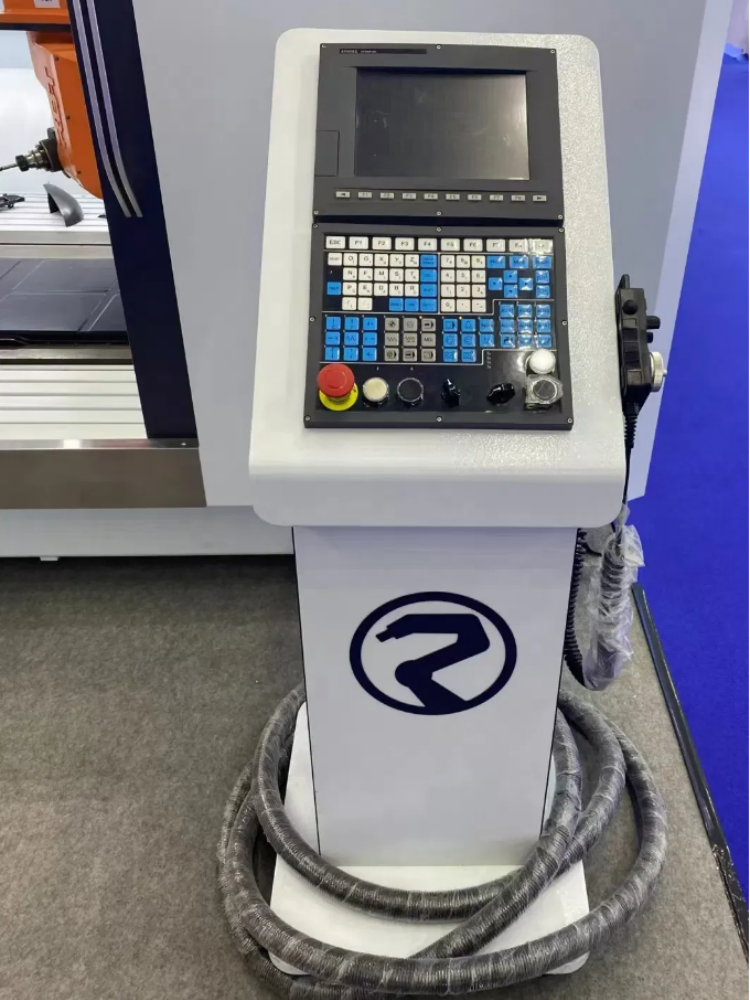

Advanced Control Systems: Modern control systems with intuitive interfaces facilitate the programming and operation of complex machining tasks. SYNTEC five-axis linkage CNC system combines power, speed and precision and can be equipped with multiple functions such as dust collection and RTCP.

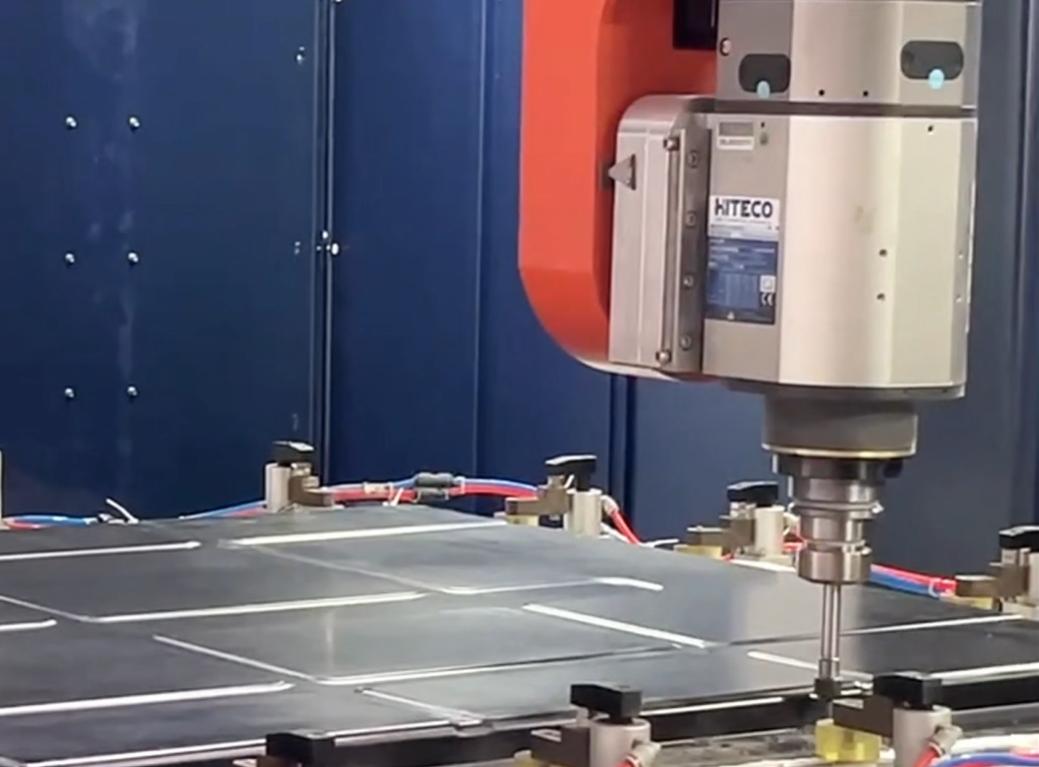

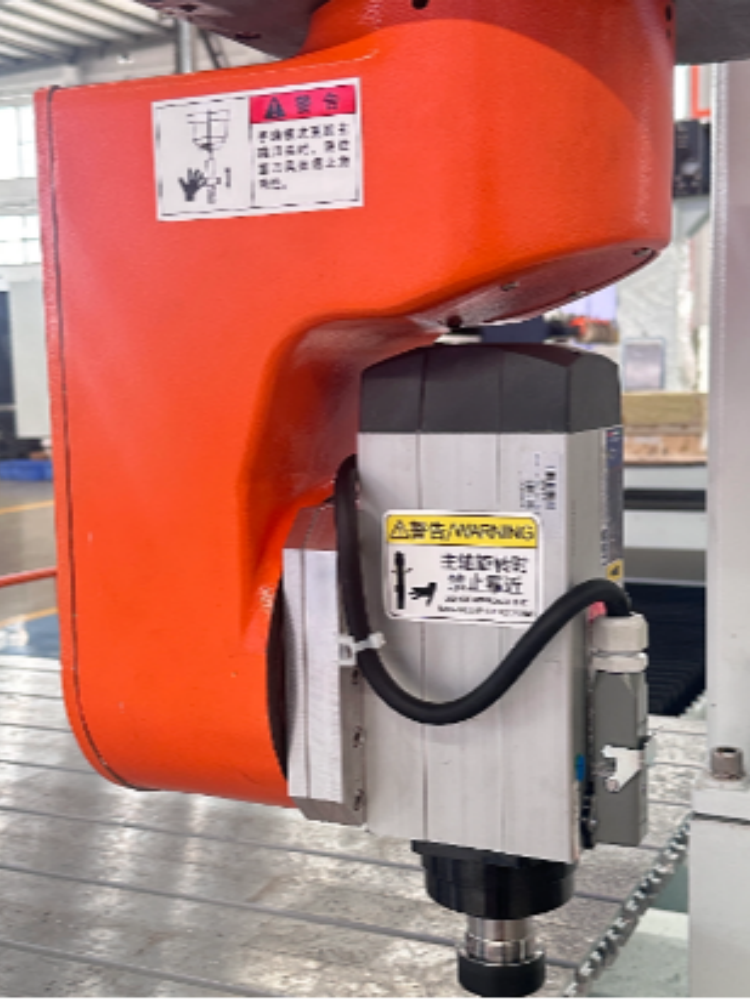

High-Performance Spindles: The router is fitted with high-torque spindles that can be customized to meet specific performance requirements, ensuring optimal cutting performance for various materials. Italy Hiteco double swing head spindle, can achieve 360° swing Angle, fast speed, high precision.
Automatic Tool Management: An integrated tool magazine and automatic tool changer reduce downtime and setup times, allowing for a seamless transition between different tools during the machining process.
How a 5-Axis Rotary Twin Table CNC Milling machine is used in the automotive and aerospace industries?

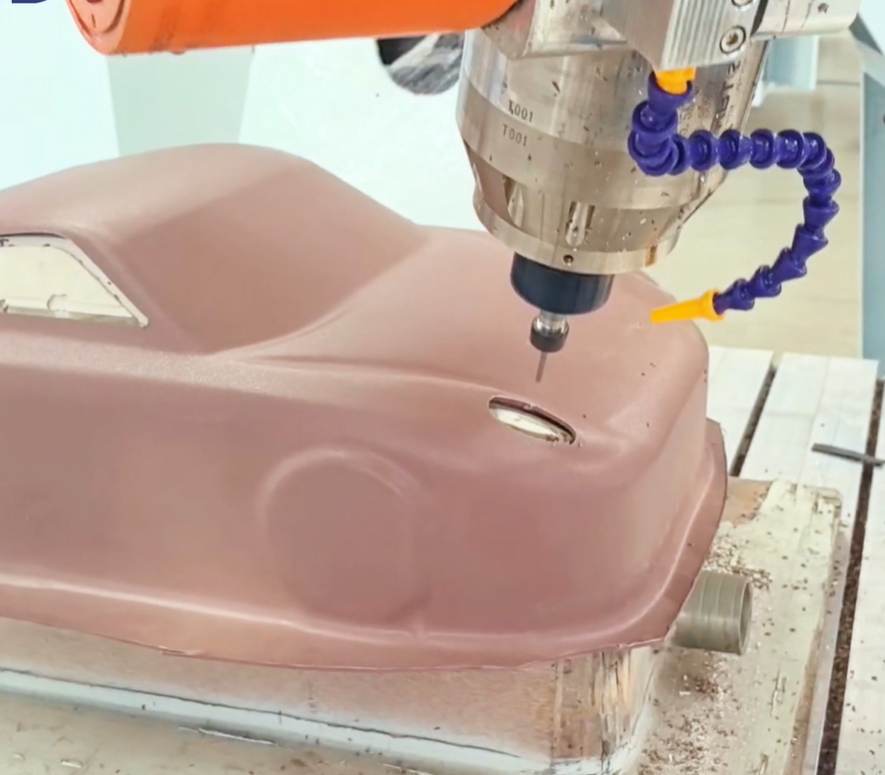

Precision Car Componentry: Expertly crafts detailed car parts with meticulous accuracy.
Rapid Prototyping: Efficiently churns out initial part models for swift testing phases.

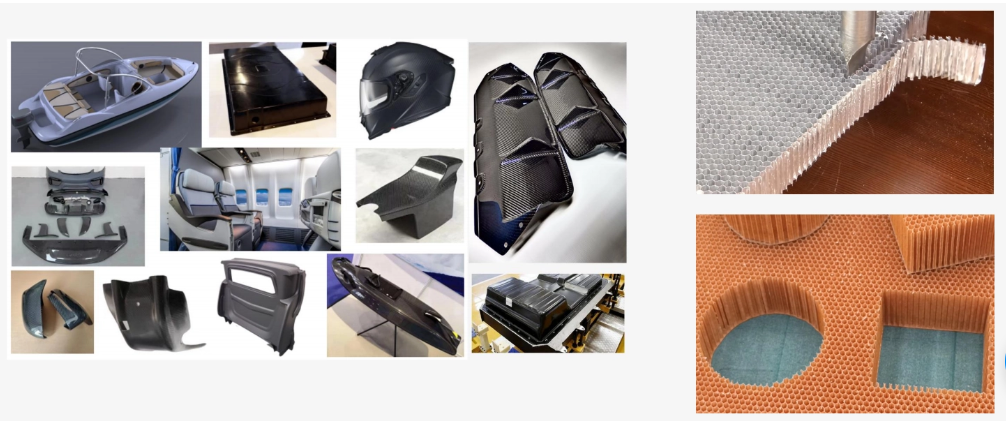

Advanced Material Utilization: Processes lightweight materials such as carbon fiber to enhance vehicle performance.
Aircraft Part Fabrication: Accurately manufactures parts for aviation vehicles, including planes and helicopters.
Robust Material Management: Capably works with durable and lightweight materials specific to aerospace applications.
Strict Standard Adherence: Upholds rigorous aerospace quality and safety benchmarks.
This machine is a key player in making detailed and precise parts for cars and planes, using strong materials and meeting high industry standards.

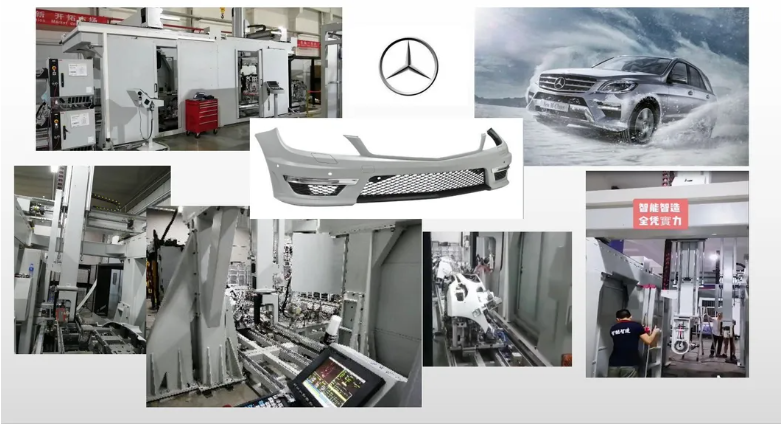

Successful Cases:
