RBT Factory Punching Machine 5 Axis CNC Cutting Router For Composites Material Parts

The RBT 5-axis CNC router can accommodate large-sized and large-capacity workpieces for processing. It is an efficient and high-precision machine capable of processing complex curved surfaces, rotating processing on the C and B axes, and reducing dead corners of complex workpieces.

Size:	510026103982MM
Rated Power:	9.9-29.1KW
Weight:	2900-3500KG
X/Y/Z axis travel:	20003500800mm
Spindle Power:	3-20KW
Control System:	Taiwan Synetc
Availability:

Quantity:



Inquire Add to Basket

Model:
RB-F5-1930--Z08
Brand:
RBT
Code:
8465990000

Product Description

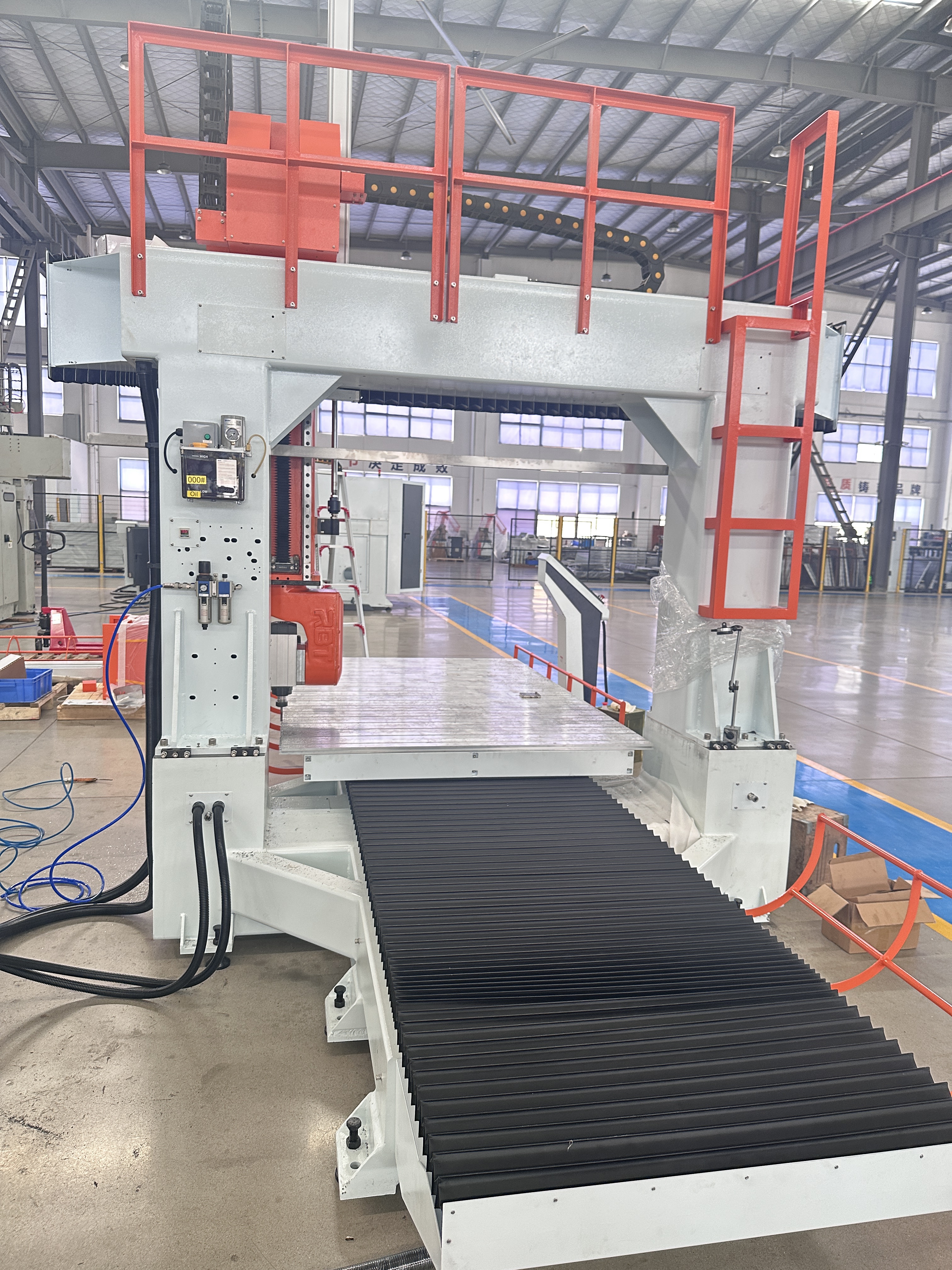

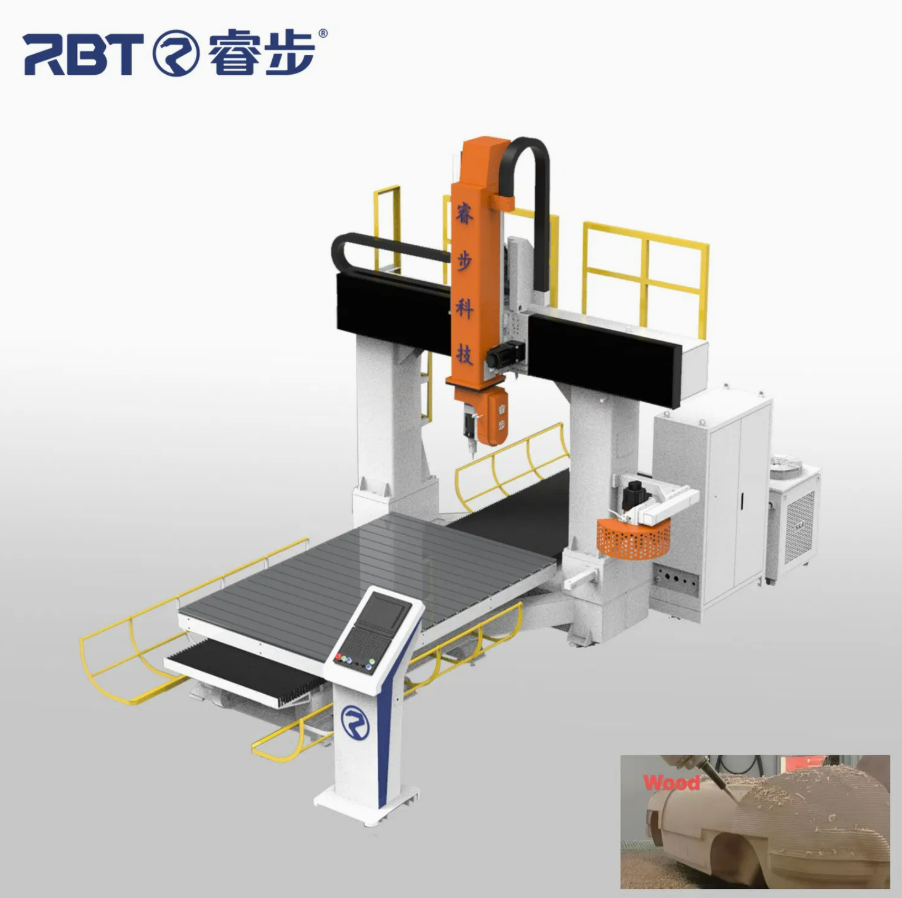

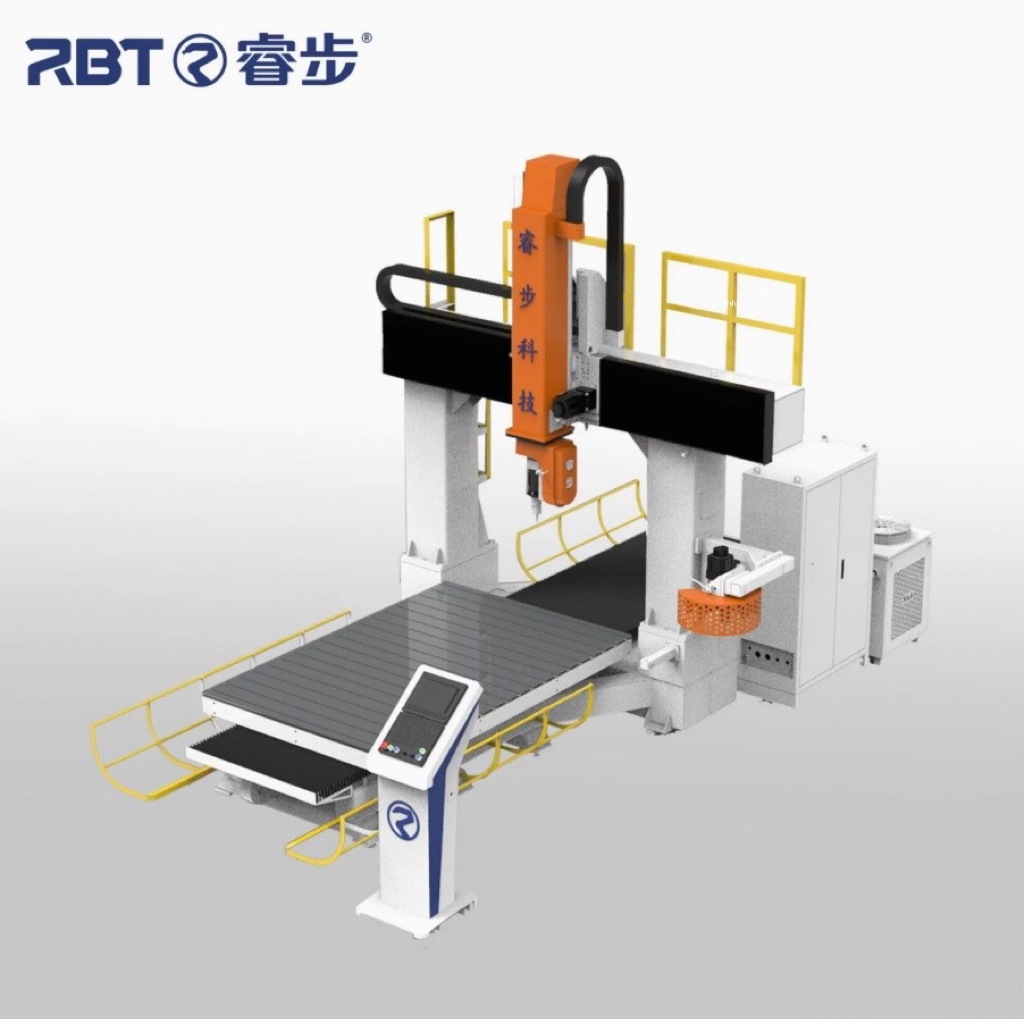

RBT Truss Type 5 Axis CNC Router

(RB-F5-2035-Z08)

1. The system adopts the SYNTEC five_axis linkage CNCsystem,which can complete the production and processing of the entire complex surface of the workpiece in

one process;

2.The work is easy to clamp and no special fixture is needed;

3.C’B_axis rotary processing can reduce the processing dead angle ofcomplex workpieces)

4. High processing precision, efficient and accurate positioning,

5.The equipment combines power, speed and precision,and can be equipped with multiple functions such as dust collection~automatic tool change and RTCP;

6. The actual configuration of the equipment is subject to the technical data~The machine travel can be customized according to the needs of customers.

Technical Parameters of 5 axis cnc machining center

No.	Items	Parameter	No.	Items	Parameter
1	product name	FIVE-AXIS CNC MACHINING CENTER	9	Z axis maximum speed	20m/min
2	model	RB-F5-1930-Z08	10	Repeat accuracy (within 300mm)	±0.05mm
3	X axis effective stroke	1900mm	11	voltage	380V
4	Y axis effective stroke	3000mm	12	total power	14.5KW
5	Z axis effective stroke	800mm	13	spindle power	5.5KW(customizable）
6	B-axis rotation angle	±130°	14	Frequency	50HZ
7	C-axis rotation angle	±540°	15	weight	3.5T
8	X/Y axis maximum speed	35m/min	16	size	L5100W2610H3982mm

Core Technical Advantages

High-Precision Five-Axis Linkage

The B/C axes rotate continuously, supporting high-precision real-time interpolation, making it ideal for freeform surface machining and complex shape milling.
This 5 axis cnc router is engineered for applications that demand maximum accuracy and flexibility.

Integrated Multi-Sided Machining

The multi-angle cutting capability allows operations to be completed in a single clamping, improving efficiency and minimizing cumulative errors.
A perfect solution for industries requiring cnc milling center light alloy processing and cnc milling center composite machining.

High-Speed, High-Rigidity Transmission System

The X/Y/Z axes feature Taiwanese HIWIN high-precision linear guides, ensuring smooth and stable motion control.
The C/B axis utilizes a high-precision Sumitomo (Japan) hollow reducer, enhancing rotational accuracy and durability.

5 axis cnc machine suitable material
