High Speed Multi Axis CNC Machine for Composite Material Processing

It boasts two separate work tables to enhance productivity, enabling one to be loaded or unloaded while the other is in operation.Fitted with a swift spindle for quick material elimination and a sturdy control mechanism for exactness, it is well-suited for an array of substances including plastic, composites, honeycomb, aluminum, wood, foam, resin etc. This sophisticated CNC router guarantees elevated output and exceptional craftsmanship.

|

 Features

1. The system adopts the SYNTEC five-axis linkage CNC system, which can complete the production and processing of the entire complex surface of the workpiece in one process;

2. The work is easy to clamp and no special fixture is needed;

3. C, B-axis rotary processing can reduce the processing dead angle of complex workpieces;

4. High processing precision, efficient and accurate positioning;

5. The equipment combines power,speed and precision, and can be equipped with multiple functions such as dust collection,automatic tool change and RTCP;

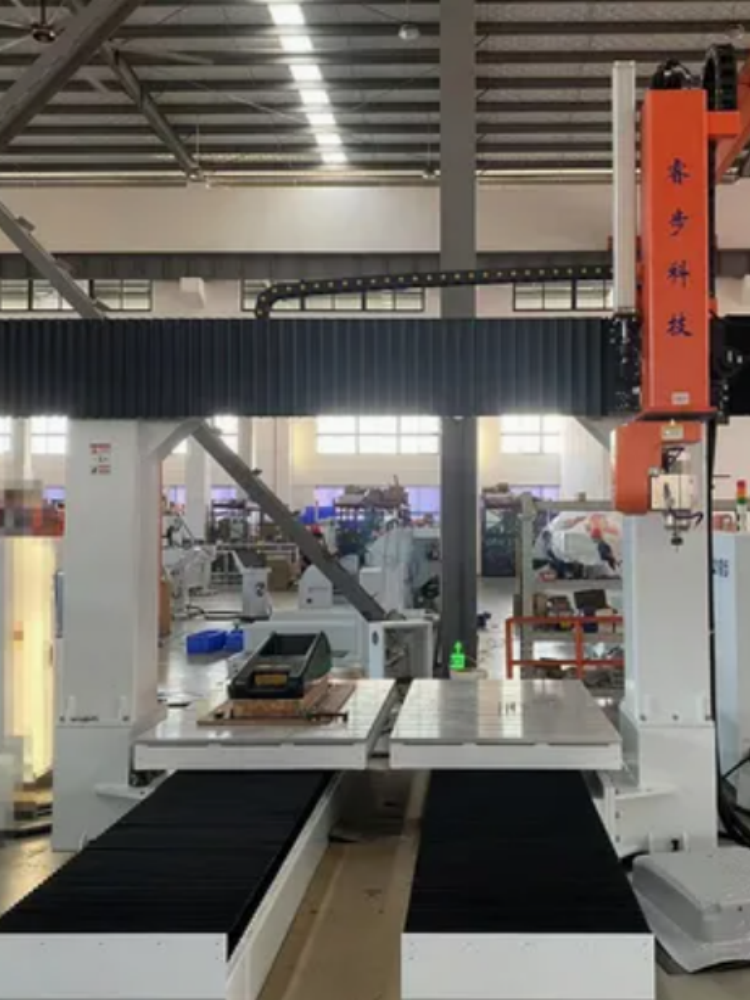

6. There are two independent cutting platforms on the left and right, when changing the processed product one side can keep still. which improves safety and reduces the labor intensity of workers; it can also process large workpieces,and the let and right stations can be processed simultaneously as a single working table and the processing size of a single product is doubled in the X-axis direction;

7. The actual configuration of the equipment is subject to the technical data, The machine travel can be customized according to the needs of customers.

|

 Parameter

Product name	Non-mental 5 axis machining center
Screw	Taiwan TBI
Linear Guide	Taiwan CSK
Rack	Liangchi
Servo	Inovance

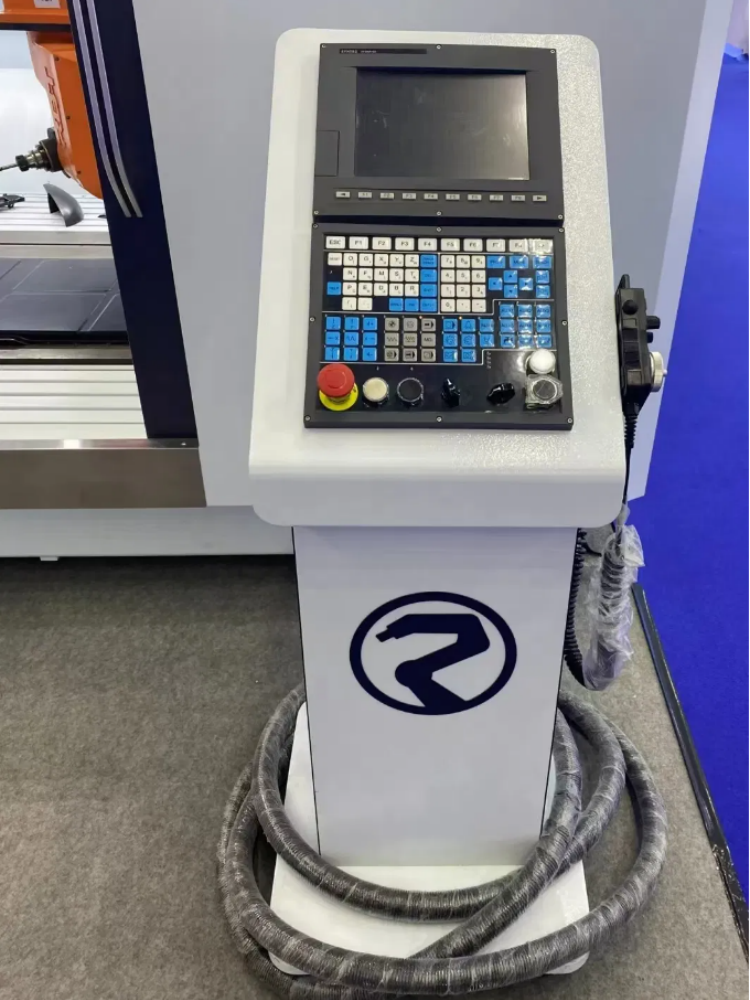

Control System	Taiwan SYNTEC
Electrical components	France* Schneid.er

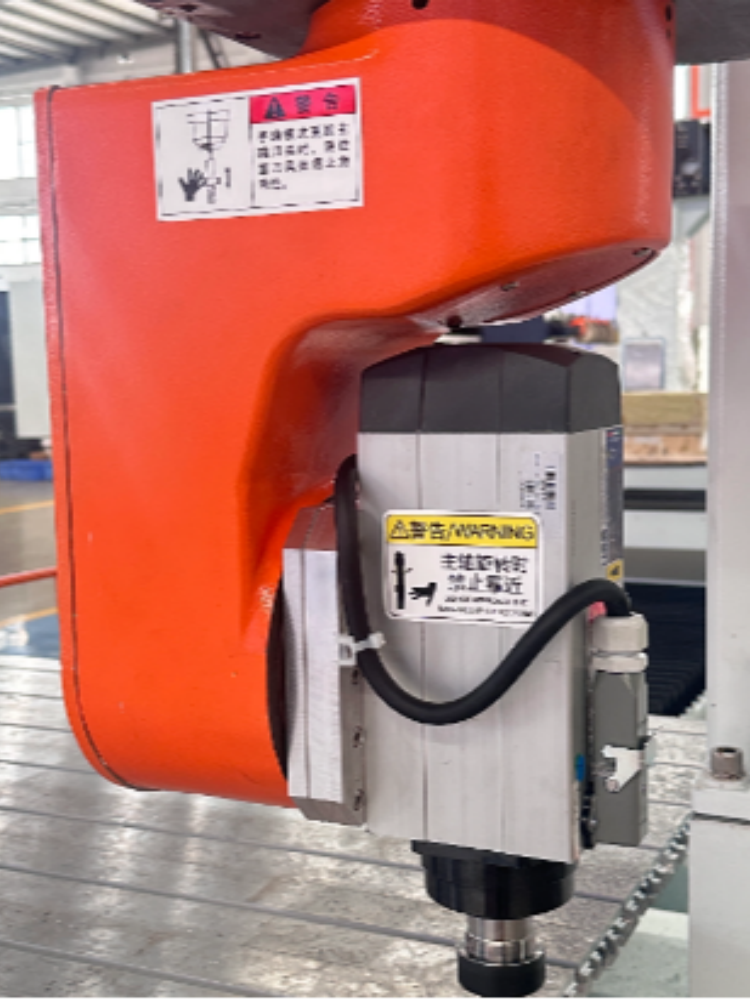

Spindle	RBT
Spindle power	5.5KW/24000rpm/water cooling
Frequency converter	Sinovo
Pneumatic Components	Taiwan AirTAC
X axis reducer	Japan* SHIMPO
B-axis rotation angle	±120°
C-axis rotation angle	±540°
Machine tool repeatability (within 300mm)	±0.05mm
Total power	14.5KW(Subject to the actual equipment)
Frequency	L3482*W3350*H3768mm
Weight	4100GK

Machine Videos



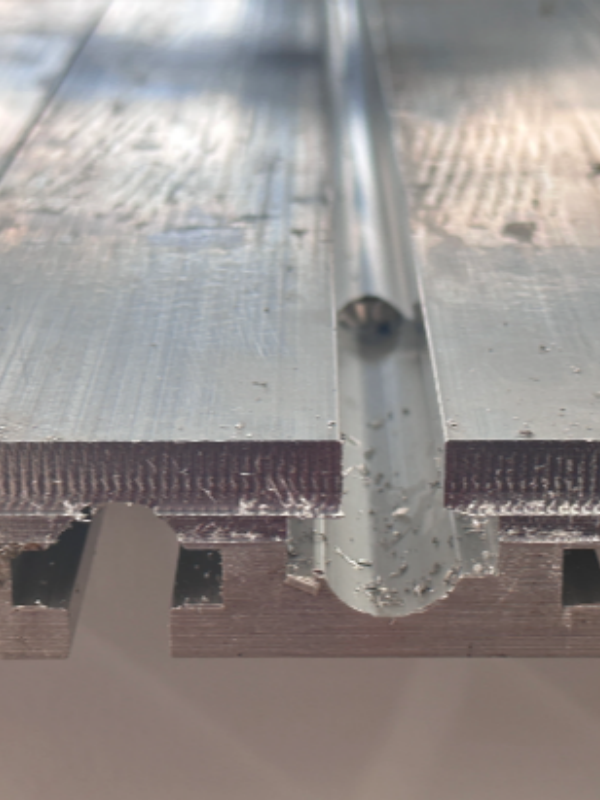

Product Details

CoolingSpindles

Application

Aerospace Industry: Manufacturing of complex and precision-critical components

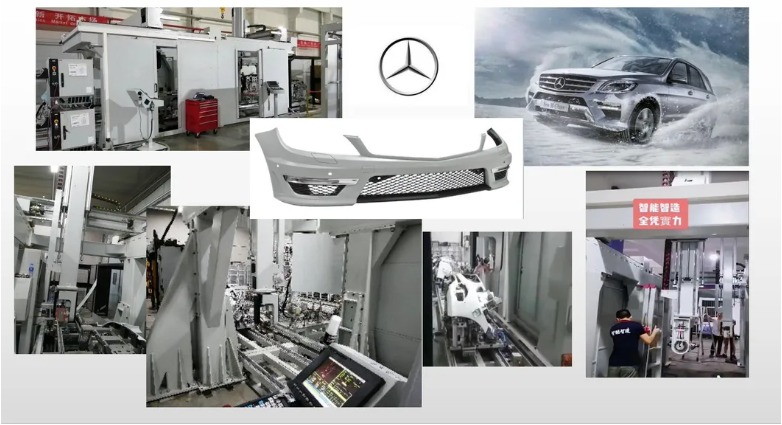

Automotive Industry: Production of intricately designed interior/exterior parts
Medical & Aesthetic Devices: Fabrication of high-precision, ultra-clean components
Mold Manufacturing: Creation of molds with sophisticated geometries
Woodworking Sector: Detailed engraving and contouring on hardwood, MDF, and engineered lumber
Architectural Engineering: Custom fabrication of non-standard structural elements
Signage & Display: Precision cutting of large-format advertising boards and exhibition structures

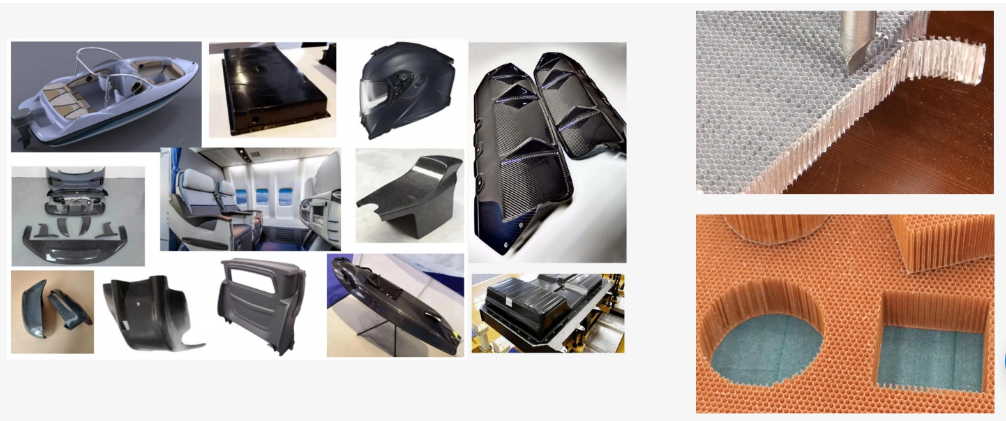

Processable Materials

Thermoformed Plastics/Composites:

• Composite Materials:


• Carbon fiber (PCM/RTM/SMC/LFT processes)

• Glass fiber reinforced polymers (GFRP)

• Carbon-carbon composites




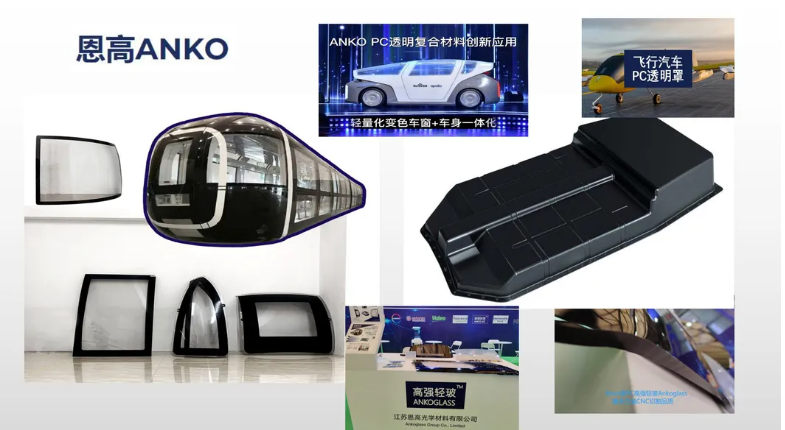

Engineering Plastics:

• ABS, PVC, Polycarbonate (PC), Polypropylene (PP), Polystyrene (PS), Polyethylene (PE), PET, HDPE, PETG,  Acrylic

•


• Non-Metallic Substrates:

• High-density foams / Expanded Polystyrene (EPS), XPS insulation boards / Natural wood, wood-plastic composites (WPC), stone, gypsum

•


• Soft Metals & Hybrid Structures:

• Aluminum alloys / Copper, zinc alloys / Aluminum-paper honeycomb cores
