Twin-Spindle Twin-Table 5-Axis CNC Router for Thermoformed Thermoplastic Composite Parts

The Twin-Spindle Twin-Table 5-Axis CNC Router is designed for machining thermoformed thermoplastic composite parts and complex 3D components. Featuring two independently operable spindles and worktables, it supports simultaneous machining at two separate stations, combined machining of large workpieces, and symmetrical machining of symmetrical parts. This flexible CNC solution helps improve production efficiency and accommodate diverse industrial machining requirements.

Availability:

Quantity:



Inquire Add to Basket

Model:
RB-F10-4057-Z09
Brand:
RBT
Code:
8465990000

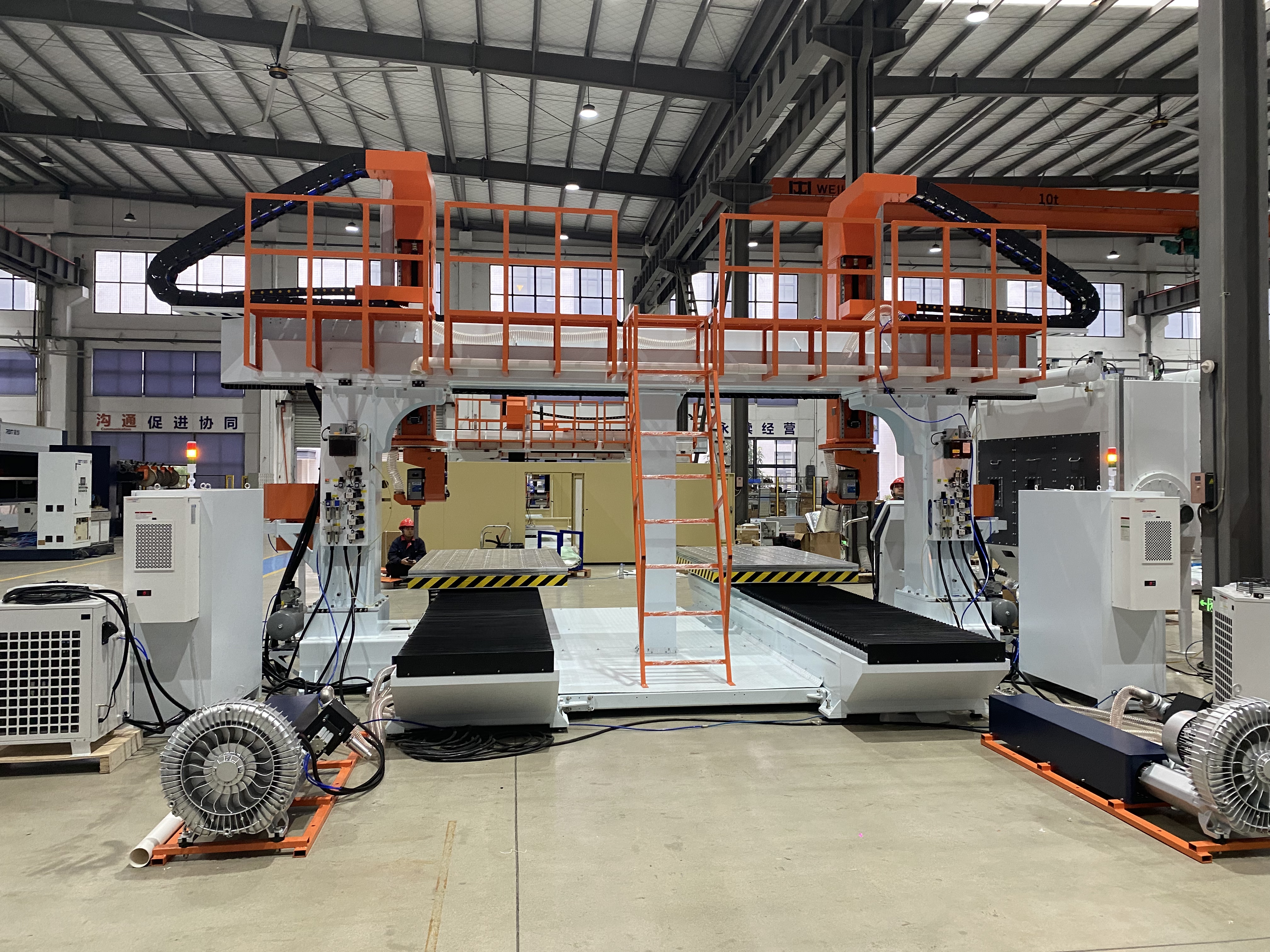

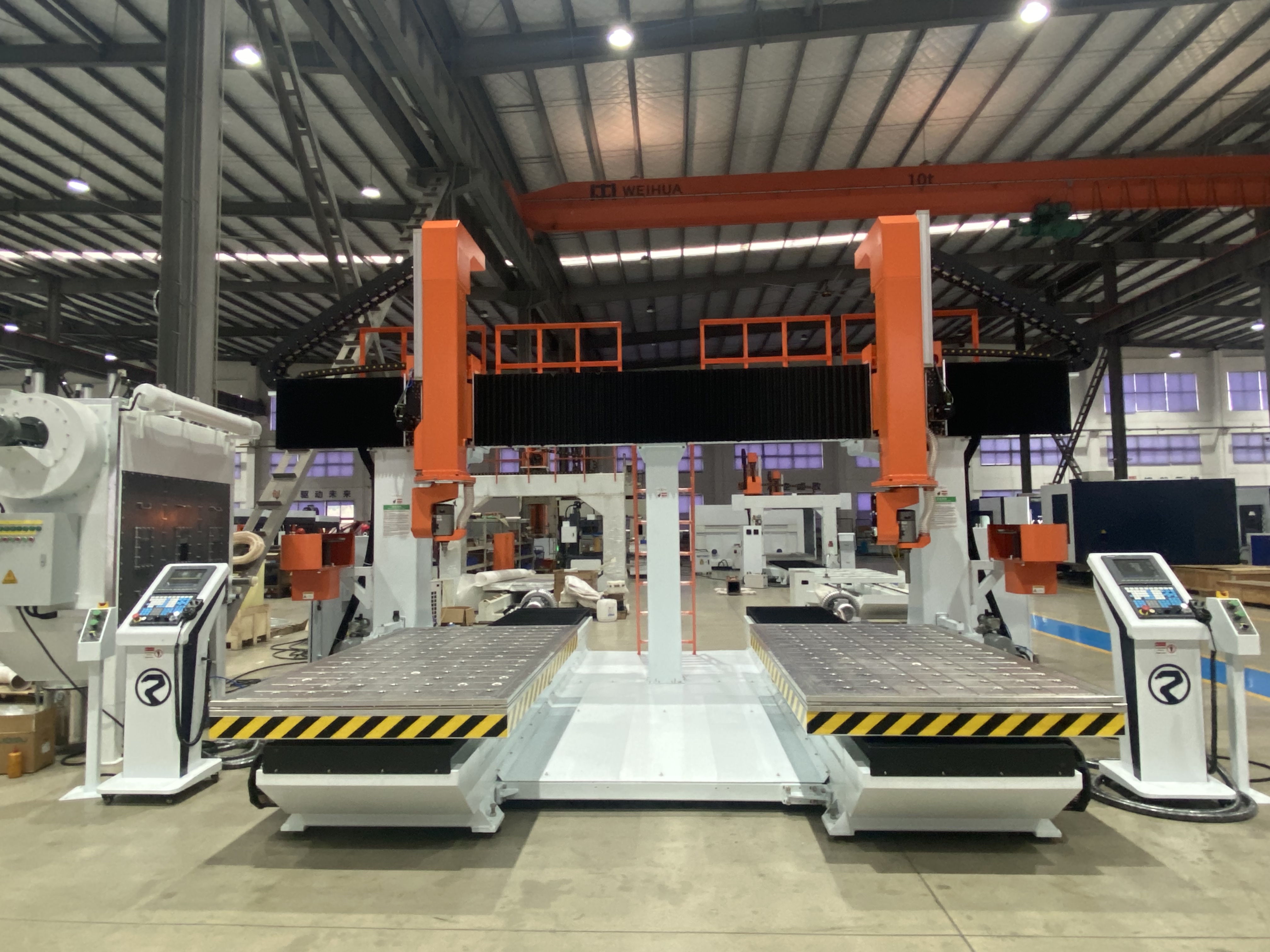

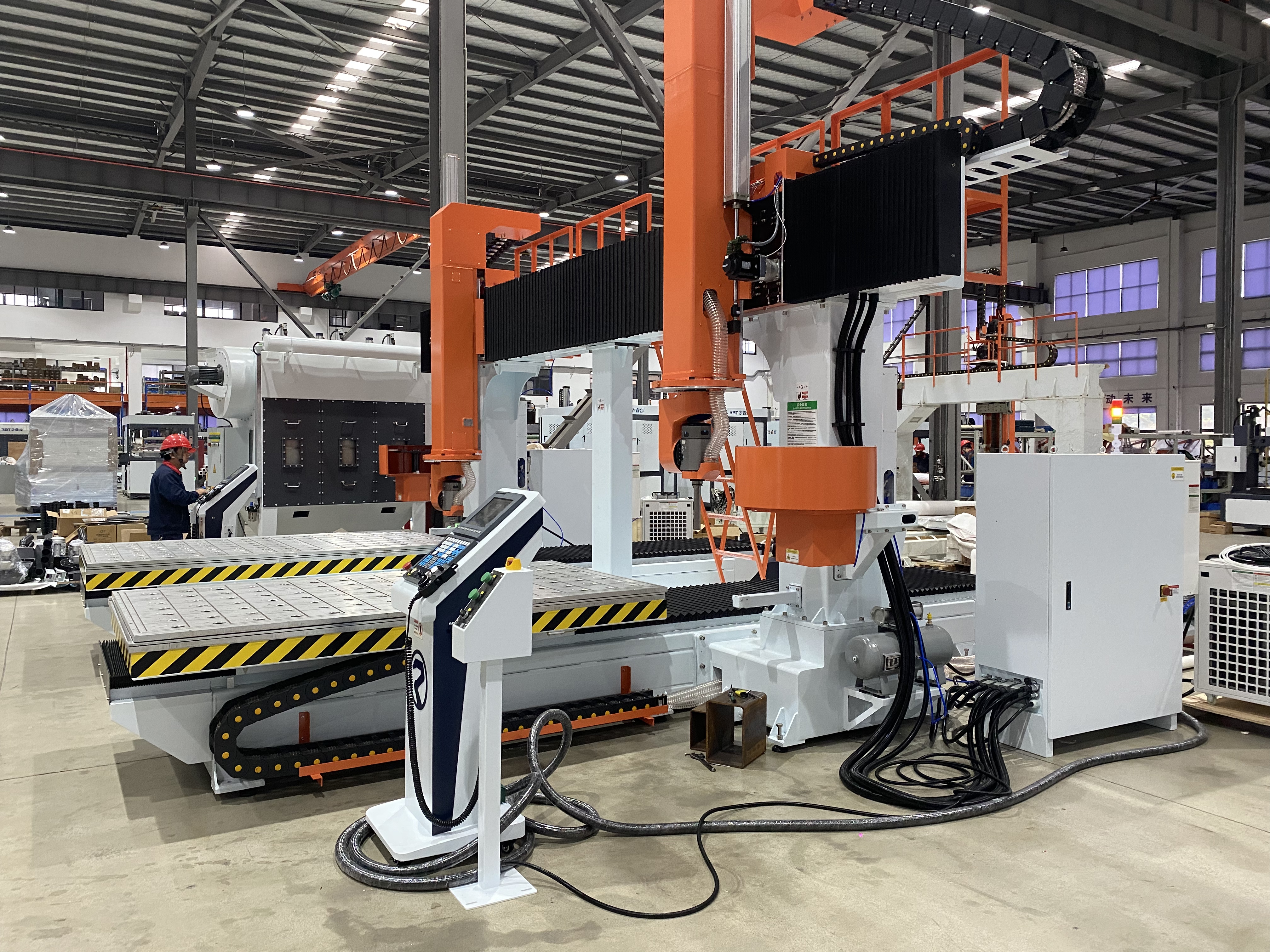

Twin-Spindle Twin-Table 5-Axis CNC Router

Product Overview

The Twin-Spindle Twin-Table 5-Axis CNC Router is a versatile machining solution developed for thermoformed plastic, thermoplastic parts ,composite parts, and complex three-dimensional workpieces. Combining five-axis machining technology with a twin-spindle and twin-table configuration, the machine offers flexible operating modes for different production requirements.

It can operate as two independent five-axis cnc router for simultaneous processing of separate workpieces or switch to a combined machining configuration for large components and Symmetrical machining applications.

Key Features and Advantages

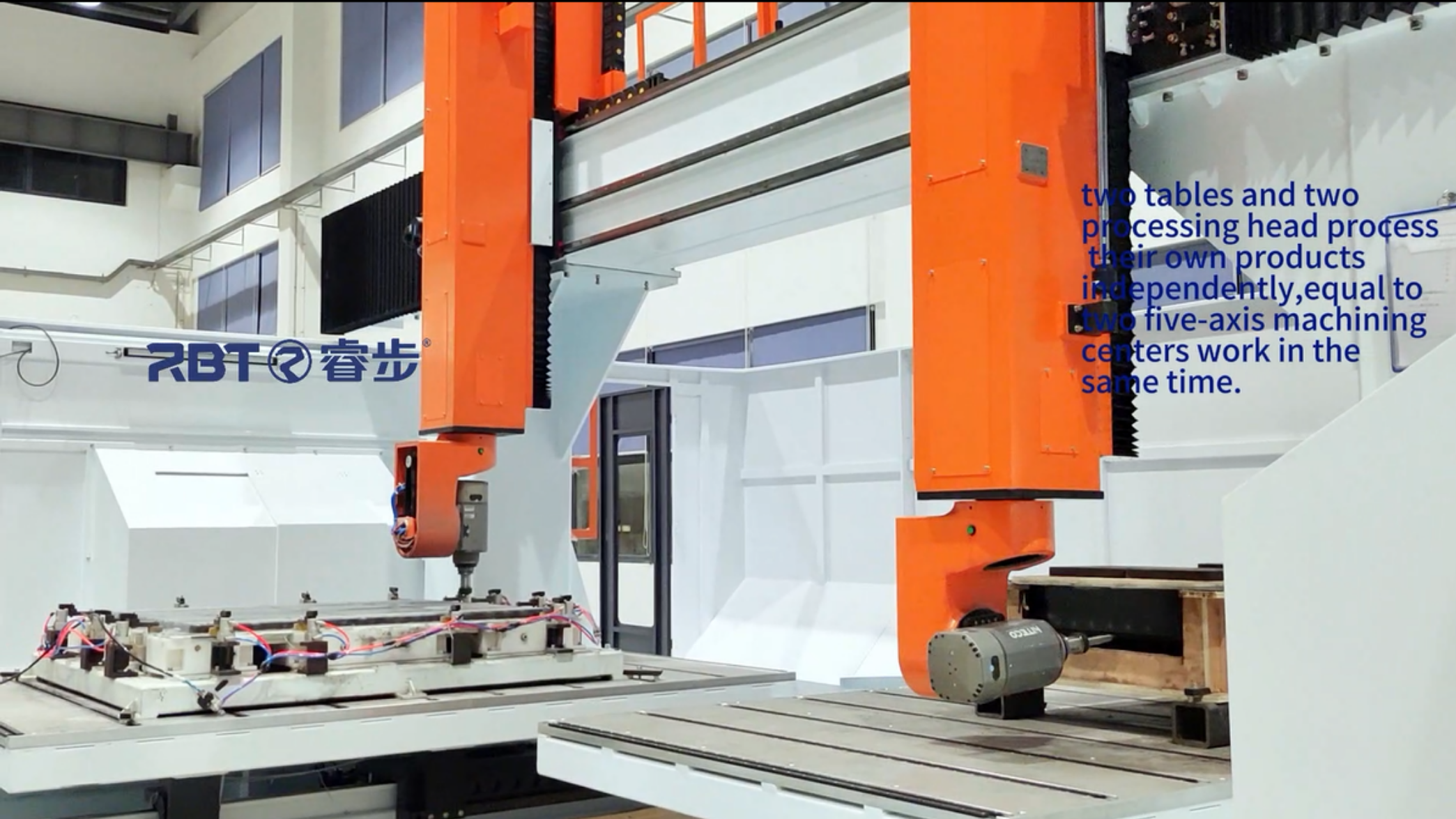

1. Independent Dual-Station Machining

The two spindles and two worktables can operate independently, enabling two separate five-axis machining operations to run simultaneously. This configuration helps increase machine utilization, improve throughput, and reduce production time for suitable applications.

2. Combined Machining for Large Workpieces

The two worktables and spindles can be configured to work together to machine a single large component, subject to the machine's working envelope and configuration. This mode provides greater flexibility when processing large thermoformed plastic parts and thermoplastic composite components.

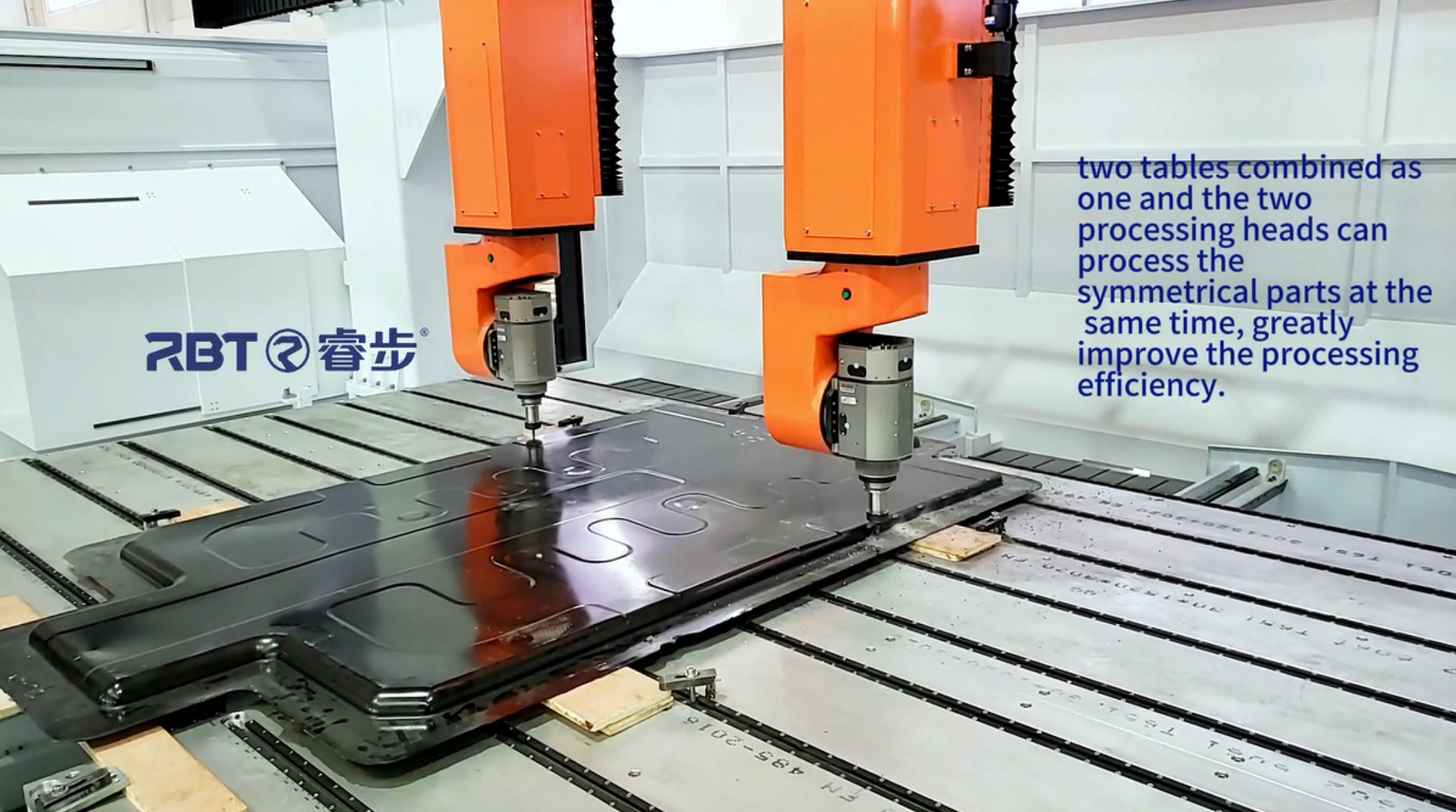

3. Symmertrical Machining for Symmetrical Parts

The machine supports mirror machining for compatible workpieces, making it suitable for producing left-hand and right-hand components or other symmetrical parts. This capability helps streamline machining workflows and improve production consistency.

4. Flexible 5-Axis Machining

Five-axis machining capabilities support complex contours, curved surfaces, multi-angle features, edge trimming, opening machining, and profile finishing on compatible workpieces.

5. Designed for Thermoformed plastic and Composite Parts

The CNC router is suitable for machining compatible thermoformed parts, thermoplastic parts, composite parts, formed plastic panels, covers, housings, and other complex three-dimensional components.

Technical Parameters

No.	items	parameter	No.	items	parameter
1	product name	5-axis CNC Router with twin table & spindle	9	Z axis maximum speed	20m/min
2	model	RB-F10-4057-Z09	10	Repeat accuracy (within 300mm)	±0.05mm
3	X axis effective stroke	4000mm	11	voltage	380V
4	Y axis effective stroke	5700mm	12	total power	19.15-35KW
5	Z axis effective stroke	900mm	13	spindle power	5.5-22.3KW(customizable）
6	B-axis rotation angle	±120°	14	Frequency	50HZ
7	C-axis rotation angle	±540°	15	weight	15T
8	X/Y axis maximum speed	35m/min	16	size	900068004250mm

Typical Applications

• Thermoformed thermoplastic composite parts

• Automotive interior and exterior components

• Formed plastic panels and covers

• Large composite components

• Left-hand and right-hand symmetrical parts

• Industrial housings and custom-shaped components

Structural parts CNC machining in industries such as aerospace, railway, automotive interior and exterior parts,energy and building, marine, packing, medical, patterns and moulds, sanitary ware.
