Scaling non-metal production typically forces manufacturers into a tight corner. You usually have to choose between buying more single-spindle machines or outsourcing entirely. Adding more equipment quickly consumes your available floor space. Sending parts to external vendors often introduces severe quality control issues. A 5 Axis CNC Machining Center equipped with dual spindles offers a powerful lateral scaling option. It effectively doubles your throughput within a very similar footprint. You can keep production in-house without requiring a massive facility expansion. This guide evaluates the true mechanical advantages of this technology. We will explore material-specific capacity gains for composites, plastics, and wood. You will also learn about the practical implementation realities of upgrading to dual-spindle systems for non-metal manufacturing.
Capacity Multiplier: Synchronous and pendulum processing modes allow for continuous cutting and zero-downtime part loading.
Footprint Efficiency: Yields nearly 200% of the output of a standard 5-axis machine while requiring only 120-130% of the floor space.
Material Suitability: Ideal for low-resistance, high-volume non-metals that require high RPM rather than heavy spindle torque.
Implementation Barrier: Requires advanced CAM software capabilities to manage complex toolpaths and prevent double-head collision scenarios.
High-volume non-metal parts usually feature highly complex, multi-sided geometries. Aerospace composite panels require intricate edge trimming. Thermoformed plastic shells need fast, precise cutouts. Custom furniture components demand detailed contouring across multiple faces. These complex shapes expose the sheer limitations of traditional machining solutions.
Standard 3+2 axis machines almost always require multiple setups. Operators must manually stop the machine and flip the part. This drastically increases your overall handling time. It also introduces potential alignment errors between each new setup. You lose valuable production minutes every single time the doors open.
Single-spindle 5-axis machines eliminate those manual flips. However, they eventually hit a hard capacity ceiling. This limit is based strictly on absolute cycle times. A single spindle can only move so fast through material. You simply cannot push the cutting tool faster indefinitely. Increasing feed rates too much sacrifices surface finish. Tool chatter becomes a severe issue at excessive speeds. In heat-sensitive materials like acrylics or polycarbonates, aggressive cutting causes thermal deformation. The plastic melts rather than shearing cleanly.
Evaluating a new scaling solution requires clear success criteria. You must focus on reducing overall cycle times fundamentally. You also need to maximize actual spindle uptime. The ultimate goal is minimizing operator intervention. Importantly, you must achieve all this without compromising dimensional accuracy.

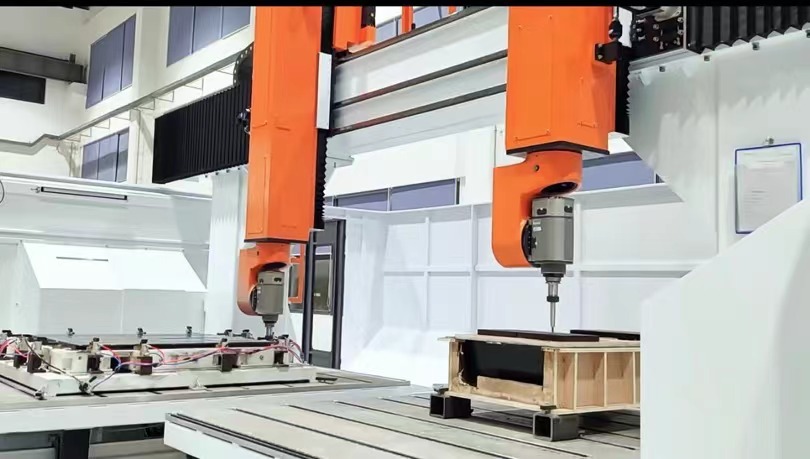

How does a Dual Spindle 5 Axis CNC Machine actually work? It primarily uses synchronous processing to duplicate cutting efforts. Both heads operate simultaneously on a single massive gantry. They follow identical toolpaths to produce two identical parts at once. Some advanced controllers even allow mirrored cutting. This mirrored approach is perfect for manufacturing left-hand and right-hand aerospace components simultaneously. Synchronous operation cuts the per-part cycle time by roughly 45 to 50 percent.
Pendulum processing takes production efficiency even further. Technicians often call this zoned machining. It utilizes two completely separate zones on the machine bed. The spindles actively cut material in Zone A. Meanwhile, the operator safely unloads finished parts from Zone B. Once Zone A finishes, the gantry shifts immediately to Zone B. This virtually eliminates non-cutting idle time. Typical spindle utilization jumps from around 60 percent up to 90 percent or more.
Non-metal processing demands high spindle speeds rather than heavy cutting torque. Materials like tooling foam and fiberglass require 20,000 to 24,000 RPM. Dual spindles capitalize perfectly on this specific requirement. They utilize lighter, high-speed routing motors. These lighter motors do not overburden the primary gantry structure. The machine maintains incredible agility during rapid directional changes.
Performance Metric | Standard Single Spindle 5-Axis | Dual Spindle 5-Axis Machine |
|---|---|---|
Spindle Utilization Rate | 50% - 60% | 90%+ (Pendulum Mode) |
Part Yield per Cycle | 1 Part | 2 Parts (Identical or Mirrored) |
Operator Intervention | High (Wait times for loading) | Low (Continuous parallel loading) |
Ideal Material Type | Metals & Non-Metals | Low-Resistance Non-Metals |
Composite materials like carbon fiber present very unique challenges. Abrasive wear and severe dust generation cause constant headaches on the shop floor. Processing two identical aerospace panels simultaneously doubles your output. Furthermore, symmetrical dust extraction shrouds on both heads manage particulates efficiently. This keeps the working environment safe and the machine kinematics clean.
Thermoformed plastics and polyurethane foams behave very differently. Trimming complex 3D contours without melting the material is difficult. A Double Head 5 Axis CNC Machine solves this beautifully. It allows for rapid, continuous 5-axis contouring on large thermoformed sheets. You can easily turn a standard 20-minute trim cycle into a 10-minute double-yield cycle. The high-speed routing prevents heat buildup along the cut edge.
Wood and MDF production requires incredibly high volume throughput. It often involves varying deep-pocket routing operations. Upgrading to dual spindles enables perfect dual-part nesting. You drastically reduce the time required for architectural millwork. Modular furniture components roll off the machine twice as fast. You achieve identical edge finishes on both nested sheets simultaneously.
Always use specialized compression routers for wood to prevent edge splintering on both heads.
Install anti-static extraction hoses when machining polyurethane foams to prevent dust clinging.
Monitor diamond-coated tool wear equally across both spindles when cutting abrasive carbon fiber.
Evaluating your return on investment requires analyzing three main operational pillars. We look closely at floor space, power consumption, and labor efficiency. You must look beyond just the initial machine price tag.
The Footprint-to-Yield Ratio: Compare one dual-spindle machine against two independent 5-axis machines. The dual system provides nearly 200 percent of the output. However, it only requires about 120 to 130 percent of the floor space. This ratio saves massive amounts of expensive factory real estate. You can reserve remaining floor space for assembly or packaging lines.
Capital Expenditure (CapEx) vs. Operating Expenditure (OpEx): A dual-head system definitely costs more upfront than a single-head machine. Yet, it costs significantly less than buying two separate machines. You also save heavily on daily operating expenditures. The setup consolidates vacuum pumps, CNC controllers, and chiller units. Everything runs through a single power draw. You pay for one infrastructure setup instead of two.
Maximum Labor Utilization: One skilled operator can easily manage double the output. They focus strictly on loading and unloading during pendulum cycles. They never have to run back and forth across the shop floor. They only monitor a single human-machine interface (HMI). This reduces operator fatigue and minimizes human error.
Programming complexity is the largest barrier to entry. Your CAM software must fully support multi-spindle simulation. This prevents catastrophic collisions inside the machine envelope. Avoiding crashes is absolutely crucial during aggressive 5-axis simultaneous tilting. The post-processors must be flawlessly configured for dual-head kinematics. If the software lacks dual-head awareness, programming becomes a dangerous guessing game.
Tool length and fixturing variances also pose a significant risk. You must measure and compensate both tools precisely. A tiny 0.1mm variance in tool length between Spindle A and Spindle B is dangerous. It can cause immediate tolerance failures on one of the paired parts. Automatic tool presetters are mandatory for dual-spindle operations. Manual touching off is simply too inaccurate.
Gantry rigidity is another crucial factor. Adding a second 5-axis head significantly increases the weight on the Z and Y axis bridge. Buyers must verify the machine frame is heavily engineered. Look for heavily ribbed steel or solid cast iron designs. Weak gantries will flex under the rapid directional changes. This flex maps unwanted vibration directly onto the part surface.
Assuming standard 3-axis CAM software can be easily patched to run synchronous 5-axis toolpaths.
Neglecting to calibrate the rotational center point identically for both spindle heads.
Using mismatched tool holders, causing varying runout levels between the two spindles.
Assess your part mix honestly before making a purchase. Ensure your production volume actually consists of identical or mirrored parts. This high volume of similarity is necessary to justify synchronous processing. If every part you produce is totally unique, single spindles might serve you better. Dual spindles thrive on repetition.
Evaluate the controller capabilities carefully. Look for industry-standard controllers like FANUC, Siemens, Heidenhain, or Osai. They must feature native multi-channel or multi-spindle support. Proprietary, unproven controllers often struggle to synchronize complex 5-axis motion smoothly. You need proven architecture running the machine.
Verify your dust and chip extraction capacity. Dual spindles naturally create double the debris per minute. Ensure your facility's vacuum system can handle the sharply increased CFM requirements. Inadequate extraction leads to recutting chips, which destroys surface finish and ruins tools prematurely.
Your next action step is simple. Request a time-study and a digital twin simulation from the machine tool builder. Use your most common, highest-volume part for this test. A reputable manufacturer will gladly prove the cycle time reduction before you sign anything.
Dual spindle technology is not just a generic machine upgrade. It acts as a highly targeted capacity multiplier. It is built specifically for high-volume, continuous non-metal manufacturing. By utilizing synchronous and pendulum processing, you effectively double your output. You achieve this while saving valuable floor space and consolidating power consumption. You maximize your labor efficiency by keeping operators constantly engaged in loading rather than waiting.
We highly recommend aligning your CAM software capabilities early. Train your operators thoroughly before finalizing the machine specification. This proactive approach ensures an immediate return on investment upon installation. Prepare your fixturing and dust extraction systems in advance. When deployed correctly, dual spindles completely transform your non-metal production bottleneck into a major competitive advantage.
A: Generally, no. While independent Z-axis control is possible, X and Y movements are typically shared on the exact same gantry. It is specifically designed for producing identical or perfectly mirrored parts synchronously.
A: Yes, it is more challenging. It requires CAM software capable of advanced simulation and complete kinematic awareness. This prevents the two heads from interfering with each other or striking the trunnion table during full 5-axis simultaneous motion.
A: In non-metals, it does not sacrifice accuracy. However, precise tool presetting and robust gantry engineering are strictly required. You must monitor thermal expansion and tool wear equally on both spindles to maintain identical tolerances across both parts.
