Scaling marine composite manufacturing requires a fundamental shift in production philosophy. You must move away from manual plug building and localized modifications. Repeatable, high-tolerance automated machining is now the industry standard. High-performance production dictates this necessary evolution.
Modern hull designs grow increasingly complex every year. Traditional hand-shaping and standard 3-axis routers hit severe limitations rapidly. They fail when handling deep undercut reaches, steep draft angles, and premium surface finishes. Material costs for carbon fiber and advanced epoxies keep rising. This makes manual errors and material waste entirely unacceptable.
Integrating a 5-axis solution bridges the critical gap between digital CAD/CAM models and physical reality. It slashes your labor dependency while cutting material waste significantly. You gain unparalleled precision on complex marine geometries in a fraction of the time.
This guide provides a vendor-neutral evaluation framework. Shipyards and mold makers transitioning to this technology will find actionable insights here. We cover equipment comparisons, specification requirements, and implementation realities.
Efficiency over Tradition: Transitioning from manual lofting and 3-axis routing to full 5-axis capabilities eliminates multiple machine setups and reduces plug-to-mold production time by up to 60%.
Robots vs. Gantry: While 6-axis milling robots offer vast working envelopes, a dedicated 5 axis CNC machining center provides the superior rigidity and tight tolerances necessary for marine mold manufacturing and direct tooling.
Material Reality: Effective fiberglass component machining requires specialized dust extraction, enclosed linear guides, and abrasive-resistant tooling to protect both the machine and the operators.
Implementation Sunk Costs: Hardware is only half the investment; success hinges on acquiring robust CAM software and upskilling operators for multi-axis continuous toolpaths.
Building manual plugs carries heavy hidden costs. You face extensive man-hours for every single project. Inconsistent symmetry plagues hand-shaped hulls constantly. High material waste hurts your project profitability. Furthermore, manual sanding and shaping exact a severe physical toll on workers. Airborne fiberglass dust and toxic resin fumes create hazardous environments. Relying on master craftsmen for basic geometric accuracy is no longer sustainable. You need predictable, engineered outcomes rather than craft-based guesswork.
Standard 3-axis machines lack the necessary articulation for modern designs. They require multiple part re-orientations for complex marine geometries. Think about deep V-hulls, stepped hulls, and intricate deck molds. Re-orienting massive parts leads to indexing errors immediately. These errors compound your tolerances rapidly. You end up with mismatched seams and poor fits. Additionally, 3-axis routers leave prominent stair-step marks on steep curves. Workers must spend days manually sanding these marks away. This manual intervention introduces human error back into your digital workflow.

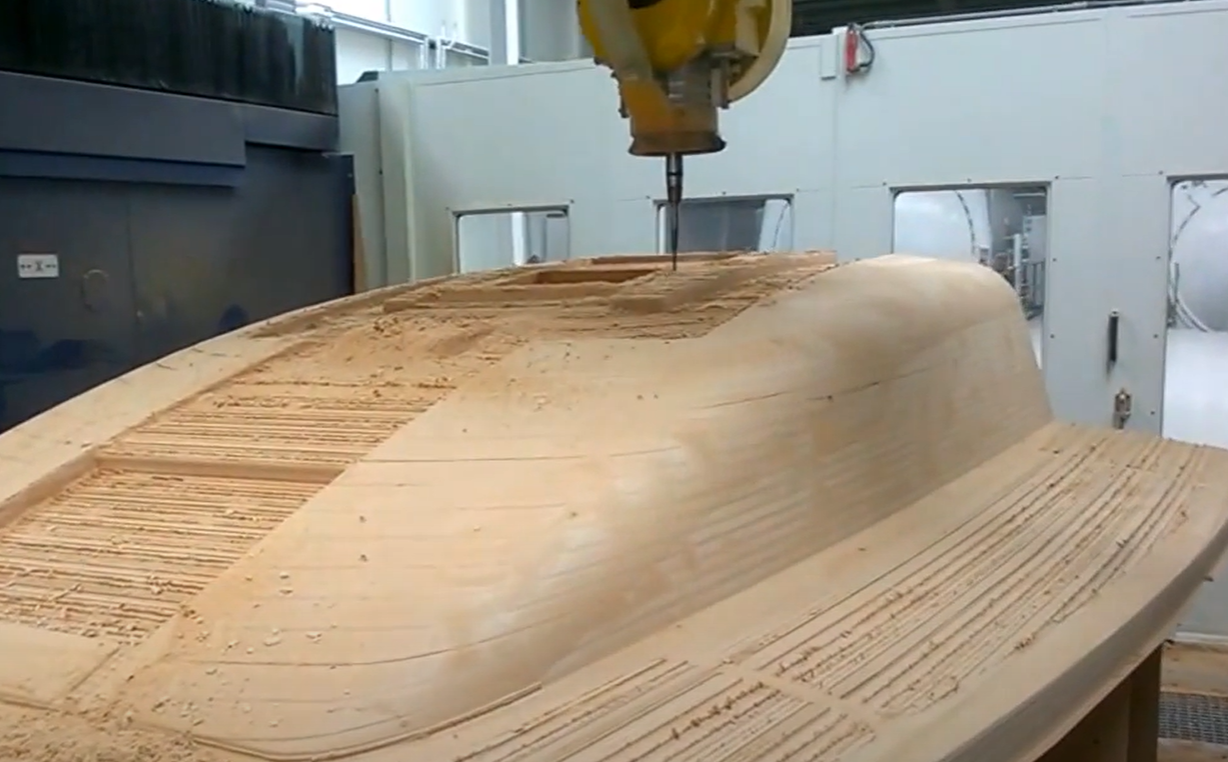

Upgrading to continuous 5-axis movement changes everything. You can process complex undercuts and sheer lines easily. A 5 axis cnc machining center handles steep draft angles in a single setup. This capability drastically improves your surface finish straight off the machine. It ensures perfect port and starboard symmetry on the final vessel. You eliminate secondary operations almost entirely. Your digital design translates flawlessly into the physical mold.
We must acknowledge the unique appeal of milling robots. They offer extreme flexibility for manufacturers handling massive parts. Robotic arms mounted on linear tracks provide extended reach for large hulls. They generally require lower initial capital expenditure compared to massive gantry machines. For tasks needing vast working envelopes, robots seem incredibly attractive on paper. They navigate around complex geometries smoothly. Many shipyards initially explore robots for trimming lightweight composites.
Despite robotic flexibility, traditional gantry CNCs win decisively in marine mold manufacturing. Gantry systems offer significantly superior stiffness. They resist tool deflection effectively when cutting dense tooling boards. You need this rigid volumetric accuracy to hit strict design tolerances. Articulated robot arms simply cannot match a heavy gantry's rigidity. When a robot arm extends fully, it loses stiffness. This causes chatter marks and dimensional inaccuracies on your master plugs. Gantry machines maintain consistent precision across their entire cutting envelope.
To clarify this structural debate, we can evaluate the deployment scenarios based on specific production goals. Review the decision matrix below to align your hardware choice with your operational requirements.
Application Requirement | 6-Axis Milling Robot | 5-Axis Gantry CNC |
|---|---|---|
Primary Use Case | Trimming lightweight, pre-molded fiberglass parts or rough foam shaping. | Machining master plugs and direct-to-mold tooling. |
Tolerance Levels | Loose tolerances (+/- 1.0mm to 3.0mm depending on reach). | Strict GD&T compliance (+/- 0.1mm to 0.5mm across large spans). |
Material Density | Low-density EPS foams and thin cured composites. | High-density polyurethane blocks, epoxy pastes, and thick composites. |
Structural Rigidity | Lower; susceptible to chatter when fully extended. | Extremely high; closed-frame structure prevents deflection. |
Massive parts require massive vertical clearance. You need a Z-axis stroke ranging from 1.2 to 2.5 meters. Sometimes, you need even more. This accommodates deep drafts of boat hulls without collision. Deck superstructures also demand extensive overhead space. A short Z-axis severely limits your production capabilities. It forces you to slice models into smaller sections. Reassembling these sections manually destroys your precision. Always specify your gantry clearance based on your tallest anticipated deck mold.
Always evaluate continuous horsepower versus peak horsepower. Spindle power dictates your machining strategy completely. High RPMs are absolutely needed for smooth finishing passes. Spindles hitting 24,000 RPM deliver flawless surfaces on tooling pastes. Conversely, high torque is required for roughing out dense polyurethane blocks. Your spindle must handle both extremes efficiently. Liquid-cooled spindles perform best during these prolonged roughing cycles. They prevent thermal expansion from distorting your tool center point.
A boat building cnc operates in a highly abrasive environment. Airborne dust destroys standard electronics quickly. You must evaluate pressurized or bellow-covered linear rails. Demand high-CFM dust collection hoods surrounding the spindle. Complete cabinet sealing prevents fine particulates from ruining sensitive ball screws. Without aggressive dust mitigation, your maintenance costs will skyrocket. Guideways will score, and precision will degrade within months.
Compare industry-standard controllers carefully before purchasing. Look closely at FANUC, Siemens, or OSAI systems. Evaluate their block-processing speeds for complex surface codes. High look-ahead capabilities guarantee smooth surface finishes. They process thousands of lines of code ahead of the toolpath. This prevents the machine from stuttering on sweeping marine curves. Advanced TCP (Tool Center Point) management is also critical here. It ensures the tool tip stays exactly on the programmed path during simultaneous multi-axis rotation.
Hardware means nothing without advanced CAM software. Programs like Mastercam or Powermill drive these complex machines. You also need a perfect post-processor to translate code accurately. Prepare for a steep learning curve. Operators must program continuous multi-axis toolpaths safely. You cannot treat a 5-axis machine like a 3-axis router. Collision avoidance simulation is mandatory before running any job. Crashing a spindle into a heavy gantry costs tens of thousands of dollars. Invest heavily in software training upfront.
Modern marine materials destroy standard carbide tooling incredibly fast. Effective fiberglass component machining requires specialized equipment. Discuss the necessity of PCD (Polycrystalline Diamond) tooling with your vendors. PCD resists abrasion significantly better than solid carbide. You must also implement localized cooling strategies. Compare targeted air blast systems against minimal quantity lubrication (MQL). Liquid coolants often contaminate tooling boards. Therefore, high-pressure cold air is usually preferable. Implement strict tool-life management systems within your controller. This prevents sudden tool breakages from ruining expensive mold surfaces.
Multi-axis gantries demand heavy infrastructure. You cannot place these machines on standard warehouse floors. You need reinforced concrete foundations. Sometimes, these pads must be 12 to 18 inches thick. This prevents machine settling over time. Sinking floors ruin volumetric accuracy permanently. Climate-controlled environments are equally vital for thermal stability. Large tooling blocks and machine gantries expand with heat. A ten-degree temperature swing can warp a 40-foot hull mold out of tolerance. Finally, secure a robust, dedicated 3-phase power supply for uninterrupted operations.
Never rely on generic demo files for estimates. Instruct buyers to request specific cycle time estimates from vendors. Submit your actual CAD models for these tests. This reveals the true processing speed of the controller. Different machines handle complex NURBS surfaces differently. A time study proves which machine actually accelerates your production. Hold vendors accountable to these estimated times.
Demand a physical test cut before signing anything. Supply your specific production materials for this trial. Test your proprietary epoxy paste, high-density foam, or cured fiberglass. Verify the final surface finish personally. Measure the actual tool deflection under real loads using dial indicators. A machine might look rigid on paper but vibrate heavily during a test cut. This physical verification mitigates your purchasing risk entirely.
Hardware inevitably breaks down under heavy use. Evaluate the vendor’s domestic parts availability thoroughly. Check their remote diagnostic capabilities. Many modern machines allow technicians to log in remotely and fix software faults. Ask about typical response times for technician dispatch. Shipyard downtime directly dictates your project profitability. You cannot afford to wait weeks for imported parts to arrive via ocean freight.
Follow this checklist to structure your procurement process effectively:
Audit your current plug-to-mold lead times to establish a baseline.
Request tailored CAM software demonstrations using your own hull designs.
Perform physical test cuts on your proprietary composite materials.
Negotiate clear Service Level Agreements encompassing remote support and part delivery.
Verify facility infrastructure requirements, including foundation depth and power availability.
Upgrading to a marine composite cnc represents a fundamental shift in shipyard capability. Manufacturers move definitively from craft-based variation to engineered predictability. You gain absolute control over mold symmetry, surface finish, and design tolerance. This technology removes the physical bottlenecks associated with manual lofting.
The upfront hardware investment is undeniably substantial. The software learning curve requires serious commitment from your team. However, the dramatic reduction in labor hours justifies the transition. You eliminate extensive manual re-work entirely. High-volume and high-value boat builders can iterate designs rapidly. You bring better vessels to market faster than competitors relying on legacy methods.
Begin your transition today by auditing your current plug-to-mold lead times. Identify exactly where manual labor slows you down. Consult with premium CAM software providers early in the process. Secure their input on machine compatibility before finalizing any hardware specifications. A well-planned implementation guarantees long-term manufacturing success.
A: Yes, but it requires highly abrasive-resistant tooling like PCD. High-speed spindles are also necessary. You must integrate critical dust extraction systems. This handles the abrasive dust without damaging the machine's guideways.
A: This depends entirely on the vessel size. Small console molds may require 36 to 48 inches. Full hull master plugs often dictate custom gantry heights. These frequently exceed 8 feet (2.4 meters).
A: For marine applications, adding a 2-axis articulating head to a 3-axis machine severely compromises Z-axis clearance. It also destroys overall rigidity. A dedicated, factory-built 5-axis center is strongly recommended. It provides necessary structural stability and precision.
A: The programming curve is steep. Unlike 3-axis routing, continuous 5-axis requires managing complex tool vectors. You must ensure rigorous collision avoidance. Investing in premium CAM software and professional operator training is absolutely non-negotiable.
