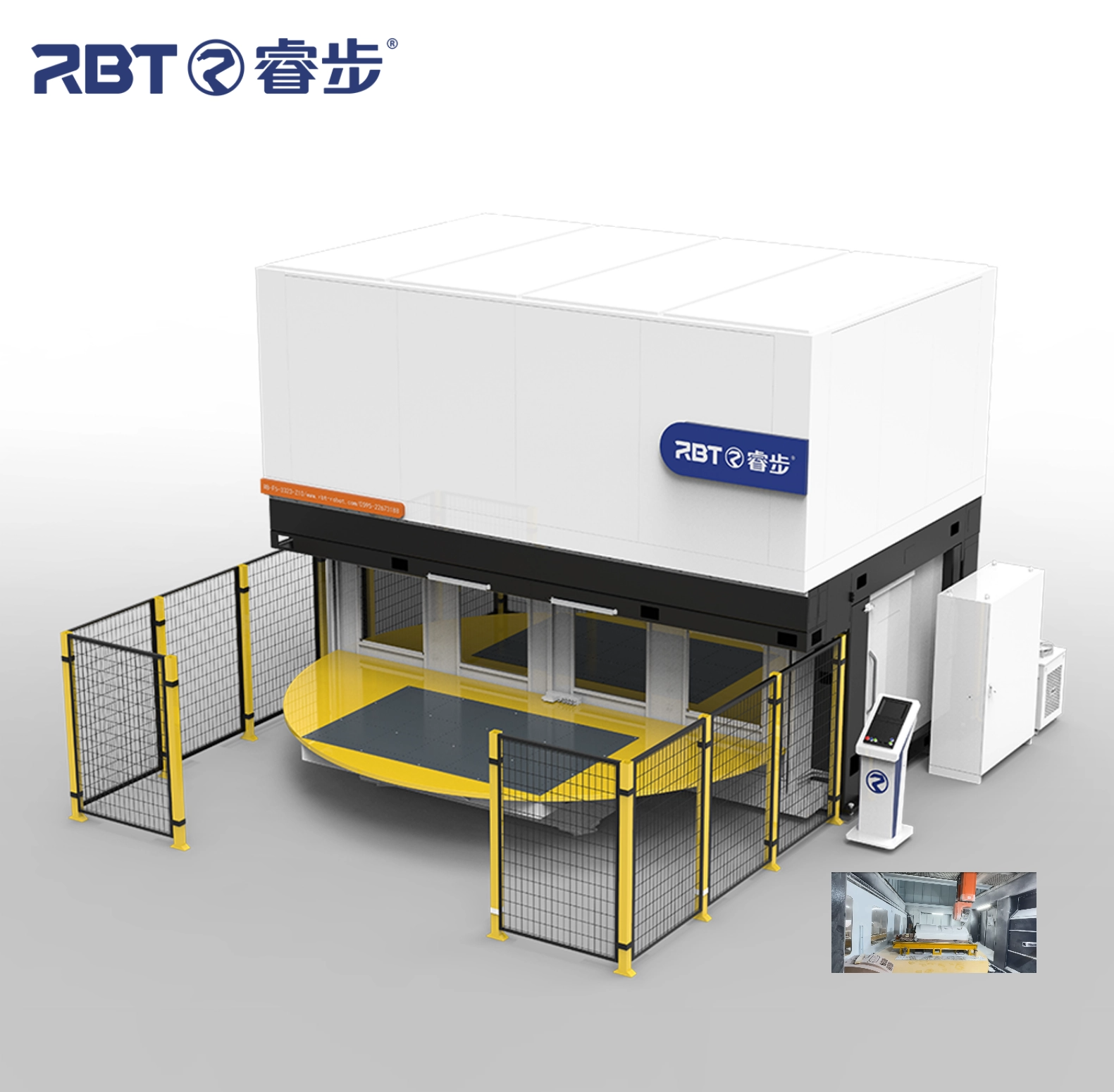

In modern manufacturing, precision and flexibility are no longer optional—they are requirements. Industries such as aerospace, automotive, medical device manufacturing, and energy rely on advanced machining solutions to achieve higher accuracy, reduce production time, and handle increasingly complex part geometries. At the center of these innovations is the 5 Axis CNC Machine, a tool that has redefined what is possible in computer numerical control (CNC) machining. Unlike conventional three-axis machines, a 5 Axis CNC Machine provides the ability to move a cutting tool or part along five different axes simultaneously. This capability allows manufacturers to create intricate components with greater efficiency and fewer setups, resulting in superior quality and cost-effectiveness.
At its core, a 5 Axis CNC Machine is a computer-controlled machining system capable of moving a part or cutting tool in five different directions: X, Y, Z (the standard linear axes), and two additional rotary axes, usually referred to as A, B, or C. These added axes open up new machining possibilities by allowing the tool to approach the workpiece from virtually any angle.
Unlike a 3-axis machine, which requires repositioning the part multiple times to cut different sides, a 5 Axis CNC Machine performs these operations in a single setup. This simultaneous movement not only saves time but also ensures greater accuracy since the part does not have to be manually realigned.
Key Motion Axes in a 5 Axis CNC Machine
| Axis | Type of Motion | Description |
|---|---|---|
| X | Linear | Moves the tool left and right |
| Y | Linear | Moves the tool forward and backward |
| Z | Linear | Moves the tool up and down |
| A | Rotary | Rotates around the X-axis |
| B/C | Rotary | Rotates around the Y-axis or Z-axis |
This multi-directional movement makes the 5 Axis CNC Machine an ideal solution for fabricating complex geometries, undercuts, and curved surfaces with minimal operator intervention.
Traditional 3-axis machines have been the workhorse of machining for decades. They excel at handling simple geometries and are widely used across industries. However, as product designs became more intricate and demanded tighter tolerances, the limitations of 3-axis systems became evident.
With 3-axis machining, creating a part with multiple angled features often requires multiple setups, fixtures, and realignments. Each repositioning increases the risk of human error and dimensional inaccuracies. To address these challenges, manufacturers moved to 4-axis and eventually 5 Axis CNC Machines, which can perform more complex operations in fewer steps.
Comparison Table: 3 Axis vs. 5 Axis CNC Machines
| Feature | 3 Axis CNC | 5 Axis CNC |
|---|---|---|
| Number of Setups | Multiple | Single |
| Complexity of Parts | Simple to moderate | Highly complex |
| Accuracy | Good | Superior |
| Time Efficiency | Lower | Higher |
| Cost of Equipment | Lower | Higher |
The evolution represents more than just additional motion—it reflects a paradigm shift in manufacturing efficiency, allowing industries to produce previously impossible designs with higher speed and reliability.
To understand the practical use of a 5 Axis CNC Machine, it helps to break down the machining process step by step.
CAD/CAM Integration – Engineers begin by designing a part in computer-aided design (CAD) software. This digital model is then translated into machine instructions using computer-aided manufacturing (CAM) software.
Toolpath Generation – The CAM software creates optimized toolpaths, factoring in the five available axes. This ensures smooth cutting motion, reduces tool wear, and minimizes machining time.
Workpiece Setup – The part is secured in a fixture or vise. Unlike 3-axis machining, no additional repositioning is required.
Simultaneous Machining – The 5 Axis CNC Machine executes the programmed toolpaths. The cutting tool moves dynamically along linear and rotary axes, shaping the material into the desired geometry.
Final Part Inspection – Finished parts undergo dimensional checks using CMM (Coordinate Measuring Machines) or other metrology equipment to ensure they meet design tolerances.
This seamless integration of CAD, CAM, and CNC allows manufacturers to transition from digital design to physical production with unmatched precision.
The adoption of 5 Axis CNC Machines brings significant competitive advantages to manufacturers. Some of the most impactful benefits include:
Reduced Setup Time – With the ability to machine complex geometries in one go, multiple setups are eliminated. This results in faster cycle times and lower labor costs.
Improved Accuracy – Fewer manual repositionings reduce the chance of misalignment, ensuring tighter tolerances.
Enhanced Surface Finish – By enabling the cutting tool to remain closer to the surface of the part, 5 Axis CNC Machines deliver smoother finishes.
Capability for Complex Parts – Intricate designs that would be impossible or cost-prohibitive with 3-axis machining can be efficiently produced.
Extended Tool Life – Optimized cutting angles reduce tool stress, prolonging the lifespan of cutting tools.
Example Use Case: In aerospace manufacturing, turbine blades require extremely precise curved surfaces. A 5 Axis CNC Machine can produce these blades in a single setup, ensuring high precision while saving time.
The flexibility and precision of 5 Axis CNC Machines make them essential in industries where accuracy and complexity are critical. Some common applications include:
Aerospace Industry – Manufacturing engine components, turbine blades, and structural parts.
Automotive Industry – Creating engine blocks, transmission housings, and custom prototypes.
Medical Industry – Producing surgical instruments, orthopedic implants, and dental devices.
Energy Sector – Machining parts for oil & gas exploration and renewable energy equipment.
Defense and Military – Fabricating complex weapon components and precision parts for aircraft.
Each industry benefits from the ability to reduce costs, minimize errors, and achieve production goals faster.
Not all 5 Axis CNC Machines are the same. There are two main configurations:
These machines use a tilting table to rotate the workpiece along two rotary axes. They are ideal for machining larger parts and allow excellent visibility of the workpiece.

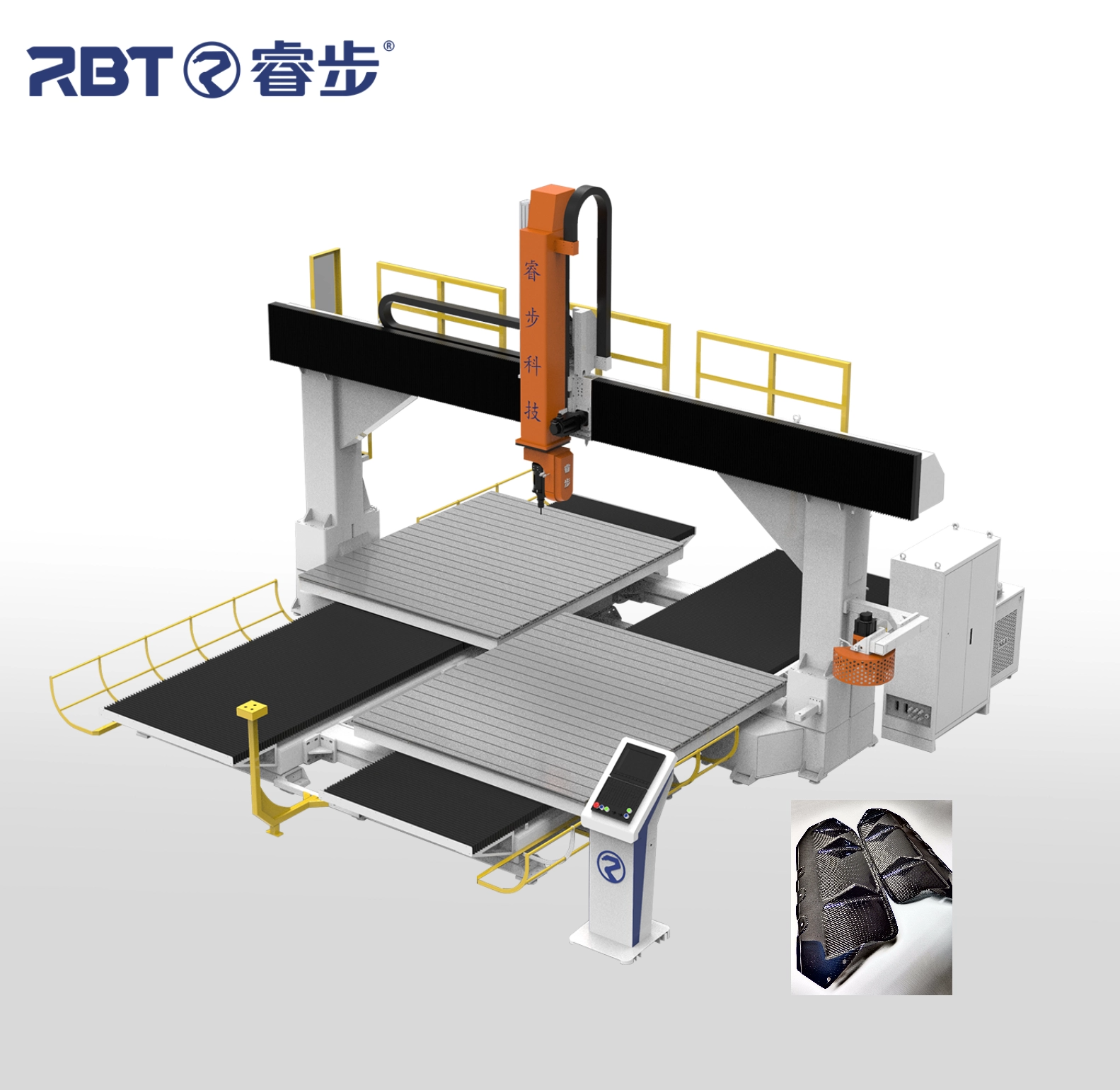

In this configuration, the cutting head itself tilts and rotates rather than the workpiece. This makes them better suited for heavier or bulkier components where moving the part would be impractical.
Comparison Table: Trunnion vs. Swivel Head 5 Axis CNC Machines
| Feature | Trunnion Style | Swivel Head |
|---|---|---|
| Best For | Medium to large parts | Large and heavy parts |
| Workpiece Movement | Table tilts | Spindle tilts |
| Accuracy | Very high | High |
| Setup Flexibility | Good | Excellent |
Choosing between these two types depends on the nature of the parts being produced and the production requirements.
While the benefits are significant, investing in a 5 Axis CNC Machine requires careful planning. Some key considerations include:
Cost of Investment – 5 Axis CNC Machines are more expensive than 3-axis alternatives, often costing hundreds of thousands of dollars.
Operator Training – Skilled programming and operation are essential to maximize machine efficiency.
Software Integration – Robust CAD/CAM software is required to handle complex toolpaths.
Maintenance Requirements – Advanced machines require consistent calibration and maintenance.
Production Volume – Businesses must evaluate whether their production needs justify the investment.
A 5 Axis CNC Machine represents one of the most advanced tools in modern manufacturing. By combining linear and rotary motion, it enables the creation of highly complex parts with exceptional accuracy and efficiency. From aerospace turbine blades to medical implants, industries worldwide rely on this technology to meet growing demands for precision and performance.
Understanding what a 5 Axis CNC Machine is—and how it differs from traditional machining systems—helps businesses make informed decisions about adopting this technology. While the initial cost and learning curve may be high, the long-term advantages of speed, flexibility, and accuracy make it a powerful asset for any forward-thinking manufacturer.
Q1: What is the difference between 3 Axis and 5 Axis CNC Machines?
A 3-axis CNC Machine moves in three linear directions (X, Y, Z), while a 5 Axis CNC Machine adds two rotary axes, allowing more complex shapes to be produced in fewer setups.
Q2: What industries benefit most from 5 Axis CNC Machines?
Industries such as aerospace, automotive, medical, energy, and defense benefit the most, as they often require high-precision, complex parts.
Q3: Are 5 Axis CNC Machines difficult to program?
Yes, they require advanced CAD/CAM software and skilled operators, but modern software has made programming easier with simulation and toolpath optimization features.
Q4: Is a 5 Axis CNC Machine worth the investment for small businesses?
It depends on the production needs. If a business frequently manufactures complex or multi-sided parts, the machine can significantly reduce costs and production time.
Q5: How much does a 5 Axis CNC Machine cost?
Prices vary widely based on size, brand, and features, but typically range from $150,000 to over $500,000.
