How Does RTCP Improve Accuracy in 5 Axis CNC Routing for Composite Parts?

Composite manufacturing presents exceptionally high stakes for modern production floors. Scrap rates stemming from delamination, fiber pull-out, or severe heat damage are prohibitively expensive. You cannot afford to ruin a costly carbon fiber layup during the final trimming phase.

Machining 3D contoured composite parts, such as aerospace radomes or complex automotive body panels, involves intense geometric complexity. Standard multi-axis interpolation inherently struggles here. Traditional systems rotate around fixed pivot points. They cannot maintain the flawless tool orientation required for these advanced materials.

For manufacturers evaluating a 5 Axis CNC Machining Center, true RTCP (Rotational Tool Center Point) is not a luxury software feature. It serves as a strict baseline requirement for geometric accuracy and pristine edge quality. In this article, you will learn exactly how RTCP transforms composite machining outcomes.

Key Takeaways

• Kinematic Compensation: RTCP shifts the coordinate calculation from the machine's pivot points to the actual tool tip, eliminating non-linear errors during simultaneous 5-axis movement.

• Composite-Specific Benefits: Real-time feed rate control at the tool tip prevents resin melting and fiber fraying, which are common when feed rates fluctuate in non-RTCP setups.

• Operational Efficiency: RTCP allows CAM programming to be independent of specific machine kinematics, reducing setup times and post-processing errors.

• Evaluation Mandate: A true Advanced Composite CNC Machine must pair RTCP controller capabilities with high mechanical rigidity; software cannot out-calculate poor machine vibration.

The Business Problem: Why Composite Parts Demand True 5-Axis Control

Carbon fiber and glass-reinforced plastics possess punishing material realities. They consist of highly abrasive fibers suspended in delicate resin matrices. You must cut these materials perfectly on the first attempt. Operators must maintain precise, continuous tool orientation to shear fibers cleanly rather than tear them out of the resin matrix. When a tool deviates even slightly from its intended angle, it drags across the composite surface. This dragging action creates massive friction. The resulting heat quickly degrades the resin, while the blunt force splinters the woven fibers.

Many legacy production setups still rely on 3+2 axis machining, often called positional 5-axis. Positional 5-axis simply locks the rotary axes into a fixed angle before executing a standard 3-axis cutting path. This approach falls drastically short for continuous complex curvatures. If an aerospace radome features a sweeping, multidirectional curve, a 3+2 machine must constantly stop, reorient, and plunge back into the material. These start-and-stop transitions inevitably lead to visible witness marks and severe gouging. Operators then face hours of manual rework to salvage the part.

We must define what a successful composite machining operation actually looks like. First-pass yield stands as the ultimate metric. A high-performing system delivers finished parts straight off the machine bed. You should expect zero manual deburring or sanding. Furthermore, predictable tool wear becomes a reality. When the tool stays perfectly normal to the surface, it distributes wear evenly across its cutting flutes. We eliminate erratic tool snapping and premature dulling. True 5-axis control delivers this stability.

What is RTCP and How Does it Function in an Advanced Composite CNC Machine?

Let us strip away the confusing marketing jargon surrounding CNC controllers. RTCP stands for Rotational Tool Center Point. We define RTCP as the CNC controller's active ability to manage the spatial coordinates of the tool tip rather than the rotary axes' pivot centers. In a standard machine, the controller only understands where the mechanical joints are located. In an RTCP-enabled system, the controller focuses entirely on the cutting edge.

The solution mechanics rely on intense real-time mathematics. The CNC controller mathematically compensates for the physical distance between the spindle pivot point and the actual cutting edge. As the spindle tilts and rotates through space, the tool tip naturally wants to swing away from the part in a wide arc. An RTCP controller detects this spatial deviation instantly. It simultaneously fires the linear axes (X, Y, and Z) in reverse proportion to keep the tool tip pinned perfectly to the programmed path. This real-time synchronization happens thousands of times per second inside an Advanced Composite CNC Machine.

Many operators confuse CAM post-processing with true controller RTCP. You can theoretically use a CAM post-processor to calculate all these complex compensation vectors. However, CAM-based compensation is incredibly rigid. The post-processor hard-codes the tool length and machine pivot dimensions into millions of lines of G-code. If you change a cutting tool and it measures just two millimeters shorter, you must re-post the entire program. Controller-level RTCP handles these calculations dynamically. It renders the G-code entirely machine-independent.

Core Evaluation Dimensions: RTCP's Direct Impact on Accuracy and Finish

Understanding the theoretical mechanics of RTCP is helpful. However, translating those mechanics into tangible production outcomes is critical for evaluating equipment. RTCP delivers three distinct feature-to-outcome benefits. Each one directly impacts the surface finish and geometric accuracy of your composite parts.

1. Non-Linear Error Eradication: Simultaneous rotary movement naturally creates arc deviations. We call these non-linear errors. When a rotary head tilts from point A to point B, the tool tip travels in a curved arc rather than a straight line. If the CAM software programmed a straight cut, this natural arc pulls the tool out of the material or drives it too deep. RTCP actively linearizes the tool path between programmed points. The controller forces the linear axes to compensate for the rotary arc, ensuring the tool tip travels exactly along the intended geometric line.

2. Constant Tool Tip Feed Rate: This capability proves absolutely critical for composites. In a standard setup, the feed rate applies to the machine's pivot center. As the head rotates, the tool tip at the end of the lever arm accelerates wildly or stalls out completely. When a tool stalls or dwells in carbon fiber, it generates immediate thermal damage. The resin melts, and the fibers fray. RTCP ensures the feed rate remains perfectly constant right at the cutting edge. The machine glides through complex curves without hesitation.

3. Tool Length Wear Compensation: Cutting highly abrasive materials like glass-reinforced plastics destroys tooling rapidly. Operators must swap out dull tools constantly. RTCP allows operators to adjust for this tool wear directly at the machine interface. You simply measure the new tool, enter the updated length offset into the controller, and press cycle start. The RTCP algorithm instantly recalculates all kinematics based on the new tip position. You never need to send the program back to the engineering department for a time-consuming CAM re-post.

Implementation Realities: Calibration Risks and Operational Blind Spots

While RTCP represents a massive leap in controller intelligence, it carries inherent operational risks. Many buyers fall victim to the "Band-Aid" fallacy. We must state transparently: RTCP cannot fix poor mechanical architecture. A lightweight, poorly cast machine frame will still chatter under load. If the spindle lacks rigidity, it will vibrate heavily while routing tough composites. This vibration tears composite fibers and shatters expensive cutting tools, regardless of how advanced the controller algorithms might be.

Furthermore, you face a massive calibration imperative. RTCP relies entirely on exact geometric data. The controller must know the precise distance from the spindle pivot joint to the tool holder face. Detail the risk of improper kinematic calibration. If maintenance personnel measure the machine's pivot lengths incorrectly, RTCP will actively destroy machining accuracy. It will confidently compensate for the wrong geometry, driving the tool directly into the fixturing or gouging the workpiece. Routine laser calibration and automated probe routines are essential.

Finally, shop floors face real adoption risks. Operators transitioning from traditional 3-axis routing face a steep learning curve. They must fundamentally understand how to manage tool center point logic. In 3-axis work, the tool always points straight down. In 5-axis RTCP work, the tool might be horizontal or inverted. Operators must verify dynamic collisions meticulously in simulation software before running the physical machine. This transition requires specialized, hands-on training to prevent catastrophic machine crashes.

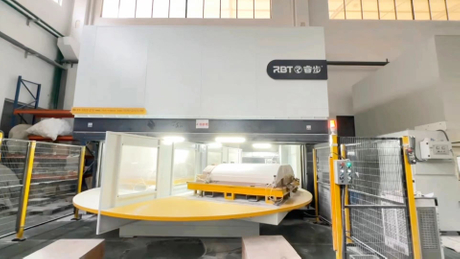

Shortlisting a 5 Axis CNC Machining Center with RTCP

When you begin evaluating equipment, you must scrutinize both the software brain and the mechanical brawn. Not all 5-axis systems are created equal. You need a systematic approach to shortlisting the right equipment for your composite applications.

• Evaluating Controllers: You must prioritize industrial-grade CNC controllers like Siemens, FANUC, OSAI, or Heidenhain. Look closely at their "look-ahead" block processing speeds. When running dense 5-axis code over complex composite curves, the controller must read thousands of lines ahead to decelerate smoothly into tight corners. Low-tier controllers will stutter, causing burn marks on the resin.

• Machine Architecture: You must match an RTCP 5 Axis CNC Router with appropriate structural rigidity. Look for twin-drive gantries to prevent skewing during aggressive cuts. Heavy-duty trunnions absorb vibration effectively. Additionally, you need high-speed spindles equipped with robust, localized dust extraction. Carbon fiber dust is highly conductive and abrasive; it will destroy unprotected linear guides quickly.

• Next-Step Action: Never purchase a machine based on a brochure. Demand a live test cut. You should supply the vendor with your own proprietary composite geometry. Ask them to cut a complex spline curve using RTCP. Afterward, analyze the surface finish carefully. Run a fingernail over the cut edge. If you feel ridges, witness marks, or frayed fibers, the machine's kinematic interpolation is failing.

By strictly enforcing these shortlisting criteria, you insulate your production floor from costly integration failures. You ensure the hardware and software work in total harmony.

Conclusion

Mastering the machining of complex composite materials requires moving beyond legacy control systems. RTCP fundamentally shifts the burden of complex kinematic math from the CAM programmer to the machine itself. By constantly tracking the actual tool tip in three-dimensional space, the controller ensures the cutting edge behaves exactly as designed, free from arc deviations and erratic feed rates.

Investing in a high-rigidity 5-axis center equipped with true RTCP is the most mathematically sound way to protect expensive composite raw materials. It eliminates machining-induced scrap and eliminates the need for manual rework. Take the time to verify controller processing speeds, demand rigorous live test cuts, and prioritize robust machine architecture. These proactive steps will transform your composite production from a highly variable struggle into a predictable, highly profitable process.

FAQ

Q: What is the difference between RTCP and TCPM?

A: TCPM stands for Tool Center Point Management. It is often a proprietary term used by specific high-end controller brands like Heidenhain. However, TCPM serves the exact same fundamental kinematic function as RTCP. Both technologies mathematically manage the tool tip position in real-time, compensating for rotary axis movements to keep the cutting edge on its programmed path.

Q: Do I need RTCP if I only do 3+2 positional machining?

A: No, RTCP is strictly designed for simultaneous multi-axis interpolation. In 3+2 machining, the rotary axes lock into place before cutting begins, so dynamic compensation is unnecessary. However, machines equipped with RTCP generally offer superior overall controller processing power and better structural kinematics.

Q: Does an RTCP controller eliminate the need for a CAM post-processor?

A: A post-processor is still required to translate your CAM paths into machine-readable G-code. However, RTCP drastically simplifies the post-processor. It removes the need to hard-code machine-specific pivot lengths into the file, making your G-code programs highly portable across different RTCP-enabled machines.
