A CNC router machine is an advanced tool used for automated cutting, engraving, and shaping of materials such as wood, plastic, and composites. "CNC" stands for Computer Numerical Control, meaning that the machine operates based on pre-programmed computer software, resulting in precise and accurate operations.
Unlike traditional manual routers, which require human intervention for operation, a CNC router follows the instructions provided through CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software. This automation ensures high efficiency, accuracy, and consistent output in manufacturing processes.
The operation of a CNC router begins with the creation of a digital design on a computer. This design is then translated into machine instructions using software. The CNC router machine executes these instructions by controlling its movements along specific axes, guiding the cutting tool to make the necessary cuts on the material.
The key principle behind a CNC router is automation: once the design and instructions are input into the system, the machine works autonomously, executing precise cuts or engravings without direct human involvement.
The steps involved in how a CNC router works can be broken down as follows:
Design Creation:
A digital design is created using CAD software. This design outlines the shapes, dimensions, and intricate details that need to be cut or engraved into the material.
Programming:
The design is then converted into G-code using CAM software. G-code is a programming language that controls the movement of the router, including the speed, direction, and type of cut.
Machine Setup:
The material is securely placed on the worktable of the CNC router. The correct cutting tools are chosen based on the material and the desired operation (e.g., milling, engraving, or carving).
Execution:
Once everything is set up, the CNC router machine begins to follow the G-code instructions, precisely moving along the designated axes (X, Y, Z, and sometimes additional rotational axes) to make cuts or engravings on the material.
Post-Processing:
After the cutting is completed, the finished product is removed from the router, and any necessary post-processing, such as cleaning or finishing, is done.
A CNC router machine consists of various components that work together to ensure precise and accurate operation. Here’s a breakdown of the essential parts:
The controller is the brain of the CNC router machine. It receives the G-code generated by the CAD/CAM software and converts it into mechanical movements. The controller ensures the router follows the design accurately, moving the machine along specific axes.
The spindle holds and drives the cutting tool. It rotates at high speeds to make precise cuts into the material. The spindle's speed and movement are regulated to achieve the required cutting depth and quality.
The cutting tools are the parts that physically interact with the material. These tools can vary depending on the type of material being cut and the design being executed. Common cutting tools include end mills, engraving bits, and drills.
The worktable holds the material securely while the router operates. In some models, the table can move along the X and Y axes to position the material in the correct cutting area. The table may also include vacuum systems or clamps to keep the material in place during the cutting process.
Motors and actuators are responsible for moving the CNC router’s axes (X, Y, Z, and any additional rotational axes) precisely along the designated paths. These movements ensure the cutting tool follows the exact design specified by the operator.
In a basic CNC router machine, movement occurs along three axes:
X-axis (Horizontal): This moves the router head from left to right.
Y-axis (Horizontal): This moves the router head from front to back.
Z-axis (Vertical): This moves the router head up and down to control the cutting depth.
These three axes enable the router to perform standard cutting, engraving, and shaping tasks with accuracy.
A 4-axis CNC router adds an additional rotational axis, allowing the router to rotate the material on its axis for more complex and precise cuts, especially on cylindrical or curved surfaces.

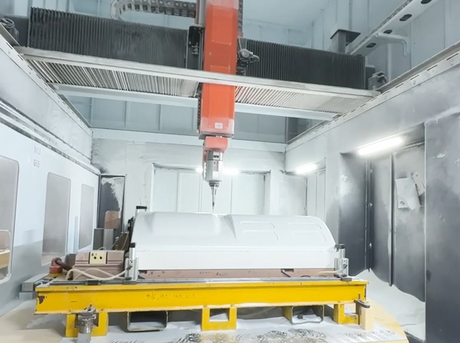

The 5-axis CNC router machine allows for both rotational and translational movement, offering advanced capabilities. It can cut along five different axes, providing the ability to create more complex shapes and designs with higher precision. This type of router is commonly used in the aerospace and automotive industries.
The creation of a CNC router's cutting path begins with CAD software. The designer uses CAD software to create a detailed model of the part or design. Once the design is finalized, it is exported to CAM software, which generates the G-code needed to operate the CNC router.
CAD Software: Software such as AutoCAD or SolidWorks is used to create the digital design or model.
CAM Software: Programs like VCarve or Fusion 360 convert the CAD design into machine instructions (G-code) that guide the CNC router.
G-code is a set of instructions that directs the CNC router on how to move, the speed of movement, the tool to use, and the specific cutting paths to follow. The G-code is sent to the CNC controller, which translates it into mechanical movements. The controller ensures the machine follows the precise path defined by the G-code, ensuring a high level of accuracy and consistency.
CNC routers are capable of cutting and engraving with incredible precision, offering a level of detail that is often impossible with manual methods. The use of G-code ensures that every cut is executed exactly as designed.
CNC routers can operate continuously without the need for breaks or supervision. Once the machine is set up and programmed, it can produce parts or products quickly and consistently, increasing overall production efficiency.
CNC routers can handle a wide range of materials, including wood, plastic, and composites. This versatility makes them suitable for a variety of industries, from furniture making to aerospace part production.
The ability to automate the cutting process ensures that every part produced is identical, making CNC routers perfect for high-volume production. This consistency reduces human error and material waste.
CNC routers work through an integrated process of computer software, machine components, and precise movements to automate the cutting, engraving, and shaping of materials. The machine is guided by digital instructions, ensuring high precision and efficiency. Whether for woodworking, or plastic fabrication, CNC routers have become indispensable tools in modern manufacturing, offering exceptional versatility and reliability.
At Fujian RBT Intelligent Equipment Co., Ltd., we specialize in providing high-quality CNC router machines that are built for precision, efficiency, and longevity. With over 24 years of expertise, we offer customized CNC solutions designed to meet the unique needs of our clients, supported by global after-sales service and maintenance.
1. How does a CNC router machine work?
A CNC router machine works by following instructions from CAD/CAM software. These instructions are converted into G-code, which controls the machine's movement along multiple axes to precisely cut or engrave materials.
2. What materials can a CNC router cut?
CNC routers can cut a wide range of materials, including wood, plastic, acrylic, and composites.
3. What is the difference between 3-axis, 4-axis, and 5-axis CNC routers?
A 3-axis CNC router operates along three linear axes (X, Y, Z), while a 4-axis router includes an additional rotational axis (A). A 5-axis CNC router can move along five axes, allowing for complex cutting and engraving tasks.
4. What industries use CNC routers?
CNC routers are used in a variety of industries, including woodworking, plastics, sign making, and aerospace part production.
5. How do I maintain a CNC router machine?
Regular maintenance includes lubricating moving parts, cleaning the machine, inspecting cutting tools, and updating software to ensure optimal performance.
