RB-H5-3323-Z10
RBT
Product Parameters
Content | Parameter | Content | Parameter |

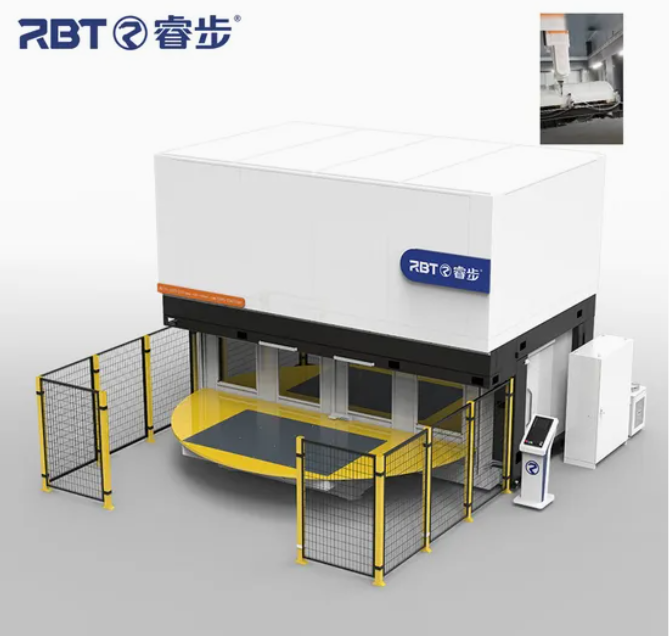

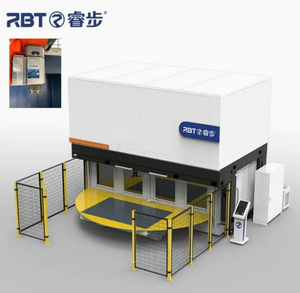

| Name | Non-metal Truss Type 5 axis CNC Machine | Brand | RBT |
| Model | RB-F5-3323-Z10 | Voltage | 380V |
| X/Y/Z Travel | 3300*2300*1000mm | Power | 25.35 KW |
| C/B Axis Travel | +/- 540° / +/- 120° | Spindle power | 17KW |
| Control system | Taiwan SYNTEC | Weight | 19500KG |
| Origin | Guangdong/Fujian | Warranty | 1 Year |
Product Features
Multi-Axis Simultaneous Control: The simultaneous control of five axes allows for the machining of complex curves and contours found in many automotive and aerospace parts.
High-Speed Machining: The ability to perform high-speed machining reduces production times and increases efficiency.
Dual Table Functionality: The innovative twin table design allows for continuous operation, with one table dedicated to machining while the other is prepared for the next cycle, significantly enhancing workflow efficiency. making loading and unloading safer and more convenient, and realizing automatic interaction between the processing area and the loading and unloading area.
Large Working Area: The twin table system allows for larger workpieces typical in automotive and aerospace applications.
Advanced Control Systems: Modern control systems with intuitive interfaces facilitate the programming and operation of complex machining tasks. SYNTEC five-axis linkage CNC system combines power, speed and precision and can be equipped with multiple functions such as dust collection and RTCP.
High-Performance Spindles: The router is fitted with high-torque spindles that can be customized to meet specific performance requirements, ensuring optimal cutting performance for various materials. Italy Hiteco double swing head spindle, can achieve 360° swing Angle, fast speed, high precision.
Automatic Tool Management: An integrated tool magazine and automatic tool changer reduce downtime and setup times, allowing for a seamless transition between different tools during the machining process.
Machine Application
How a 5-Axis Rotary Twin Table CNC Milling machine is used in the automotive and aerospace industries?
Precision Car Componentry: Expertly crafts detailed car parts with meticulous accuracy.
Rapid Prototyping: Efficiently churns out initial part models for swift testing phases.
Advanced Material Utilization: Processes lightweight materials such as carbon fiber to enhance vehicle performance.
Aircraft Part Fabrication: Accurately manufactures parts for aviation vehicles, including planes and helicopters.
Robust Material Management: Capably works with durable and lightweight materials specific to aerospace applications.
Strict Standard Adherence: Upholds rigorous aerospace quality and safety benchmarks.
This machine is a key player in making detailed and precise parts for cars and planes, using strong materials and meeting high industry standards.
CE Approved five axis cnc milling machine
RBT Machinery
About Us
Fujian RBT Intelligent Equipment Co., Ltd.
Our Advantage
1. Company Strength: With advanced 5-axis machining centers and automated production lines, we ensure large-scale production and efficient operation.
2. R&D Capability: Professional R&D team, constantly promoting technological innovation, quickly responding to market changes and customer requirement, and leading the development of industry technology.
3. Production and Manufacturing Capability: With an experienced team of technicians and engineers, we focus on every detail from design to production.
4.Quality Control Capability: Strict quality management system, full monitoring of the production process, to ensure zero defects in products.All of our 5-axis CNC machines are calibrated with laser interferometers to ensure machining accuracy and reliability.
5. After-sales Service Capability: Provide comprehensive technical support and fast-response after-sales service to protect customer interests.
6. Industry Experience: After 20 years of deep cultivation in the industry, we have accumulated rich manufacturing experience and can cope with various industry challenges.
After Sales Service
Installation training (3 options) :
A. We will provide installation, operation, maintenance and troubleshooting training videos and user manuals in English, as well as technical guidance via email, fax, phone /Messenger/WhatsApp, etc. if you encounter problems with installation, use or adjustment.
B. You can come to China for training. We will also provide accommodation during the training.
C. China's strong after-sales service team. Our engineers (staff) can speak English to communicate and solve problems. Flights can also be arranged.
Training time: 3-7 working days (recommended).
For installation, commissioning & training (maintenance and operation of the machine) to the user's personal work site, it shall be provided free of charge by the supplier. The Supplier's airfare (round trip), food, accommodation, local transportation, translation, Internet, communication and visa costs at the Buyer's site shall be borne by the...
Exhibition
Customer Distibution
Packing&Shipping
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.
FAQ
Q1. When was your factory established?
We have been specialized in the R&D, manufacturing and intelligent manufacturing solutions of CNC Machining since 2000, mainly focusing on CNC Machining for plastic luggage suitcase, thermoformed plastic, composite parts, patterns & moulds, aluminum/ paper honeycomb, and soft metal like aluminum/brass/ zinc from R & D, design, production, sales to after-sales technical service.
Q2. What should I do if there is a problem with this machine during the warranty period?
The quality assurance period is 12 months from the date the goods arrive at the destination port. Except for man-made damage, we are responsible for providing accessories free of charge during the warranty period. After the quality assurance period, if you need to repair or replace parts, you must pay.
Q3. How to install and use?
We will provide training videos and English user manuals for installation, operation, maintenance and troubleshooting for the machine. When you encounter installation, use or adjustment problems, we will provide technical guidance by email, fax, telephone/Messenger/WhatsApp, etc.
Q4. What should I do if there is an after-sales problem?
You can directly describe your problem to the after-sales staff. China's strong after-sales service team. Our engineers (employees) can communicate and solve problems in English, and can be arranged once a day per person when you need it. If I need to go to your place to help, I will quickly arrange to go there and quickly fly to help you.
Q5. How about wholesale price?
If you are a wholesaler, distributor or agent, please contact us to get wholesale price.
