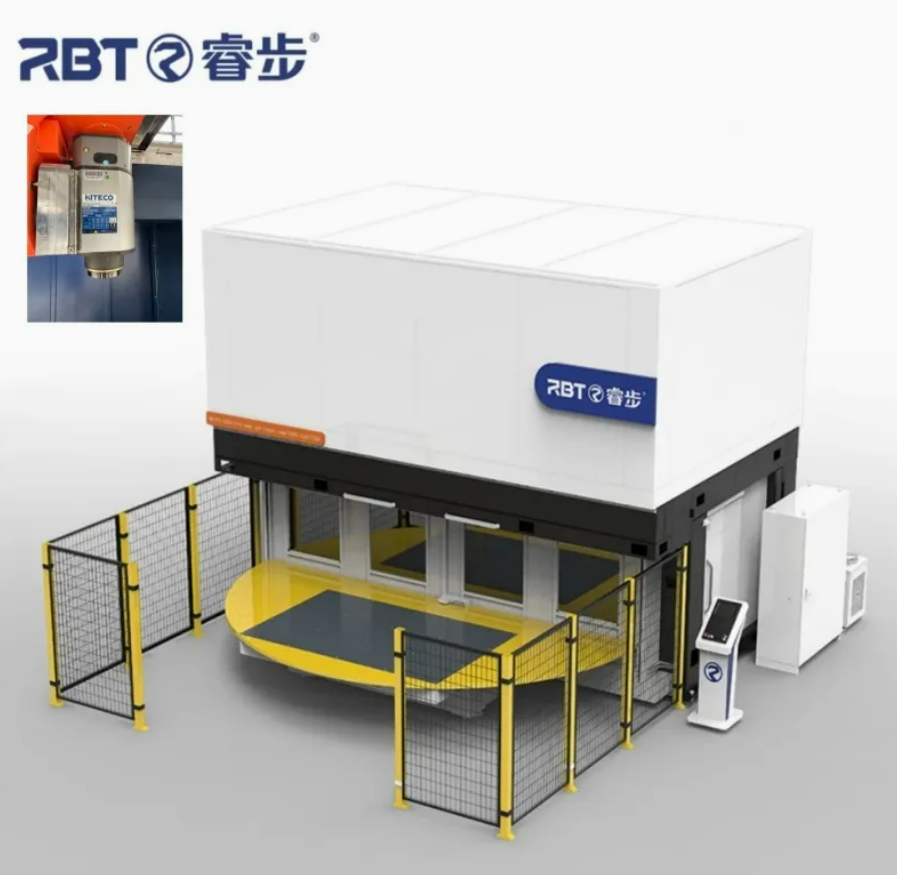

RBT Machinery Cutting Shape 6 Axis Cnc Router With Double Worktable

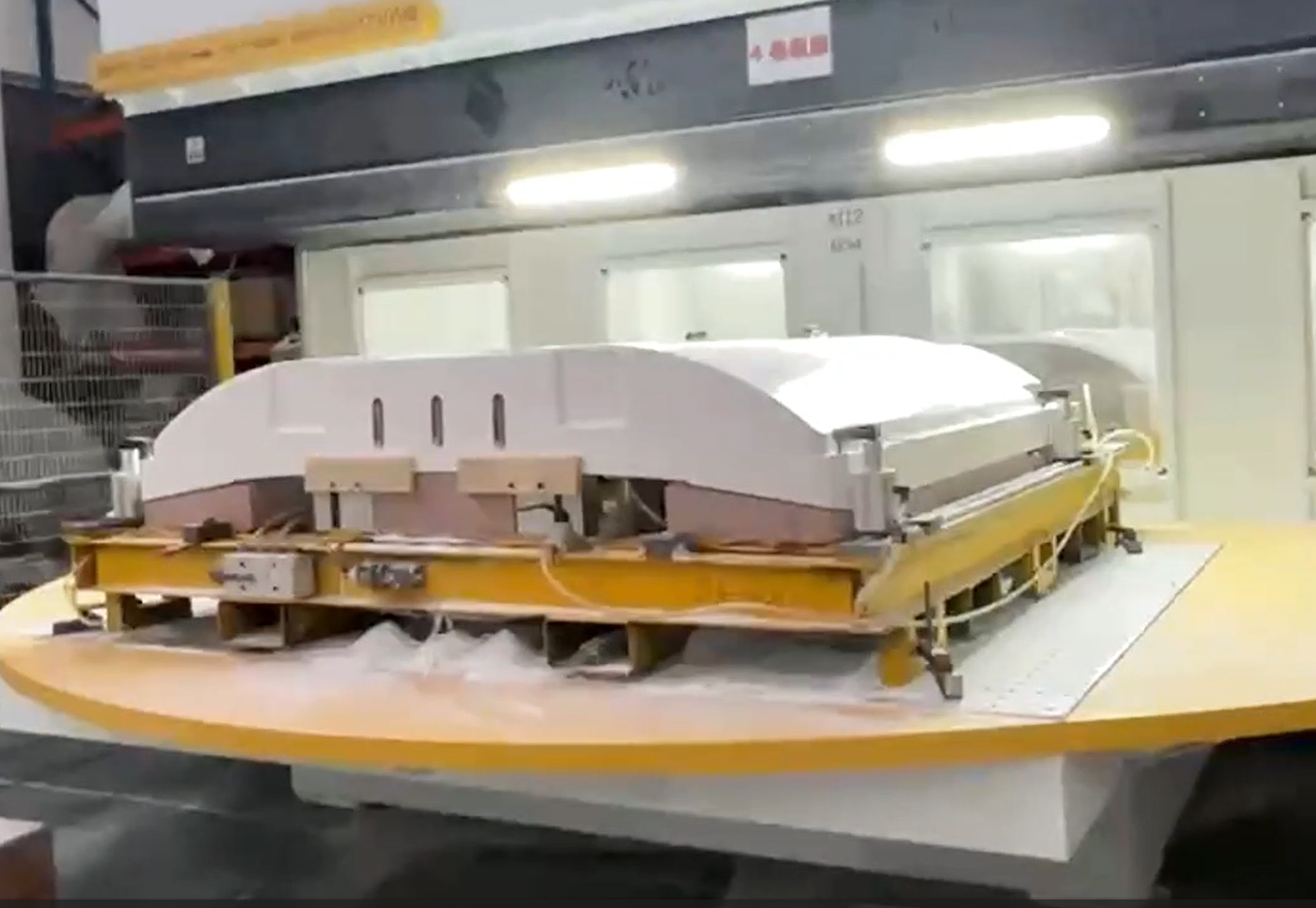

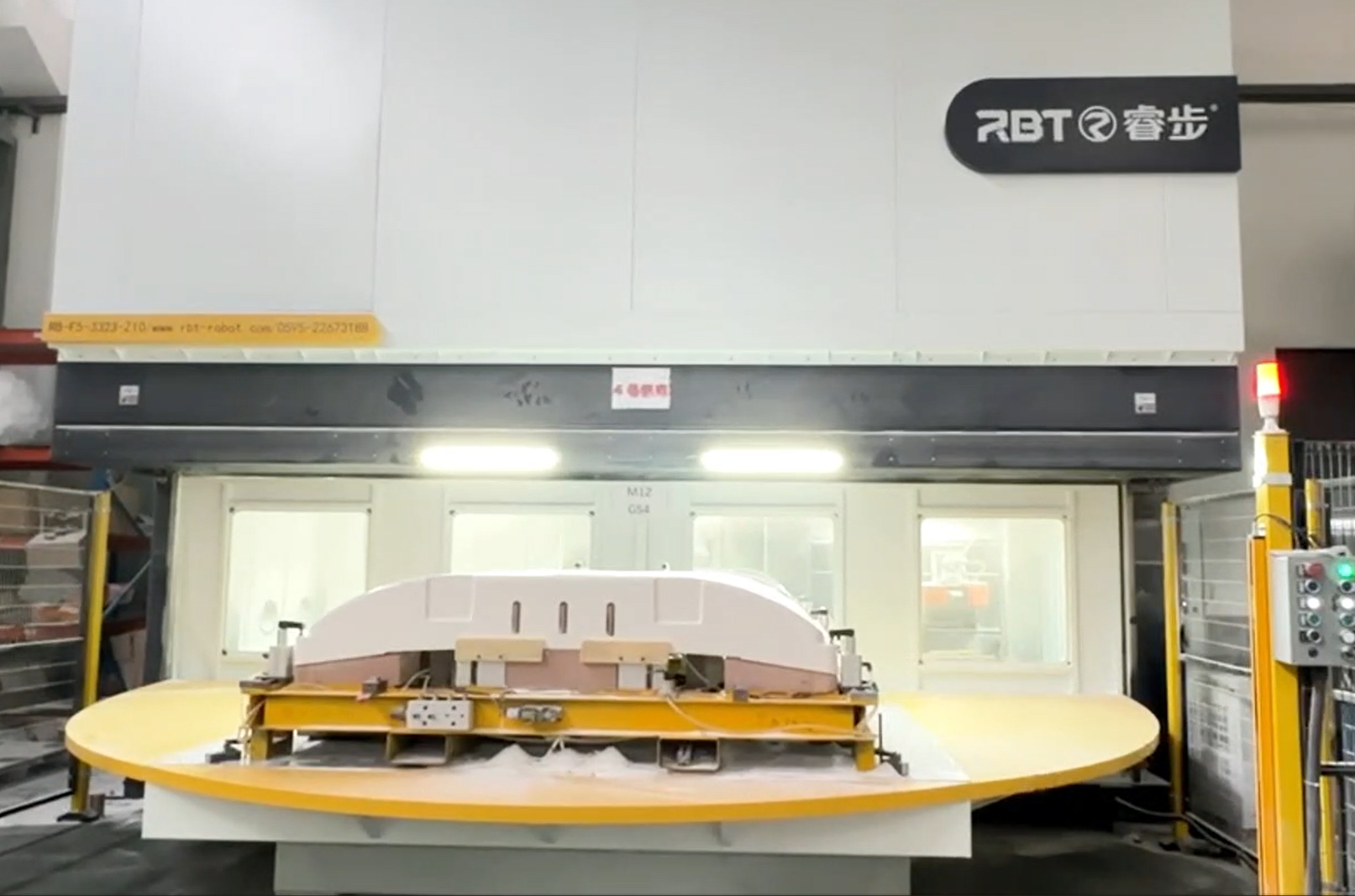

The 6 axis cnc router，Truss-type rotary worktable, floor drain type dust collection device, in combination with high-performance dust collector, can collect external processing debris, which can meet the needs of closed workpiece processing.

Weight:	19500KG
Rated Power:	18.95-33.45KW
X/Y/Z axis travel:	330023001000MM
Size:	L7100W6615H4896MM
C/B Axis Travel:	±540°/±120°
Voltage:	3-380V
Control System:	Taiwan Syntec
Availability:

Quantity:



Inquire Add to Basket

Model:
RB-H5-3323-Z10
Brand:
RBT
Code:
8465990000

Product Description

RBT MACHINERY

Composite Material 5 Axis CNC Machine for Aerospace /Automotive/Medical Parts

Dual Table 5-Axis Rotary CNC Milling Machine for Automotive Manufacturing

Technical Parameter

Content	Parameter	Content	Parameter
Name	Non-metal Truss Type 5 axis CNC Machine	Brand	RBT
Model	RB-F5-3323-Z10	Voltage	380V
X/Y/Z Travel	330023001000mm	Power	25.35 KW
C/B Axis Travel	+/- 540° / +/- 120°	Spindle power	17KW
Control system	Taiwan SYNTEC	Weight	19500KG
Origin	Guangdong/Fujian	Warranty	1 Year

Machine Function
1. five-axis machining center, when working, five coordinate axes drive the tool to move around the workpiece, and can realize five-axis linkage three-dimensional movement, which can meet the processing of pentahedron and arbitrary curved surface.
2. The system adopts SYNTEC five-axis linkage CNC system. The machine combines power, speed and precision and can be equipped with multiple functions such as dust collection, automatic tool change and RTCP. It can cut difficult-to-process materials in the shortest time to obtain very high-precision contours and profiles. The multi-face processing of the entire product can be completed in one clamping.
3.Processing the thermoformed plastic or composite material products for three-dimensional or multidimensional special-shaped cutting, drilling, etc.
4.Drilling, especially side drilling, need spindle swing Angle, five axis machine tool is imported double swing head spindle, can achieve 360° swing Angle, drilling processing.
5.RBT five-axis machining center spindle is imported spindle, fast speed, high precision.8 station tool library design, up to 8 different specifications of tools can be automatically replaced, which can meet more processing needs. And it can be optional with RTCP function.

Efficient five-axis:

The machine is equipped with a SYNTEC five-axis linkage CNC system, which supports high-speed machining and comprehensive programming of complex parts; it combines power, speed and precision, and can be equipped with enhanced functions such as dust collection, automatic tool change and RTCP.

Rbt 5 Axis CNC Machine with High Performence Spindle for Plastic

Three linear axes and two rotary axes:

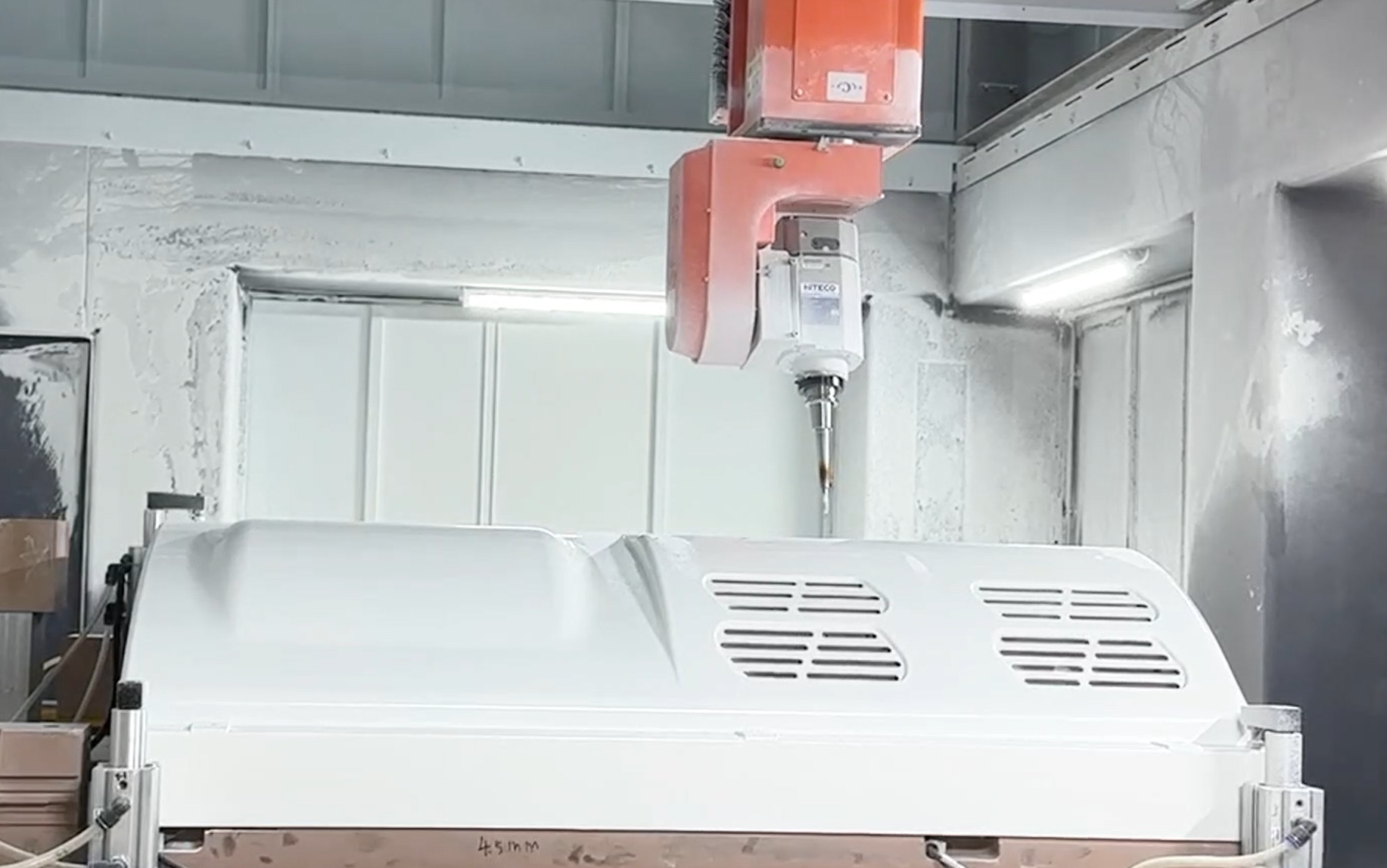

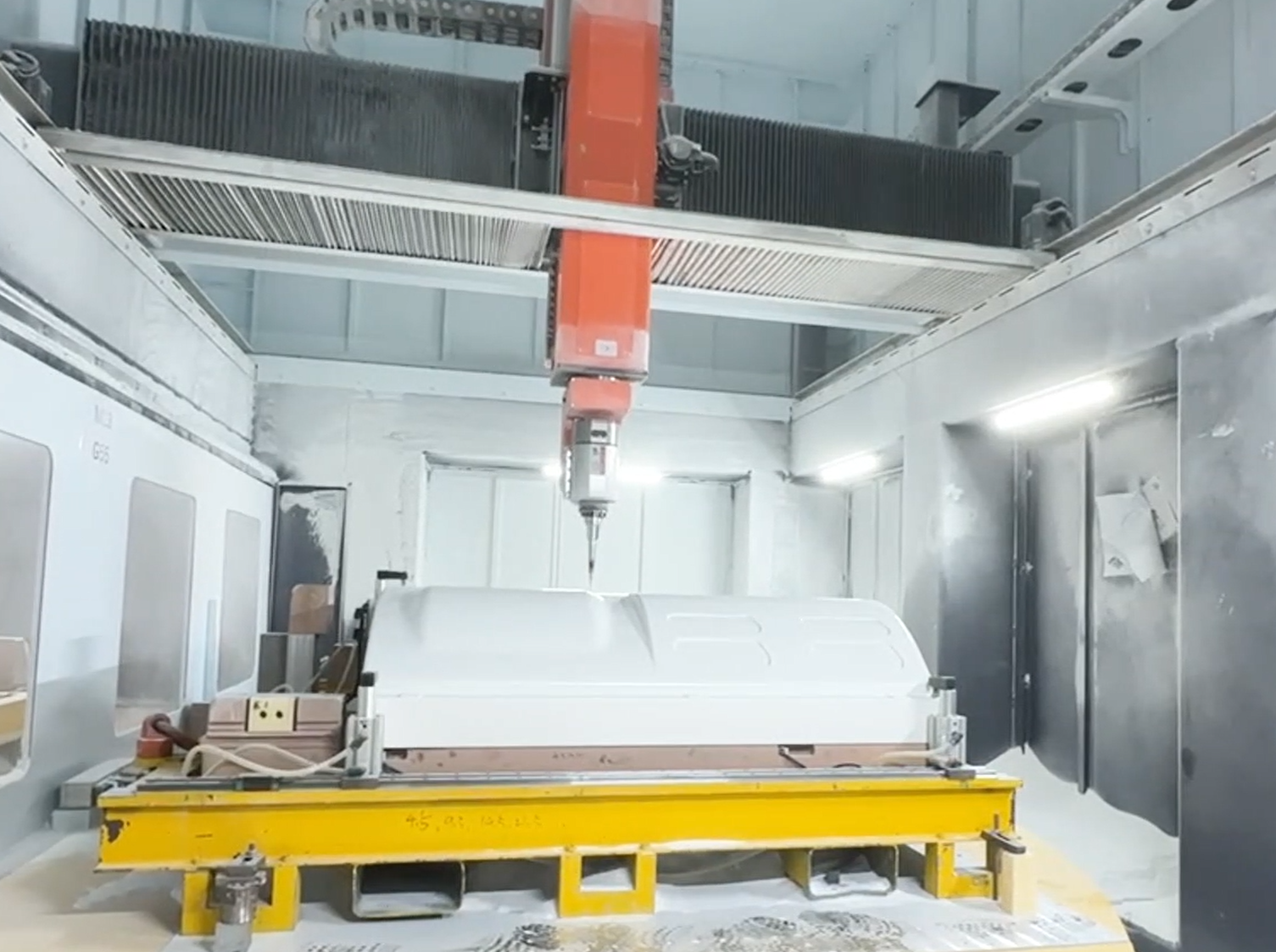

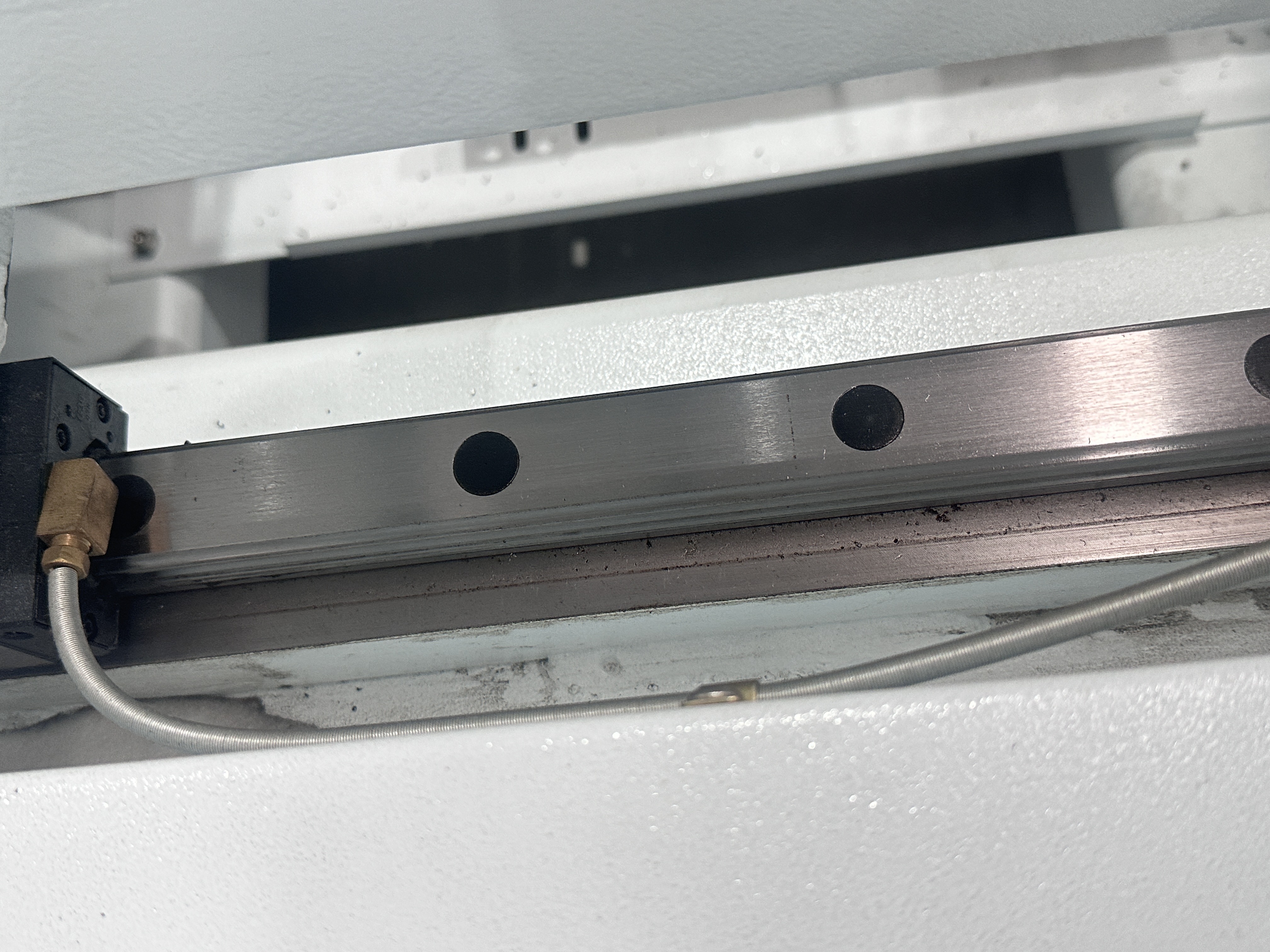

The equipment has three linear axes (X, Y, Z) and two rotary axes (A and B or C). The X, Y, and Z axes are equipped with Taiwan HIWIN brand roller linear guides and Japan Sumitomo precision hollow reducers to ensure the stability of heavy-duty cutting. At the same time, it adopts imported double-swing head spindles, which can achieve 360-degree fast and precise swing, so that the complex curved surface processing of the entire workpiece can be completed in a single process.

Automatic tool change:

The machine is equipped with an 8-position tool magazine to store a variety of tools, which enables seamless and automated tool change, optimizes production processes and effectively reduces machine downtime.

Spindle variety:

The machine is equipped with stable performance of its own brand spindle, and provides high-quality imported spindles such as Italy's Hiteco as an option.

Precision detection:

This CNC machining center uses laser interferometer for precision detection to ensure that the high precision of machining meets industry standards.

Stable structure:

The machine bed adopts welded steel structure with reinforcing ribs, and all parts are stress-relieved to ensure stability and reliability during precision machining.

Machine Application:

Aerospace:

Producing intricate components for aircraft, including engines, wings, and cabin features;

Automotive:
Crafting sophisticated parts for vehicles, encompassing powertrains, suspension systems, and vehicle interiors;

Medical:
Executing precise machining for the creation of medical instruments, artificial limbs, and dental apparatus;

Molds:
Producing detailed molds for various molding techniques, including injection and blow molding processes;

Woodworking:
Achieving high-precision cuts and designs in the production of furniture, built-in cabinets, and detailed architectural wood elements;

Rapid prototyping:
Expediting the prototyping process to allow for swift design iteration and improvement;

Nautical:
Fabricating complex marine components, such as vessel hulls, marine propulsion systems, and shipboard equipment;

Energy:
Producing components for wind and solar power generation technologies;

Packaging:
Developing intricate packaging machinery and mold designs.

Application Materials:

Composite materials:
including materials like carbon fiber (PCM, SMC, CFRTP such as PP/PC), carbon-carbon composites, and glass-reinforced plastics;

Plastics:
encompassing types such as ABS, PC, PP, PET, HDPE, and acrylic;

other materials:
Capable of processing high-density foams, woods, wood-simulated materials, stone, and additional non-metallic substances.
