Industrial 5 Axis CNC Center for Composite Structures

Production Description

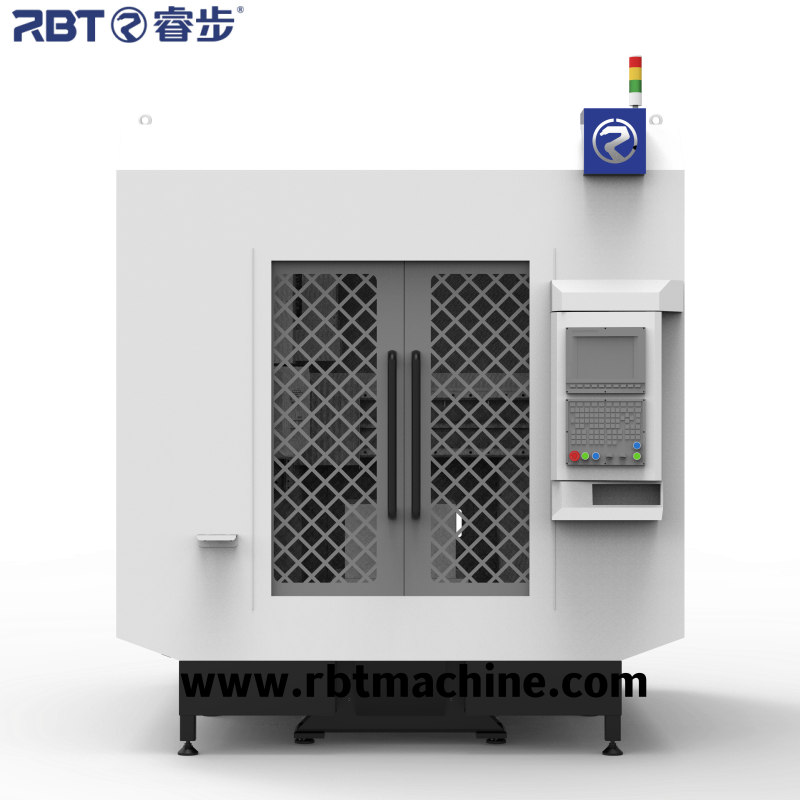

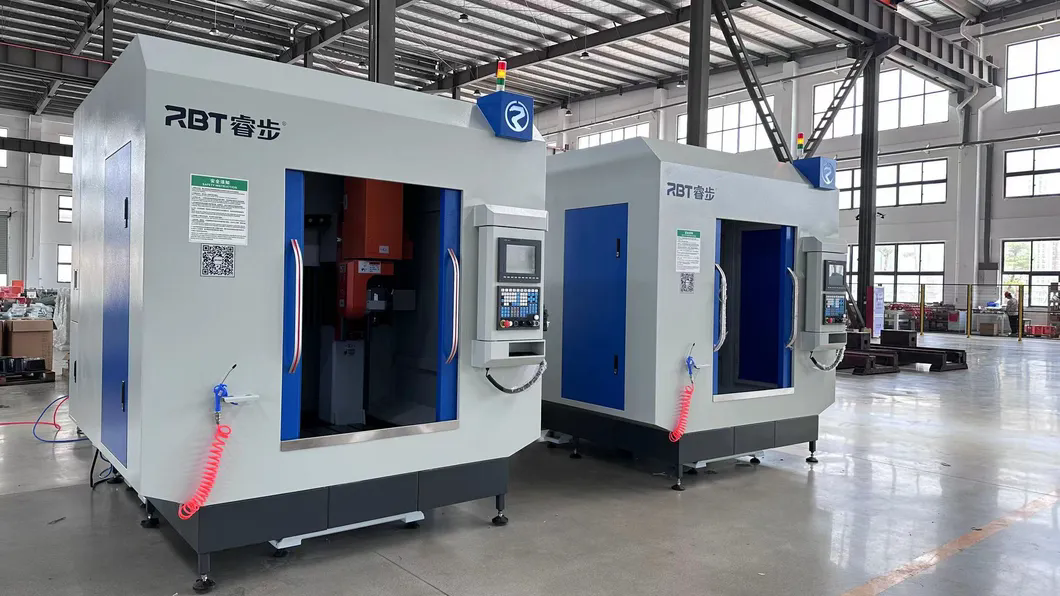

The fully enclosed non-metallic 5-axis CNC machine features a sealed, dust-proof chamber, ensuring

contamination-free processing of sensitive materials like composites and medical-grade plastics.

With synchronized 5-axis motion control, it delivers high-precision machining for complex geometries across materials such as carbon fiber, engineered

polymers, and industrial foams.

Machine Video

Production Features

1. The system adopts the SYNEc five-axis inkage CNc system,which can complete the production and processing of the entire complex surface of the workpiece inone process; single worktable and the protective room structure meet the safety protection and debris prevention during production; The floor drain dust collection devicecooperates with the high-performance dust collector to collect external processing debris:


2. Single worktable and the protective room structure meet the safety protection and debris prevention during production; The floor drain dust collection devicecooperates with the high-performance dust collector to collect external processing debris:

3. The work is easy to clamp and no special fixture is needed;

4. C, B-axis rotary processing can reduce the processing dead angle ofcomplex workpieces:

5. High processing precision, efficient and accurate positioning;

6. The equipment combines power,speed and precision,and can be equipped with multiple functions such as dust colection,automatic tool change and RTCP7. The actual configuration ofthe equipment is subject to the technical data.The machine travel can be customized according to the needs of customers.

7.


Product Parameters

1. Syntec five-axis linkage CNC system is used. The machine combines power, speed and precision, customer can request  other optional functions such as dust collection, automatic tool change, and RTCP.

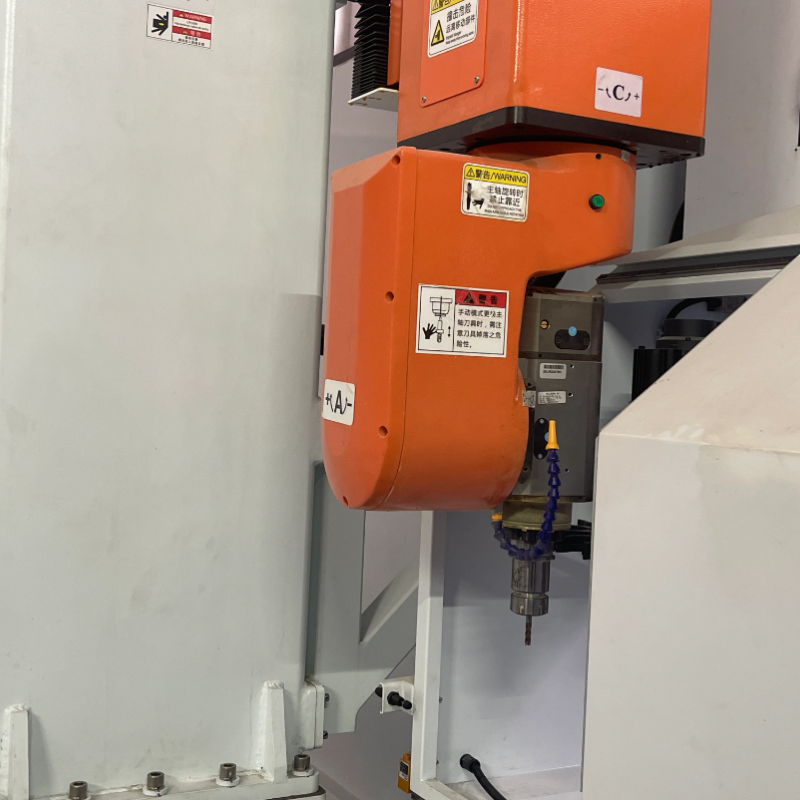

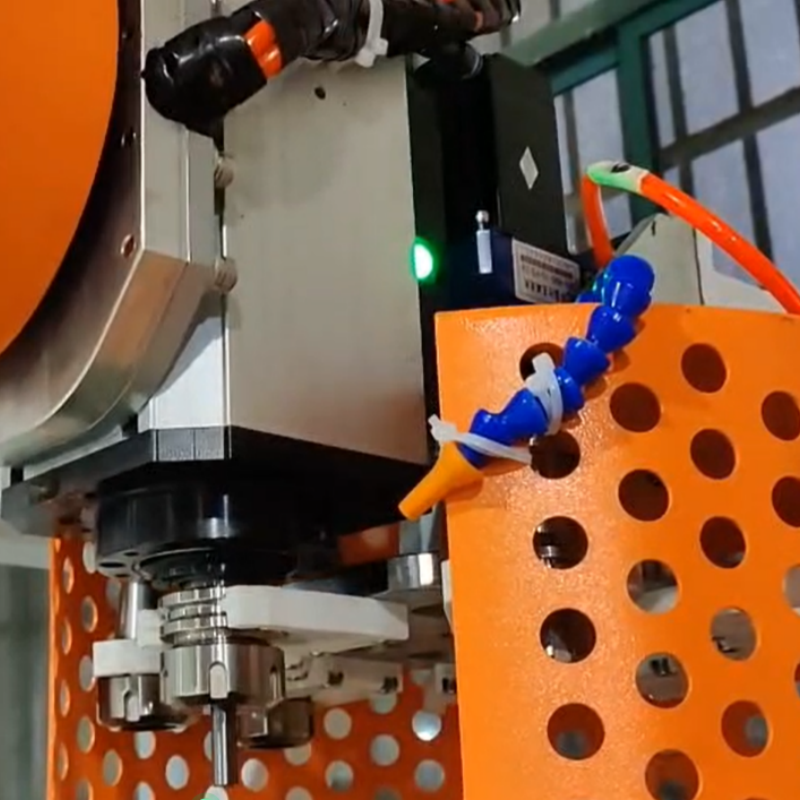

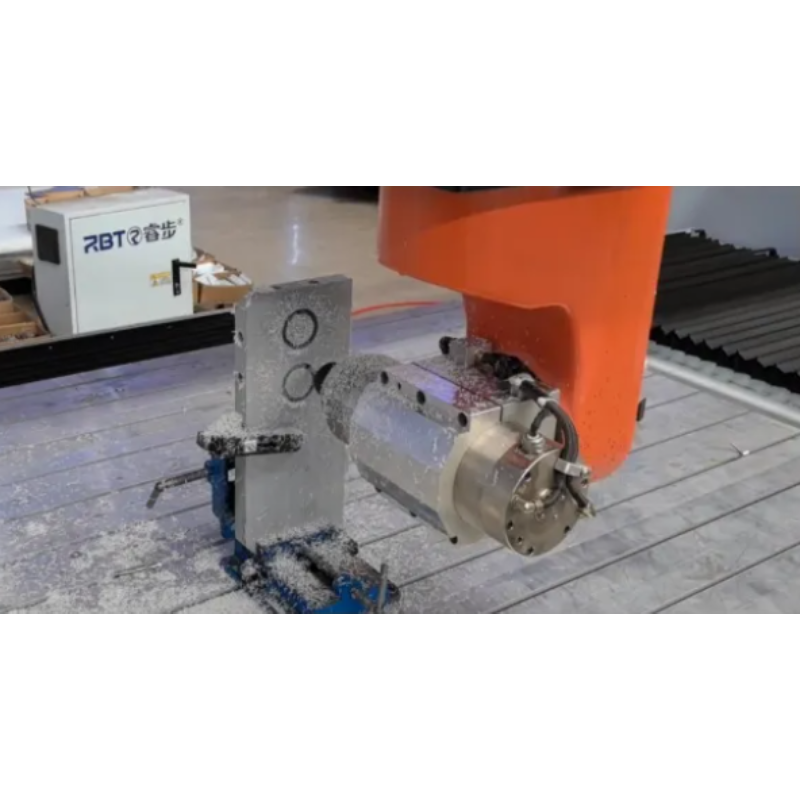

2.The milling head has 2 CNC continuous rotary coordinates: the 4th (C) axis and the 5th (B) axis, realizing linkage processing (including milling and hole rolling functions). Different brands of  high-speed machining spindle can be choosed such as Italy Hiteco.

3. The welded steel bed is adopted, the bed is solid, and the key parts are added with ribbed plates. The main material is Q235 rectangular tube, the wall thickness is 10mm, and the thickness of the connecting plate is not less than 20mm.The bed has undergone finite element analysis (FEA) and design, and all bed parts have been stress-relieved (non-vibration aging treatment) before machining, providing a rigid and stable foundation for the machine.

4. X/Y axis adopts Taiwan CSK double-row four-row ball slider linear guide;

The Z axis adopts Taiwan HIWIN double-row four-row roller slider linear guide;

X/Y/Z axis adopts Taiwan TBI precision screw rod；

The C/B axis adopts the Japanese Sumitomo high-torque zero-backlash hollow reducer.

5.The machine adopts the method of central oil supply, and adopts the method of automatic oil injection and lubrication for all mechanical moving parts such as screw rods and guide rails, which greatly improves the service life of the machine.

Materials Processing

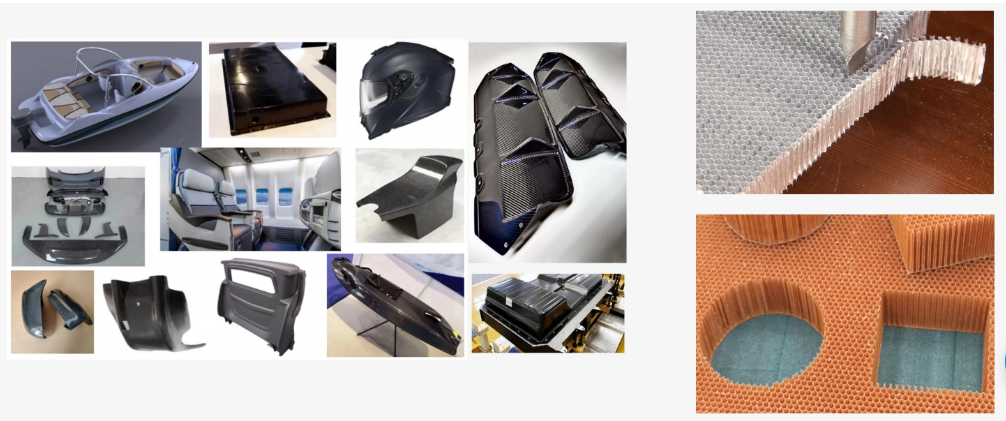

Composite materials: carbon fiber (PCM/RTM/SMC/LFT, etc.), glass fiber, carbon/carbon, etc.;
Plastics: ABS, PVC, PC, PP, PS, PE, PET, HDPE, PETG, Acrylic etc.;
Other non-metal material: high-density sponge, Styrofoam foam, wood, substitute wood, stone, plaster etc.

Machine Application

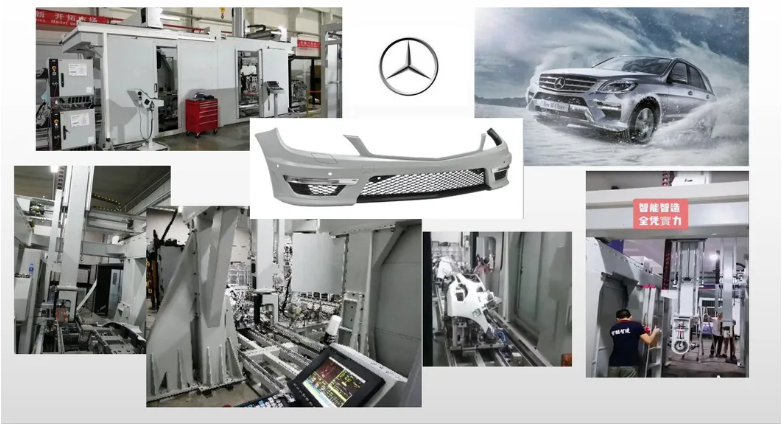

Mold manufacturing, composite material processing, and thick sheet thermoforming processing in industries such as aerospace, rail transit, automotive interior and exterior, sporting goods, medical beauty, white goods, handicrafts, and sanitary ware.
