Product Overview
The RBT 5 Axis CNC Machining Center is designed for precision machining of honeycomb sandwich panels, honeycomb cores, and advanced composite materials. Combining simultaneous 5-axis machining, automatic tool changing, and flexible workholding solutions, this industrial CNC machine enables accurate trimming, milling, drilling, and complex contour processing in a single setup.
Engineered for manufacturers working with lightweight structural components, the machine helps improve machining consistency, reduce manual repositioning, and streamline production workflows. Its customizable working area and integrated dust extraction system make it suitable for a wide range of industrial applications involving composite panels and honeycomb structures.
Whether you manufacture aerospace interior panels, railway components, marine structures, or industrial sandwich panels, RBT can provide customized CNC machining solutions based on your workpiece dimensions and production requirements.
The 5-axis machining system enables the processing of complex contours, angled edges, curved surfaces, and other intricate geometries. Multi-axis movement reduces the need for repeated clamping and repositioning, helping improve machining consistency and production efficiency.
With spindle speeds of up to 24,000 RPM, the machine supports precision machining of suitable honeycomb and composite materials. Cutting tools and machining parameters can be selected according to the material structure and required surface quality.
The automatic tool changer allows the machine to switch between compatible cutting tools without manual tool replacement at every machining stage. This helps simplify multi-process operations and reduce non-cutting time.

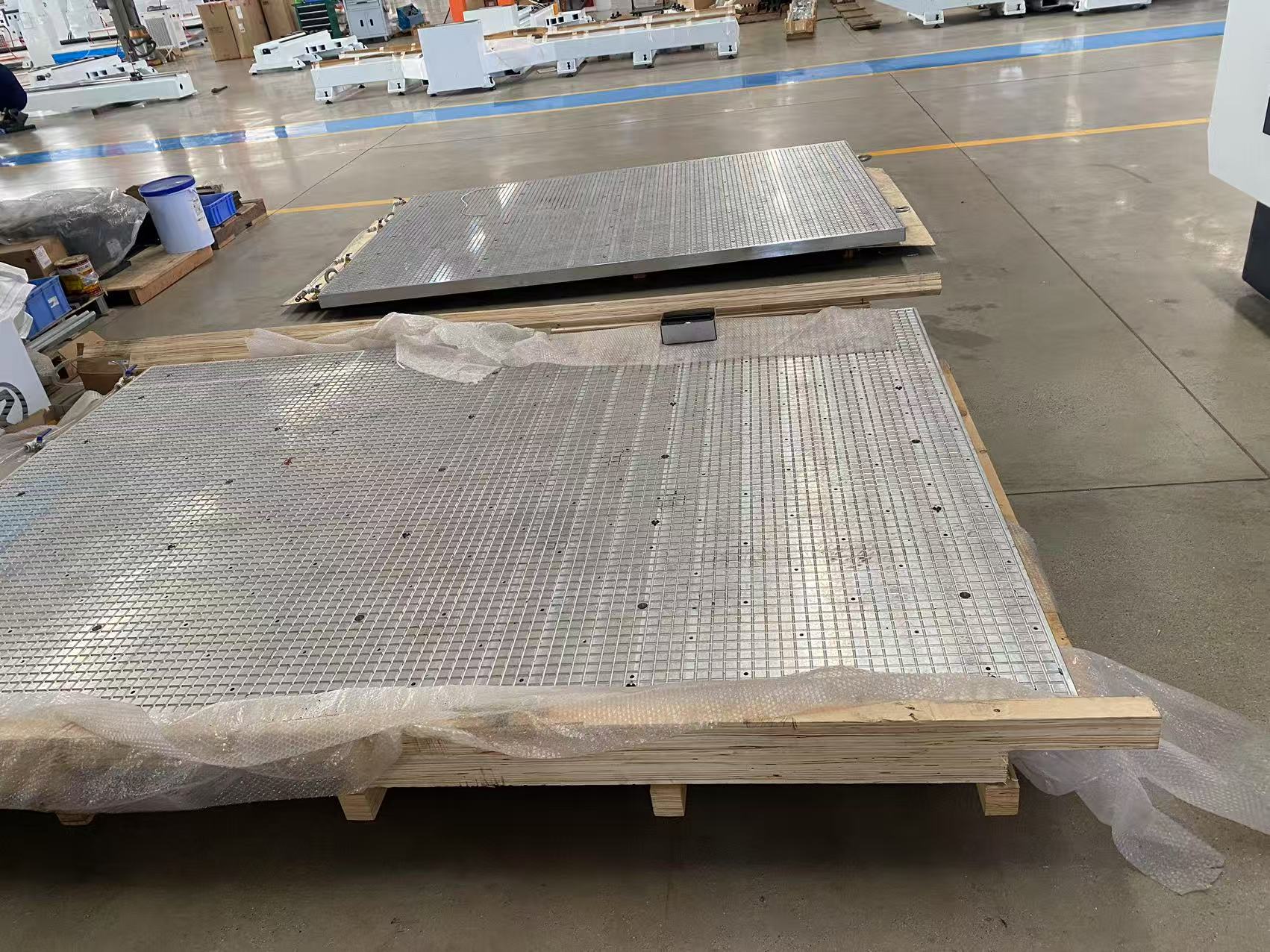

The vacuum table and optional customized fixtures help secure lightweight sandwich panels and honeycomb workpieces during machining. Workholding configurations can be tailored to the material, workpiece size, and machining process.
The dust extraction system helps collect composite dust, honeycomb debris and chips generated during machining. Combined with the enclosed machine structure, it supports a cleaner and more organized production environment.
The X, Y, and Z axis travels can be customized according to workpiece dimensions and machining requirements. This flexibility allows manufacturers to configure the machine for different panel sizes and production applications.
The Syntec CNC control system supports automated machining workflows. CAD/CAM compatibility and post-processor requirements can be confirmed according to the customer's software environment and machining process.
The RBT 5 Axis CNC Machining Center is designed for machining suitable honeycomb structures, composite panels, and lightweight industrial components.
Applicable materials include:
Aluminum honeycomb cores and panels
Paper honeycomb cores and panels
Nomex® and aramid paper honeycomb cores
PP and polycarbonate honeycomb materials
Carbon fiber reinforced polymer (CFRP)
Glass fiber reinforced polymer (GFRP)
Composite honeycomb sandwich panels with aluminum, CFRP, or GFRP face sheets
Material compatibility depends on the workpiece structure, adhesive system, cutting tools, and machining parameters. Sample testing is recommended for demanding applications.
Typical industrial applications:
Aerospace: Aircraft interior panels, lightweight structural panels, and composite components
Railway and Metro: Interior partitions, flooring panels, and door panels
Marine and Shipbuilding: Sandwich panels, bulkheads, and lightweight structural components
Transportation: Truck body panels, trailer panels, and refrigerated vehicle structures
Industrial and Cleanroom Construction: Wall panels, ceiling panels, and lightweight enclosure components
Technical Parameter
| Model | RB-H6-4232-Z15 |
| X axis working travel | 4200mm (can be customized based on customer product size) |
| Y axis working travel | 3200mm (can be customized based on customer product size) |
| Zaxis working travel | 1500mm (can be customized based on customer product size) |
| C axis | ±540° |
| A axis | ±120° |
| Input Voltage | AC380V±15% |
| Total Power | 55KW ( depends on spindle power) |
Q1: What materials can this 5-axis CNC machining center process?
It is designed for suitable aluminum and paper honeycomb cores, Nomex® and aramid honeycomb materials, and composite sandwich panels with carbon fiber, fiberglass. Final compatibility should be confirmed through application assessment and sample testing.
Q2: Can the working area be customized?
Yes. The X, Y, and Z axis travels can be customized according to the dimensions and machining requirements of your workpieces.
Q3: What machining operations can the machine perform?
Depending on the machine configuration and cutting tools, it can perform trimming, milling, drilling, and complex contour machining.
Q4: What is the maximum spindle speed?
The spindle speed can reach up to 24,000 RPM, depending on the selected spindle configuration.
Q5: Can the machine process large sandwich panels?
The machine can be configured for large workpieces. Please provide the panel length, width, thickness, material structure, and required machining operations so we can evaluate a suitable configuration.
Q6: Does RBT provide installation and after-sales support?
Online and on-site support options are available. Installation, commissioning, training, and service arrangements can be confirmed according to the project scope and destination.
