RB-F10-4057--Z09
RBT
8465990000

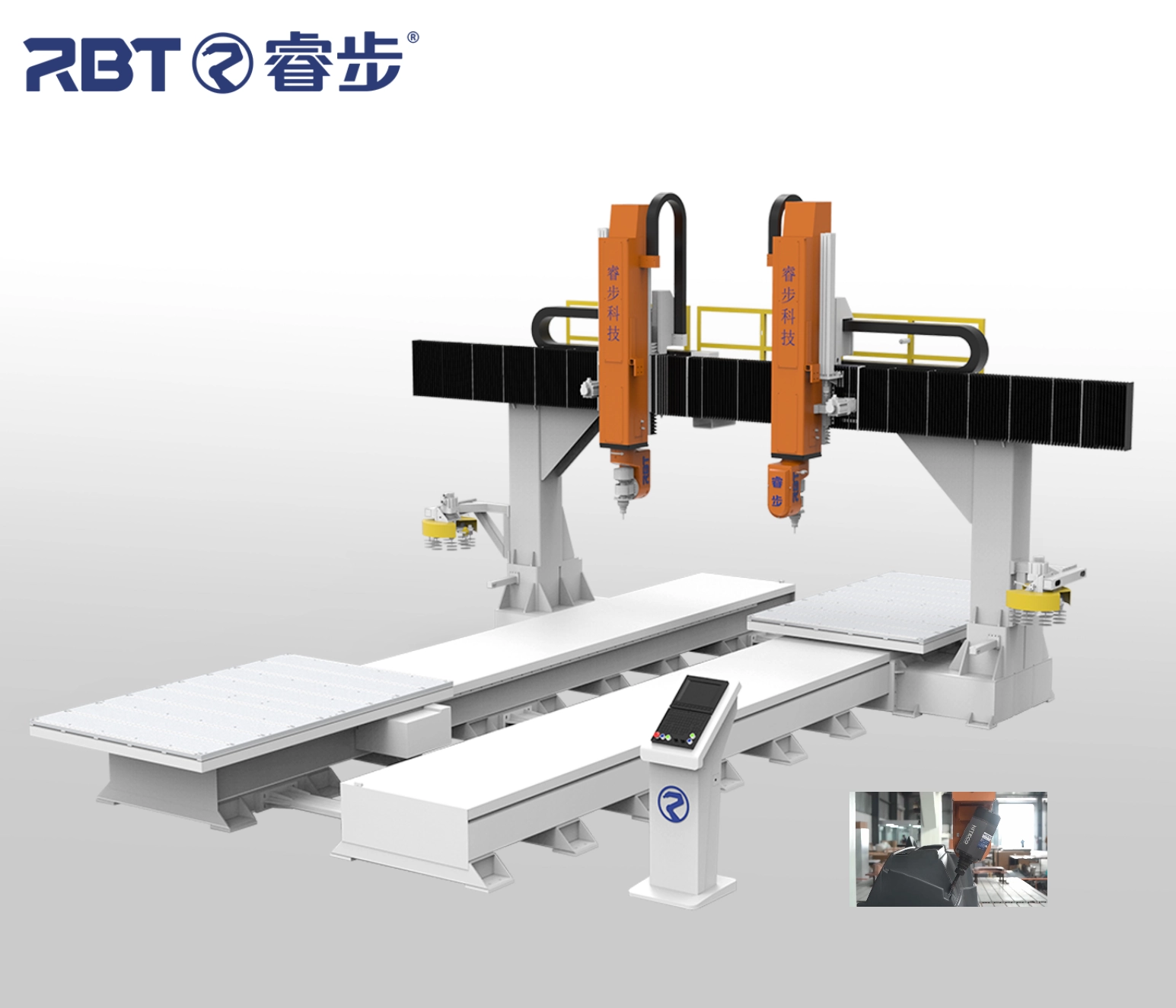

RBT Multi-Head 5 Axis CNC Router
1.The system adopts the SYNTEC five-axis linkage CNC system, which can complete the production and processing of the entire complex surface of the workpiece in one process;
2. The work is easy to clamp and no special fixture is needed;
3.C, B-axis rotary processing can reduce the processing dead angle of complex workpieces;
4.High processing precision, efficient and accurate positioning;
5.The equipment combines power, speed and precision, and can be equipped with multiple functions such as dust collection, automatic tool change and RTCP
6.Two worktables can be combined into a group and two machining heads interlock for large parts processing. Two machining heads can do the processing at the same time which can greatly improve the processing efficiency of symmetrical parts. It can also independently process different workpieces with a single worktable and a single machining head, and the switch of the worktable can carry out uninterrupted step processing of two different products, which is equivalent to having two five-axis machining centers at the same time,
7.The actual configuration of the equipment is subject to the technical data , The machine travel can be customized according to the needs of customers.
Product parameter
| Product name | Non-mental two head 5 axis machining center |
| Screw | Taiwan TBI |
| Linear Guide | Taiwan CSK |
| Rack | Liangchi |
| Servo | Inovance |
| Control System | Taiwan SYNTEC |
| Electrical components | France* Schneider |
Spindle | RBT |

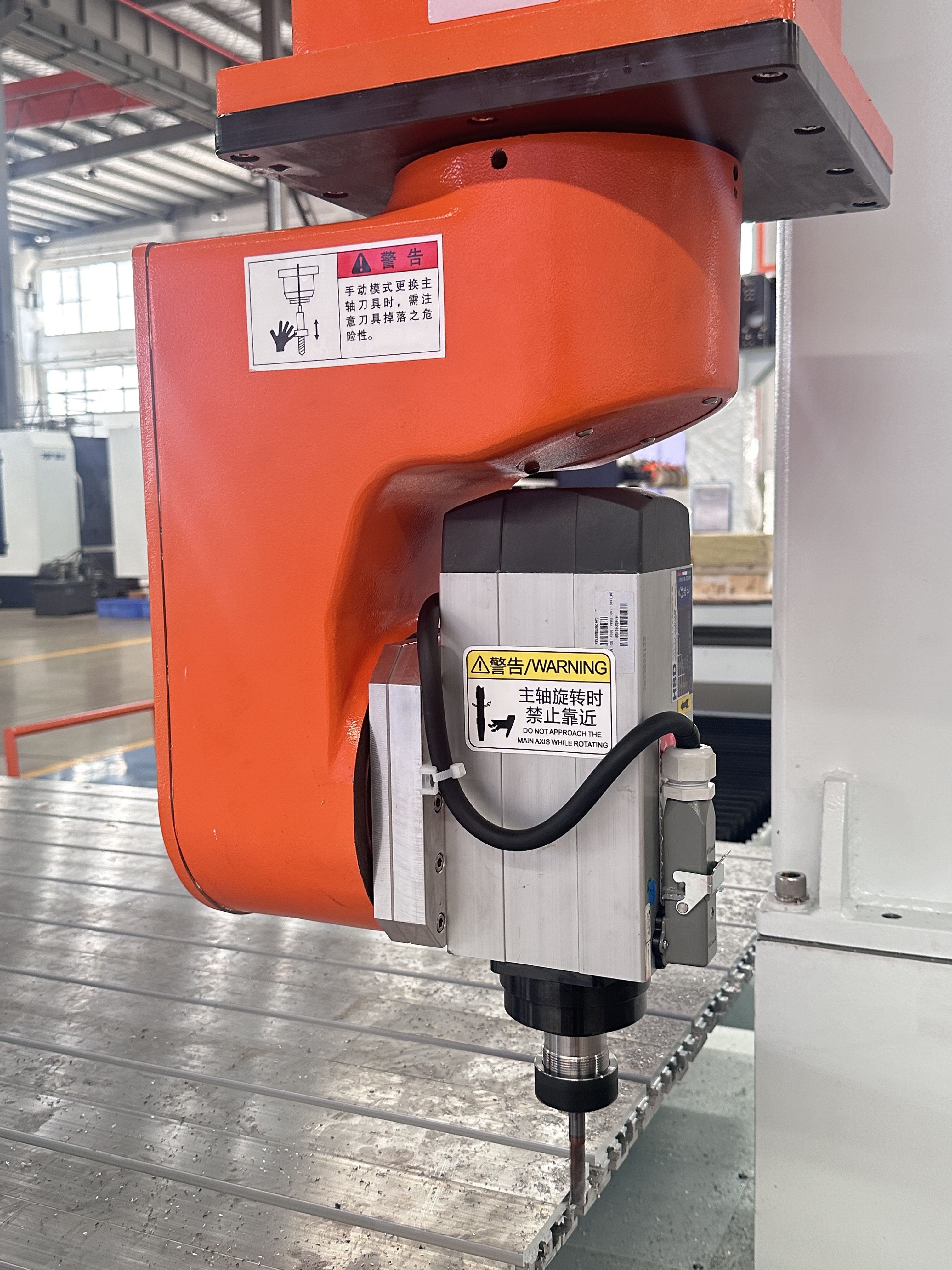

| Spindle power | 8.5KW/24000rpm/water cooling |
| Frequency converter | Sinovo |

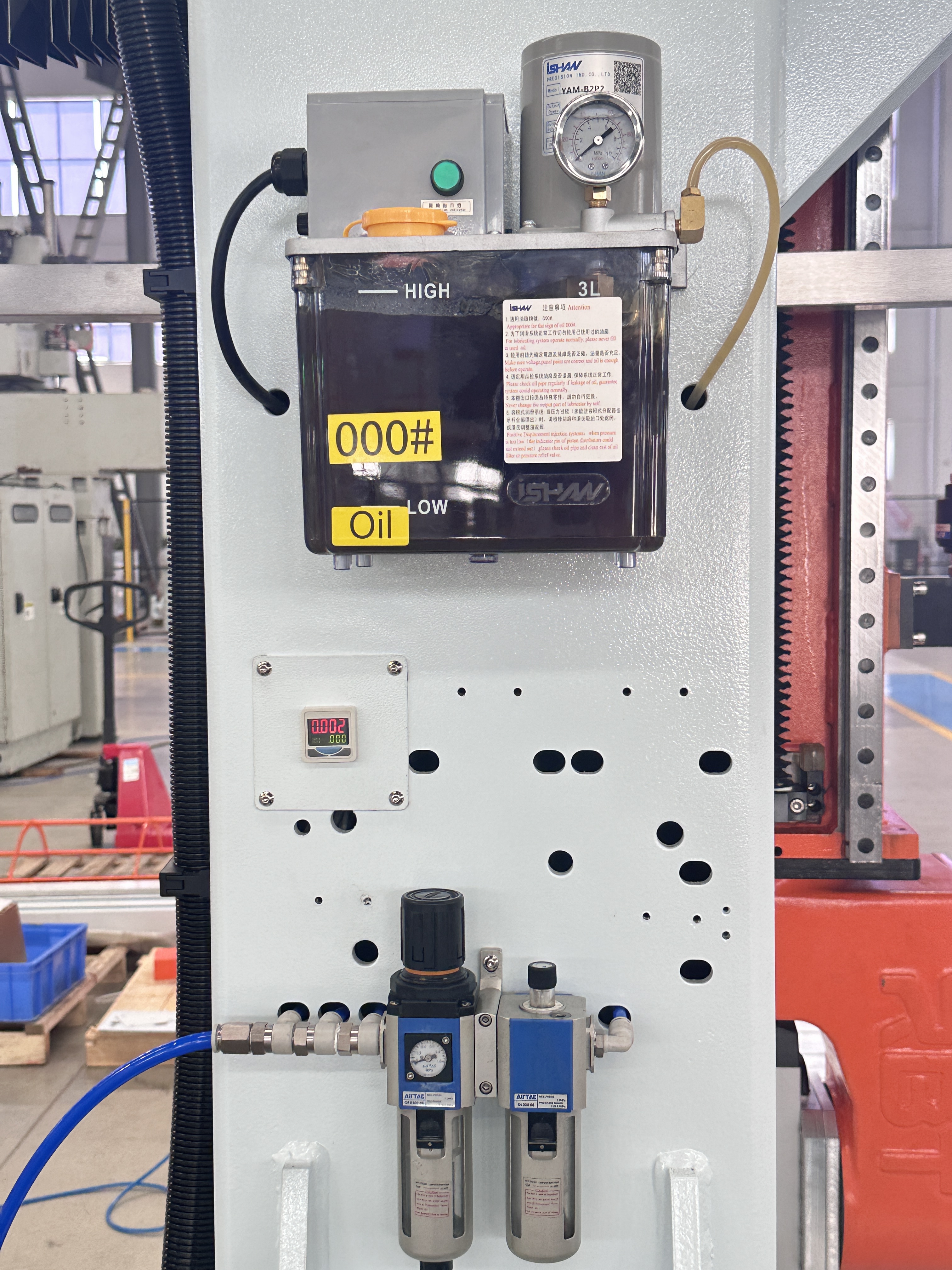

| Pneumatic Components | Taiwan AirTAC |
| X axis reducer | Japan* SHIMPO |
| B-axis rotation angle | ±120° |
| C-axis rotation angle | ±540° |
| Machine tool repeatability (within 300mm) | ±0.05mm |
| Total power | 19.5-31KW(Subject to the actual equipment) |
| Frequency | L9000*W6800*H4250mm |
| Weight | 15000KG |
COMPANY PROFILE
 |
|  |
Fujian RBT Intelligent Co., Ltd. is an integrated intelligent equipment solution provider integrating R & D, manufacturing, sales and technical services, specializing in the customization of five-axis machining center manufacturers, engaged in this industry for more than 15 years. The main products are gantry type, truss type, fully enclosed 5/6 axis machining center, double head 5 axis, 6 axis machining center and all kinds of non-standard automatic intelligent production lines.

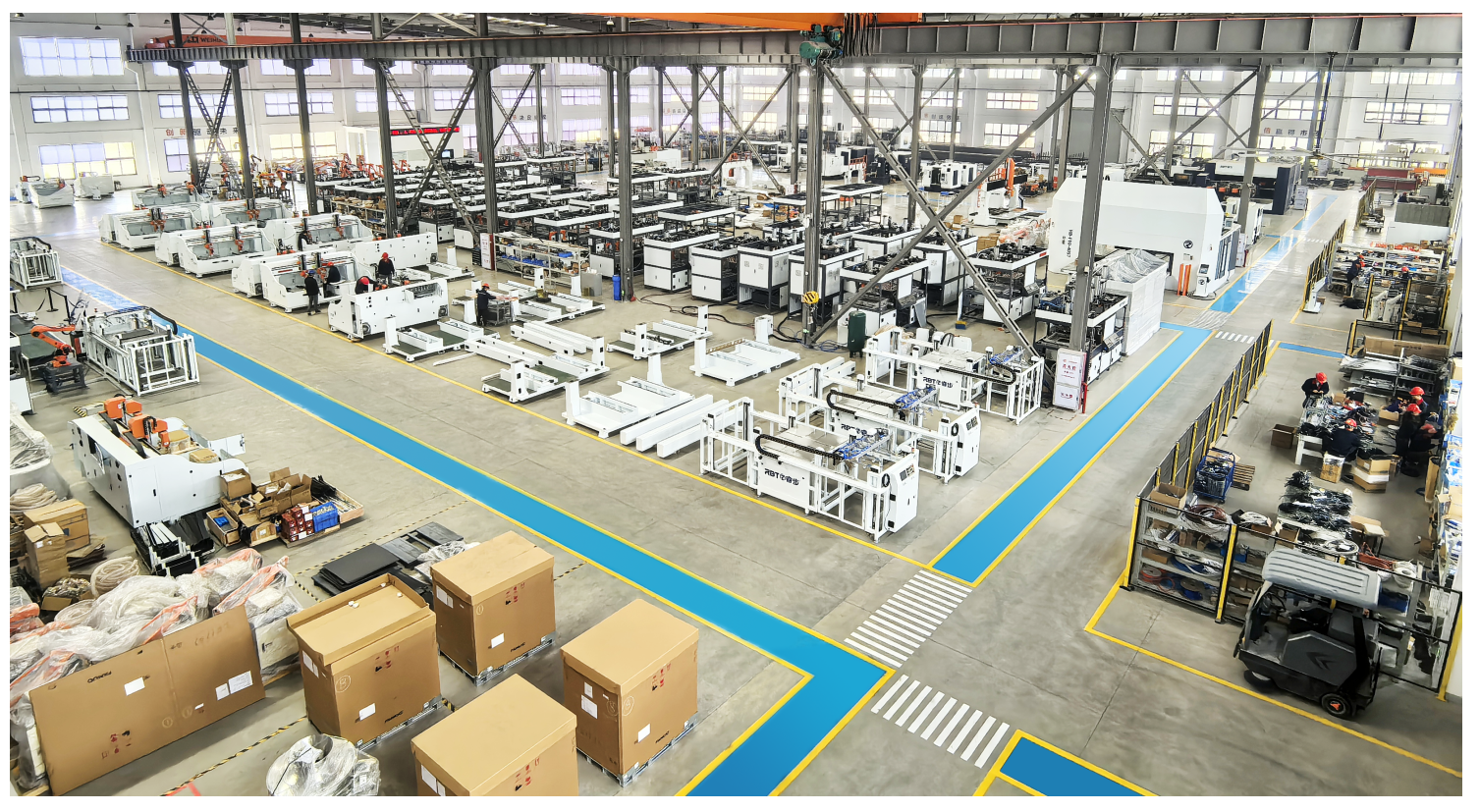

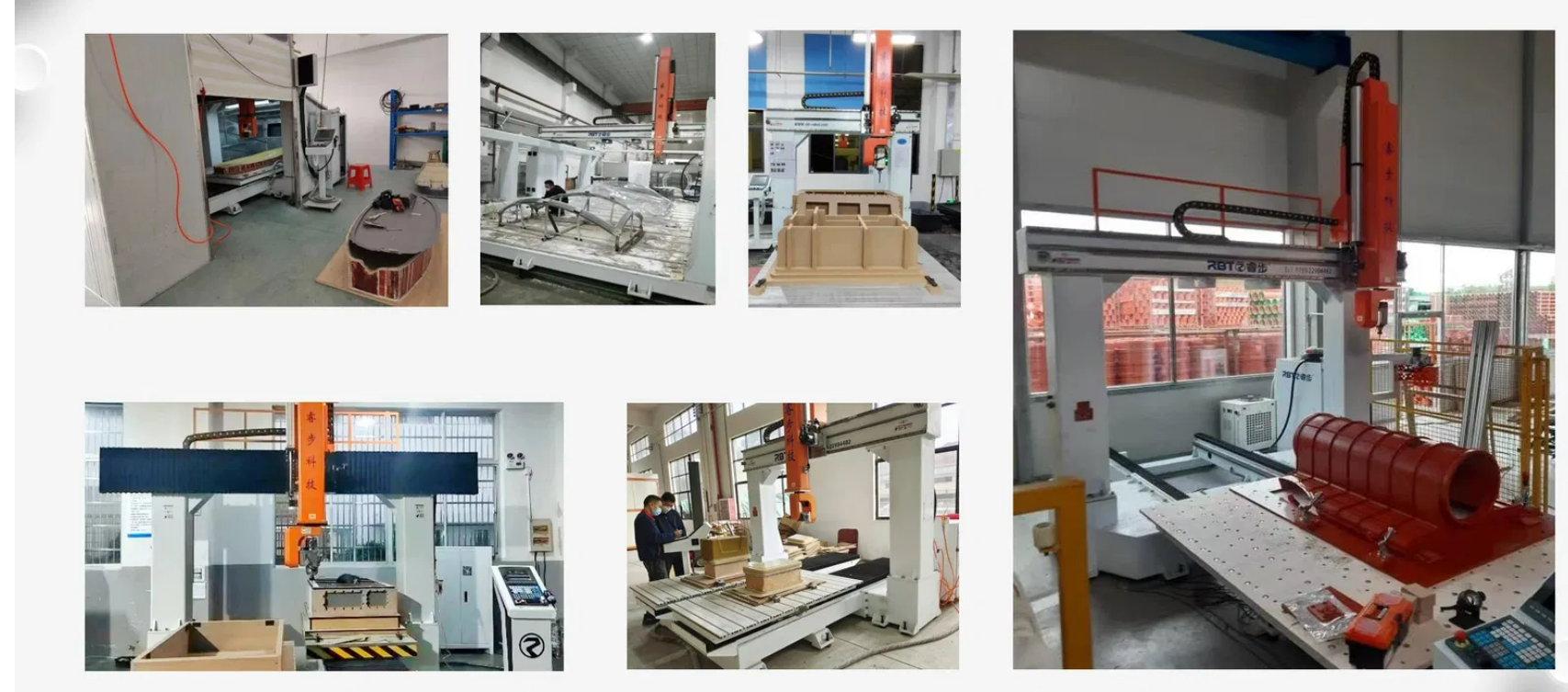

Product Show
FAQ
1. Why choose us?
As a manufacturer, RBT industrial is committed to offer not only products with high quality and performance and
competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
3. What payment terms can you accept?
Normally 50% deposit is required in advance, 50% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do you have?
All products meet with the ISO9001 Quality System and have acquired CE,ISO certificate.
5. How about your delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can you provide OEM service?
RBT industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
7: How about your after sales service?
A:We will arrange our technical staffs to your factory to install machine and teach you how to operate it. During the current special period, we will offer all support online via video 24h per day. Before shipment, we will test machine from and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together.
